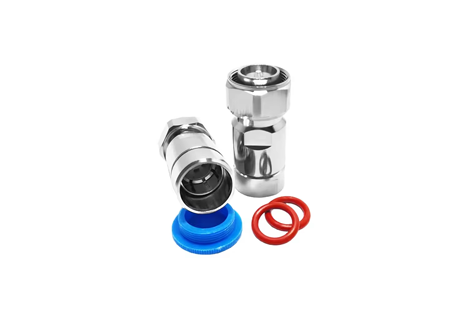

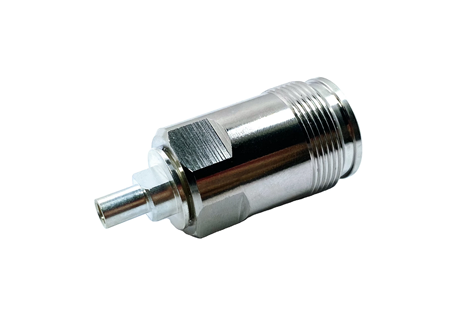

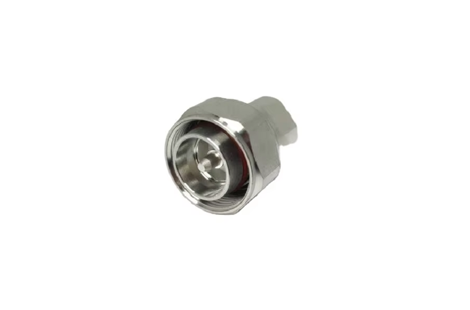

4.3/10,MiNi DIN Connector is a small RF coaxial connector suitable for low PIM (passive intermodulation) requirements in modern high-frequency communication systems such as 4G/5G base stations and distributed antenna systems. Its name comes from the size parameters of the inner diameter of the outer conductor (10mm) and the diameter of the insulator (4.3mm). Suitable for modern mobile communication infrastructure, especially for miniaturized and weight sensitive applications; Industrial equipment: RF module connections such as high-frequency filters and combiners; Testing instrument: signal interface adaptation for high-precision RF testing equipment.
4.3/10,MiNi DIN Connector is a small RF coaxial connector suitable for low PIM (passive intermodulation) requirements in modern high-frequency communication systems such as 4G/5G base stations and distributed antenna systems. Its name comes from the size parameters of the inner diameter of the outer conductor (10mm) and the diameter of the insulator (4.3mm). Suitable for modern mobile communication infrastructure, especially for miniaturized and weight sensitive applications; Industrial equipment: RF module connections such as high-frequency filters and combiners; Testing instrument: signal interface adaptation for high-precision RF testing equipment.
| Plating | Nickel/gold |
| Material | Brass |
| Insulator | PTFE/Plastic |
| ROHS | IS09001:2015 |
| Pin contact | Brass |
| Risilent contact | Beryllium copper |
| O-ring seling | 6146 silicon |
| Elastic contact | Tin brass with gold or sliver plated |
| Produce equipment | CNC |
| Connector type | smc male rg316 |
1. 4.3/10 connector has excellent electrical performance and mechanical stability, core performance parameters.
2. Electrical characteristics:
Frequency range: Standard type supports DC-6GHz, enhanced type extends to DC-12GHz;
Standing wave ratio (VSWR): ≤ 1.15 (DC-4GHz), ≤1.25 (4-6GHz);
Insertion loss: ≤ 0.05 × √ f dB (f in GHz).
3. Mechanical and environmental adaptability:
Voltage withstand level: 2500V rms (test voltage), 1000V rms (working voltage);
Protection level: IP67 (unplugged state), suitable for outdoor base stations;
Working temperature: -40 ℃ to+125 ℃.
