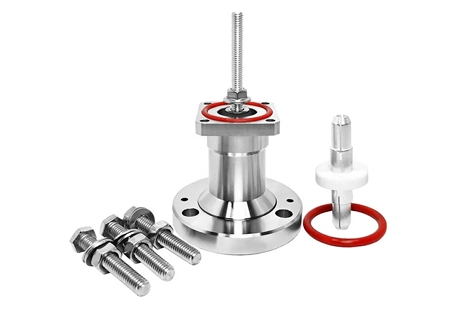

The EIA series coaxial connectors are available in EIA 7/8", EIA 1 5/8", and EIA 3 1/8" versions, all of which are suitable for RF applications. Designed to support foam or air dielectric cables, they consist of a body, mounting flanges with various bolt rings, and usually have interchangeable/removable central conductor "bullets". Due to its flexibility in design, EIA connectors are usually not recognized as male or female connectors, as connectors can typically be configured as either. EIA connectors can be used for high-power applications such as directional couplers, coaxial cables, power amplifier outputs, and communication tower and antenna interconnections.
The EIA series coaxial connectors are available in EIA 7/8", EIA 1 5/8", and EIA 3 1/8" versions, all of which are suitable for RF applications. Designed to support foam or air dielectric cables, they consist of a body, mounting flanges with various bolt rings, and usually have interchangeable/removable central conductor "bullets". Due to its flexibility in design, EIA connectors are usually not recognized as male or female connectors, as connectors can typically be configured as either. EIA connectors can be used for high-power applications such as directional couplers, coaxial cables, power amplifier outputs, and communication tower and antenna interconnections.
Impedance and frequency: The standard impedance is 50 Ω, with a frequency range covering DC-5GHz and a voltage standing wave ratio as low as 1.07:1 27.
Materials and processes: The main body is made of brass and polytetrafluoroethylene (PTFE) materials, with nickel/silver electroplating on the surface, which combines corrosion resistance and high-frequency performance.
Environmental Protection: Some models support IP67 weather resistance rating, suitable for harsh environments
High power scenarios: such as communication towers, antenna interconnections, antenna feed systems for decimeter wave TV transmitters/differential switches, and high-power attenuator systems.
Equipment adaptation: commonly used for directional couplers, coaxial cables, power amplifier output ports, and can be transferred to other interfaces such as N-type through adapters.
