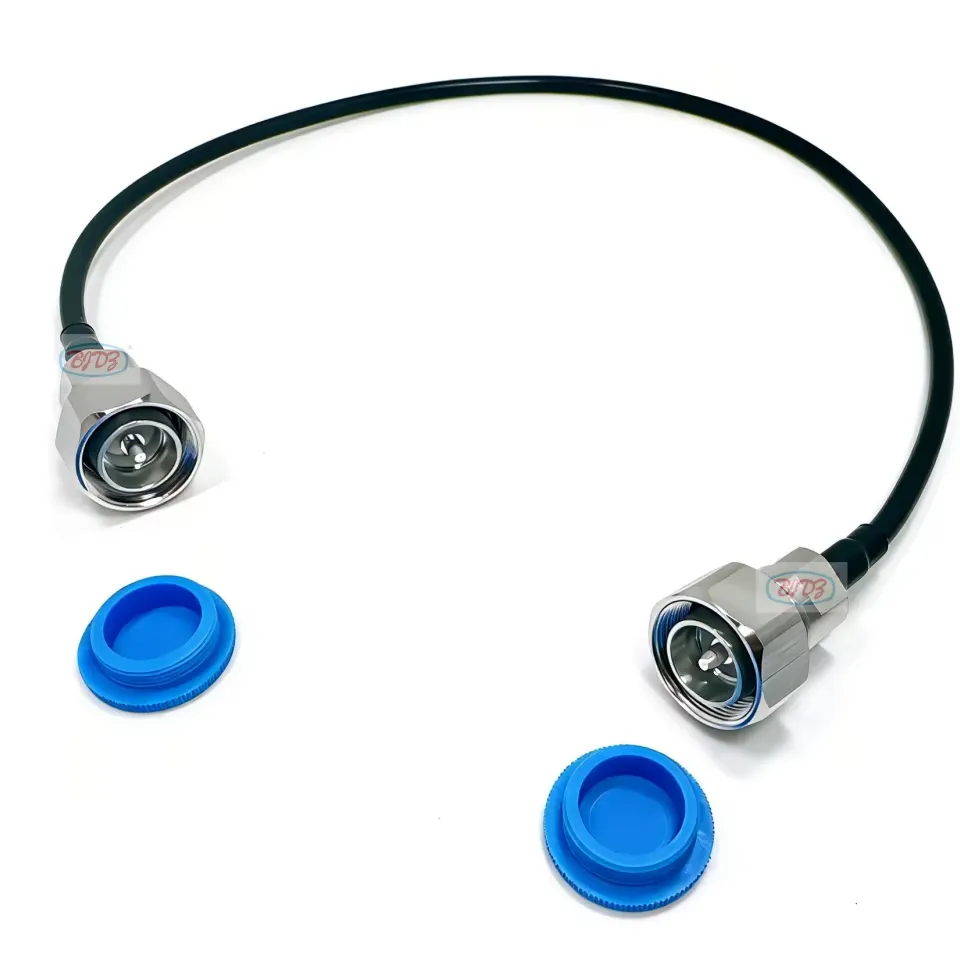

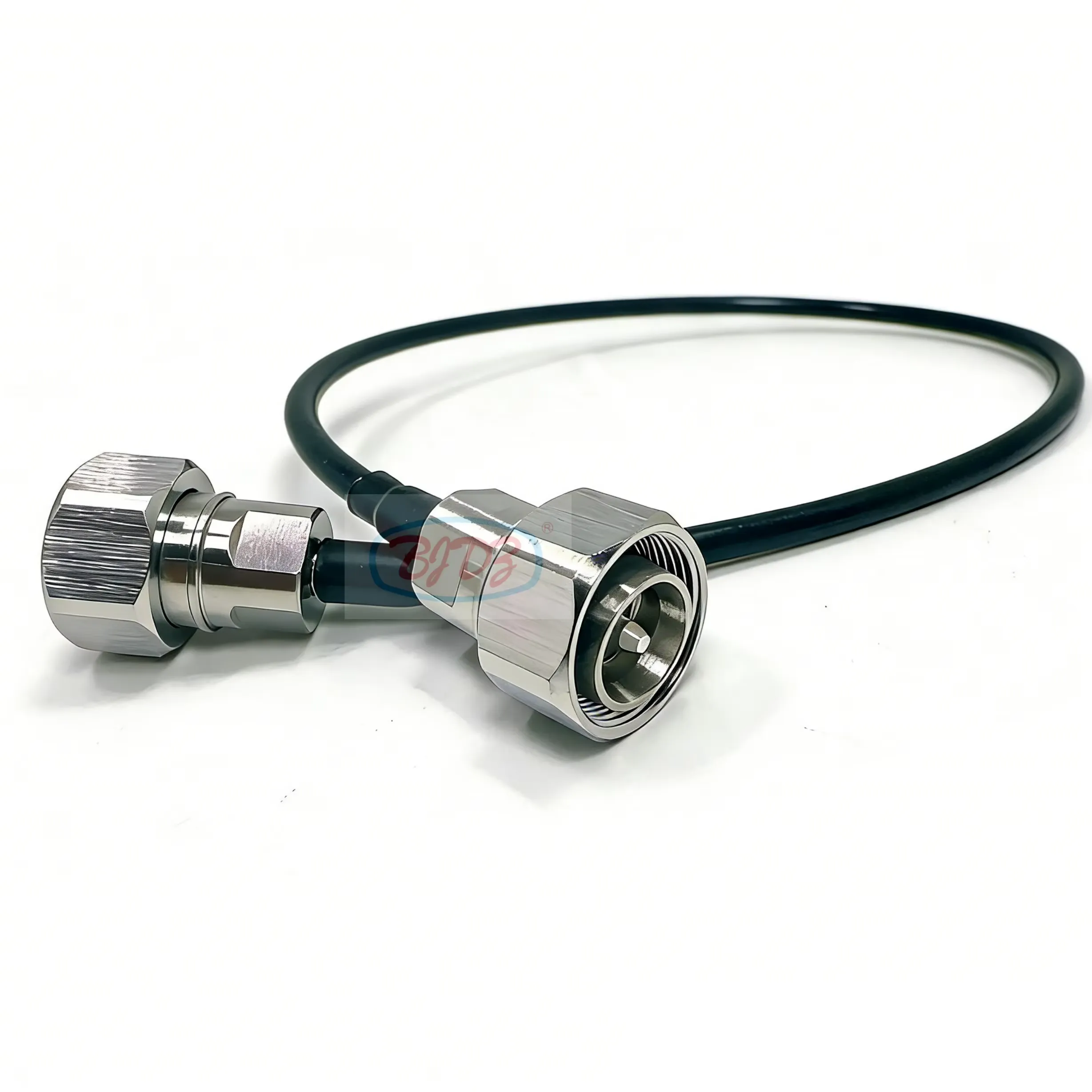

Introducing our high-performance 4.3-10 Male to Male RF Jumper Cable Assembly, engineered to deliver seamless signal transmission for a wide range of communication applications. This 0.5m precision-crafted cable features 4.3-10 male connectors on both ends, ensuring compatibility with modern RF systems that demand high reliability and low signal loss.
Key attributes
| Conductor Material | Copper |
| Insulation Material | PTFE |
| Jacket | PVC |
| Number of Conductors | 1 |
| Model Number | 4.3-10 Male to 4.3/10 Male for RG58 Cable Assembly |
| Cable Type | RG58 Cable |
| Brand Name | BJDZ |
| Place of Origin | Jiangsu, China |
| Application | RF |
| Plating | Nickel or Tri-Metal plated |
| Material | Copper |
| Insulator | PTFE/Plastic |
| Certificate | CE/FCC/ROHS/ISO9001:2015 |
| VSWR | 1.15+0.02f |
| Vibration | 98m/S2 (10~2000Hz), 10g |
| Frequency Range (MHz) | DC-16GHz |
| Max Voltage | 335V max |
| Temperature range | -55~+155°C (PE Cable -40~+85°C) |
| Input Impendence (ohm) | 50 |
| V.S.W.R | 1.15+0.02f |
| Vibration | 98m/S2 (10~2000Hz), 10g |
| Insertion Loss | ≤ 0.15dB/6GHz |
| Withstand Voltage | 1000V rms |
| Working Voltage | 335Vr.m.s at sea level |
| Insulation resistance | ≥5000mΩ |
| Max Input Power (w) | 50 |
| Contact resistance | Center Contact ≤3mΩ |
| Center conductor retention force | 450N |
| Durability | ≥ 500(cycles) |
| Contact resistance | CenterContact ≤3mΩ Outer Contact ≤2.5mΩ |
| Voltage Standing Wave Ratio | Straight ≤ 1.15/6GHz Right angle ≤ 1.25/6GHz |
Packaging and delivery
| Selling Units | Single item |
| Single package size | 111X10X10 cm |
| Single gross weight | 1.00kg |
Lead time
| Quantity (pieces) | Lead time (days) |
| 1 - 1000 | 10 |
| 1001 - 5000 | 15 |
| 5001 - 10000 | 25 |
| > 10000 | To be negotiated |
price
| 50 - 1999 pieces | $3.25 |
| 2000 - 4999 pieces | $2.92 |
| >= 5000 pieces | $2.85 |
Universal Compatibility: This assembly is expertly designed to be terminated with a variety of cable types, including RG58, RG223, LMR195, LMR240, and H155. This versatility makes it an ideal choice for system integrators and maintenance teams working with diverse infrastructure.
Premium 4.3-10 Connectors: The 4.3-10 interconnection standard offers superior performance over traditional connectors. It features a 75% larger outer contact diameter compared to N-connectors, ensuring a more robust connection, higher durability, and improved shielding effectiveness, which is crucial for minimizing intermodulation distortion.
Optimized Length: With a standardized 0.5m (500mm) length, this jumper is perfectly sized for indoor patching, equipment interconnection, and antenna alignment where space is limited.
OEM & Customization Support: We understand that one size does not fit all. As a factory-direct supplier, we offer comprehensive OEM services. Whether you need custom lengths, specific cable types not listed, or private labeling, our team is equipped to handle your unique requirements.
Parameter | Value |
Configuration | 4.3-10 Male Plug to 4.3-10 Male Plug |
Cable Options | RG58, RG223, LMR195, LMR240, H155 |
Length | 0.5m (Custom lengths available upon request) |
Impedance | 50 Ohm |
Frequency Range | DC to 3 GHz (Varies based on cable type) |
VSWR | ≤ 1.15 (Typical) |
Insertion Loss | Low loss characteristics (Dependent on selected cable) |
Durability | 500+ mating cycles |
Environmental | RoHS compliant, UV-resistant jacket options |
This jumper cable assembly is a critical component in various industries:
Telecommunications: Ideal for connecting transceivers, base stations, and antenna ports.
Broadcasting: Used in radio and TV transmission systems for reliable signal feed.
Test & Measurement: Provides a stable link for laboratory testing and field diagnostics.
Military & Aerospace: The rugged design of the 4.3-10 connector suits demanding environments.

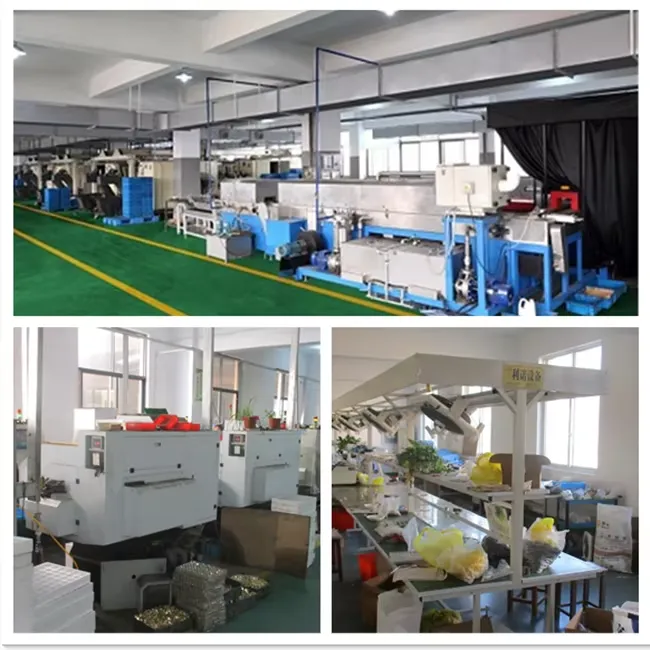

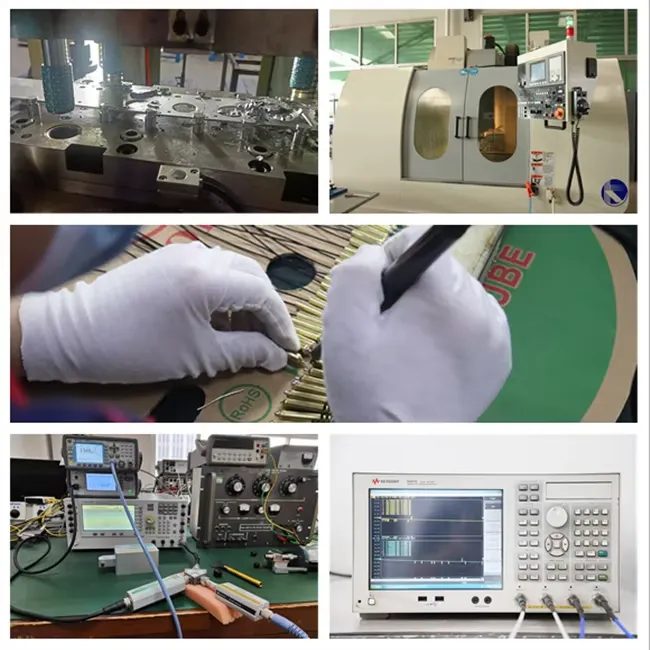

At our facility, we adhere to strict ISO quality control standards. Every cable assembly undergoes 100% inspection for continuity, insulation resistance, and VSWR performance. By offering direct factory supply, we eliminate middlemen, ensuring you receive competitive pricing without compromising on the quality and reliability your projects demand.
For standard 0.5m assemblies or custom OEM orders, please contact our sales team. We support custom lengths, specific color coding, and logo printing to meet your branding needs.
