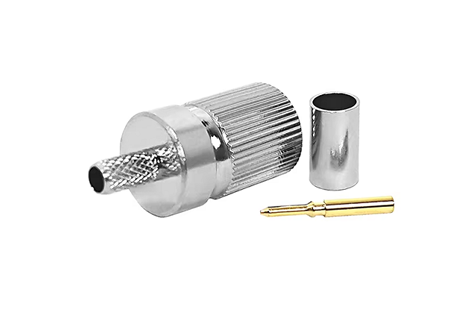

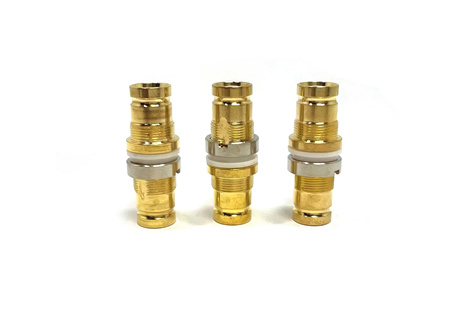

1.6/5.6(L9) Connector is a type of RF coaxial connector that has become a key interconnect component in the fields of communication and industrial electronics due to its compact structure, multi impedance compatibility, and industrial grade reliability. Communication equipment: widely used in digital distribution frames and base station RF modules. Industrial field: used for testing instruments and broadcasting and television transmission equipment. Special scenario: Suitable for complex wiring environments.
1.6/5.6(L9) Connector is a type of RF coaxial connector that has become a key interconnect component in the fields of communication and industrial electronics due to its compact structure, multi impedance compatibility, and industrial grade reliability. Communication equipment: widely used in digital distribution frames and base station RF modules. Industrial field: used for testing instruments and broadcasting and television transmission equipment. Special scenario: Suitable for complex wiring environments.
| Plating | Nickel/gold |
| Material | Brass |
| Insulator | PTFE/Plastic |
| ROHS | IS09001:2015 |
| Pin contact | Brass |
| Risilent contact | Beryllium copper |
| O-ring seling | 6146 silicon |
| Elastic contact | Tin brass with gold or sliver plated |
| Produce equipment | CNC |
| Connector type | smc male rg316 |
1. 1.6/5.6 Connector basic parameter characteristic impedance: 75 Ω, suitable for digital communication and broadcasting and television signal transmission.
2. Frequency range: DC-1GHz, meeting the needs of most medium to short distance RF signals.
3. Interface type: Supports L9 series threaded connections (M9 × 0.5 thread specification), with some models adopting a push in self-locking structure.
4. Performance index withstand voltage level: The maximum working voltage is 330V (effective value), and the withstand voltage test reaches 1000V (sea level).
5. Contact resistance: ≤ 4m Ω between inner conductors and ≤ 2m Ω between outer conductors;
6. Environmental adaptability: Temperature range:- 40 ° C to+85 ° C, anti vibration: 100m/s ² (10-500Hz).
