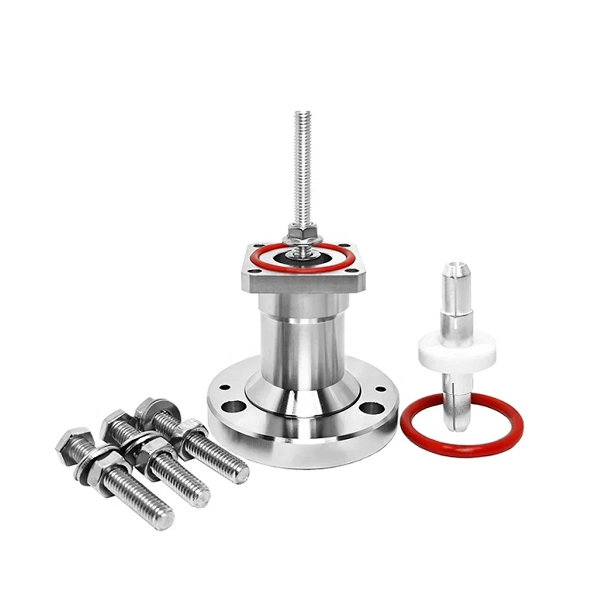

The 7/8 EIA Type connector/adapter covers a standard DC–5 GHz frequency range with VSWR ≤ 1.15 and a nominal 50 Ω impedance, featuring a low-loss design for efficient high-frequency transmission. It offers dielectric strength ≥ 600 V RMS and low contact resistance (inner ≤ 1. mΩ, outer ≤ 2.5 mΩ). The 7/8 EIA four-hole flange interface enables fast connection to coaxial cables, filters, and related equipment. Silver-plated brass contacts improve conductivity and corrosion resistance, while a PTFE insulator ensures stable dielectric performance at high temperatures. The metal shell provides up to IP67 protection, and installation supports soldering or threaded locking, including right-angle/bend adapter options.
| Place of Origin | Jiangsu, China |
| Brand Name | RFVOTON |
| Model Number | 1-5/8 eia to 7/16 din female |
| Material | Brass |
| ROHS | ISO9001 |
| O-ring seling | 6146 silicon |
| Produce equipment | CNC |
| Match cable | 1-5/8 eia |
| Flange style | 1-5/8 eia flange |
| Insulator | PTFE |
| Selling Units | Single item |
| Single package size | 10×10×15 cm |
| Single gross weight | 1.800 kg |
Environmental adaptability, working temperature: -40 ℃ to+85 ℃ (typical value), suitable for industrial grade environments. Protective performance and corrosion resistance: Coating treatment (such as silver plating and nickel plating) enhances oxidation resistance. Anti vibration: The threaded locking structure ensures stability in high vibration scenarios. Compatible equipment: suitable for 7/8 inch foam feeder cable, coaxial converter, filter and other RF components. Typical scenarios: Communication base stations, radar systems, power transmission of industrial automation equipment, and encoder signal connections.
