Organization: Cable components help achieve clean and orderly wiring, simplify maintenance and troubleshooting work, and save time and resources.
Customization: One of the prominent features of cable components is their strong adaptability. Customized cable components can meet specific requirements, allowing integration of various connectors, lengths, and shielding options. Cable components can be customized to meet specific requirements for integration.
Key attributes
| Conductor Material | Copper |
| Insulation Material | PTFE |
| Jacket | PVC |
| Number of Conductors | 1 |

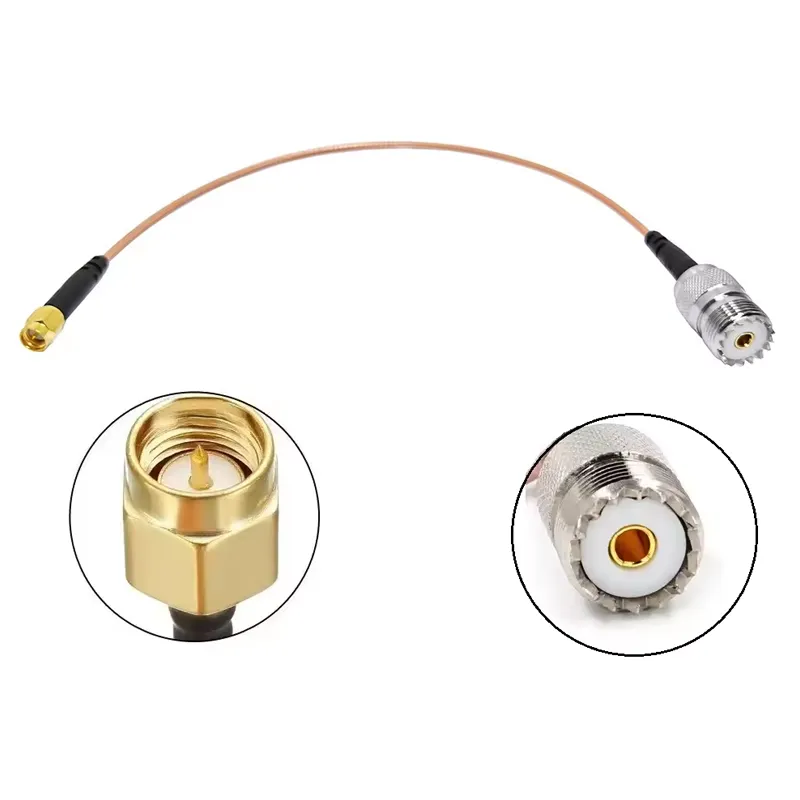

| Model Number | SMA Male to SO239 Female for RG316 Cable Assembly |
| Cable Type | RG316 cable |
| Brand Name | BJDZ |
| Place of Origin | Jiangsu, China |
| Application | RF |
| Plating | Nickel |
| Material | Copper |
| Insulator | PTFE/Plastic |
| Certificate | CE/FCC/ROHS/ISO9001:2015 |
| Length | 10CM |
| Frequency Range (MHz) | DC-12GHz |
| Max Voltage | 335V max |
| Temperature range | -55~+155°C (PE Cable -40~+85°C) |
| Input Impendence (ohm) | 50 |
| V.S.W.R | 1.15+0.02f |
| Vibration | 100m/s2 (10~500Hz) |
| Withstand Voltage | 2500V r.m.s at sea level |
| Working Voltage | 1000Vr.m.s at sea level |
| Insertion Loss | ≤ 0.24dB/6GHz |
| Insulation resistance | ≥5000mΩ |
| Max Input Power (w) | 50 |
| Contact resistance | Center Contact ≤3mΩ |
| Center conductor retention force | 450N |
| Durability | ≥ 500(cycles) |
| Contact resistance | CenterContact ≤1mΩ Outer Contact ≤1mΩ |
| Voltage Standing Wave Ratio | Straight ≤ 1.15/6GHz Right angle ≤ 1.25/6GHz |
Packaging and delivery
| Selling Units | Single item |
| Single package size | 11X5X11 cm |
| Single gross weight | 0.050 kg |
Lead time
| Quantity (pieces) | Lead time (days) |
| 1 - 1000 | 10 |
| 1001 - 5000 | 15 |
| 5001 - 10000 | 25 |
| > 10000 | To be negotiated |
Price
| 20 - 499 pieces | $1.98 |
| 500 - 4999 pieces | $1.69 |
| 5000 - 9999 pieces | $1.62 |
| >= 10000 pieces | $1.58 |
We have strict requirements for product materials, performance, and design. We use advanced computer simulation algorithms and structural optimization to improve RF solutions, and have accumulated years of structural solutions and unique manufacturing processes to further optimize RF indicators. We often conduct pre design manufacturing and cost analysis, and customize corresponding products according to different customer needs, demanding the strictest standards for our own product quality.
Connecting the world and co creating the future is the enduring mission of Binjiang Electronics. We strive to build a fully connected world through signal interconnection products, solutions, and services, continuously creating value for customers and society.
