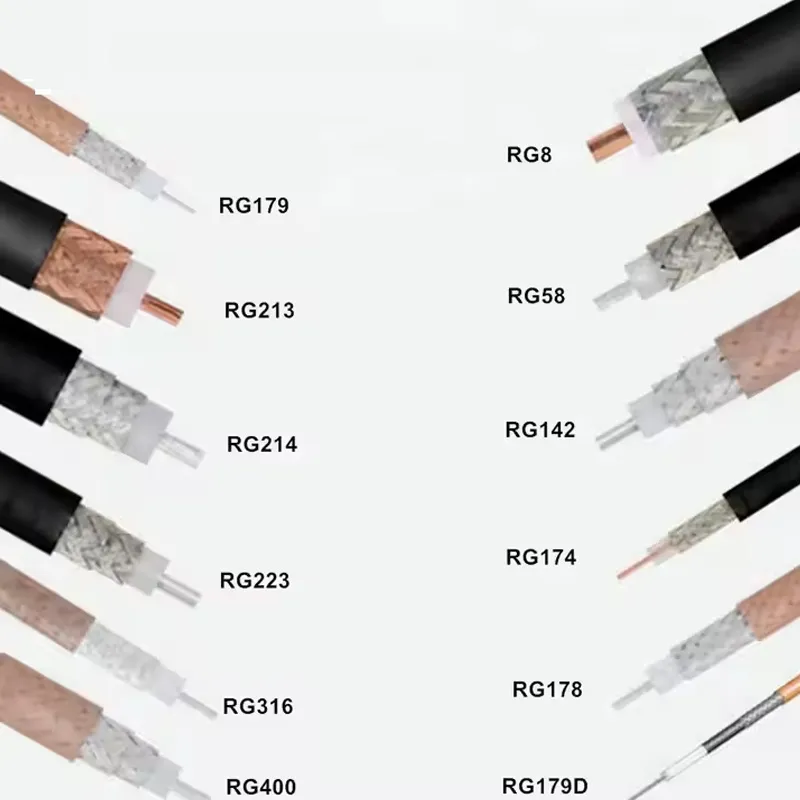

RF Coaxial Cable is a cable specifically designed for efficient transmission of high-frequency (RF) signals, typically in the frequency range of kHz to GHz. Its core structure is "coaxial", consisting of a central inner conductor, a layer of insulating medium (dielectric), an outer conductor (shielding layer), and an outer sheath. This structure can effectively confine the electromagnetic field between the inner and outer conductors, and has the characteristics of low loss, high shielding, and anti-interference.
| Structure parameters | ||
| Item | Material | Diamenter (mm) |
| Inner Conductor | Silver plated copper wire | 7*0.203 |
| Dielectric | PTEF | 2.95 |
| Outer Conductor | Double layer silver plated copper wire weaving | 3.95 |
| Jacket | FEP | 4.95 |
| Performance parameters | ||
| Capacitor | 105pF/m | |
| Impedance | 50ohm | |
| Transmission rate | 70% | |
| Maximum operating voltage | 1.4KVrms | |
| Maximum operating frequency | 12400MHz | |
| Working temperature range | -55～+200℃ | |
| Bending radius | 25mm | |
| ROHS/CE/FCC | YES | |
| Frequency | 100MHz | 0.144dB/m |
| 400MHz | 0.295dB/m | |
| 1000MHz | 0.482dB/m | |
Our company has a group of high-precision and advanced professional RF technology developers, and a deep understanding of RF technology theory and application is the core part of current technology.
We have strict requirements for product materials, performance, and design. We use advanced computer simulation algorithms and structural optimization to improve RF solutions, and have accumulated years of structural solutions and unique manufacturing processes to further optimize RF indicators. We often conduct pre design manufacturing and cost analysis, and customize corresponding products according to different customer needs, demanding the strictest standards for our own product quality.
