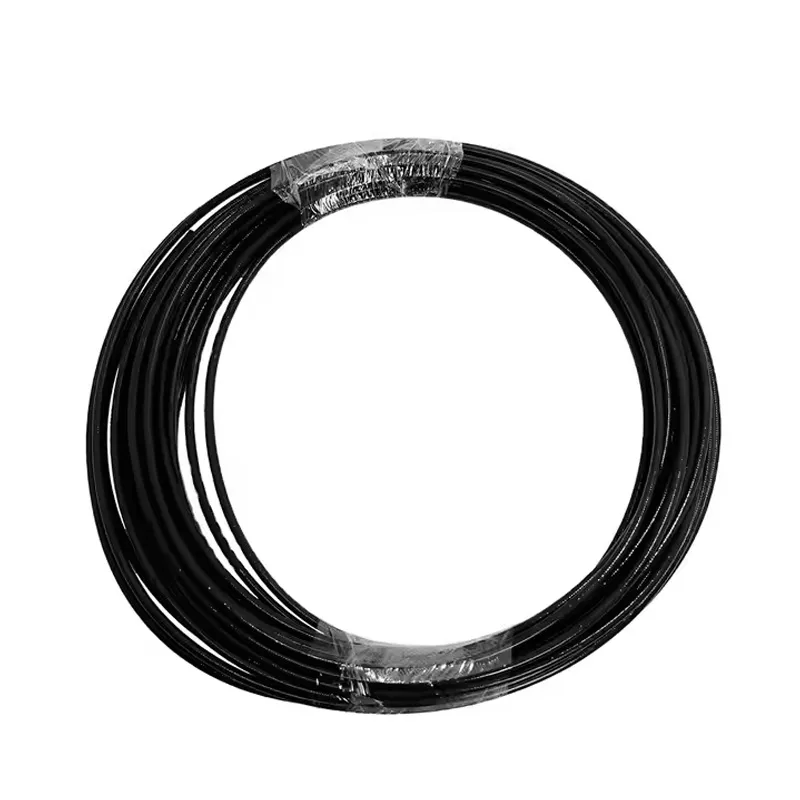

RG-141 is a high-performance 50 ohm semi-rigid coaxial cable, with the core advantages of excellent shielding provided by its silver plated copper tube outer conductor, low loss and wide temperature performance brought by PTFE dielectric, and mechanical properties that can be precisely formed and maintain shape. It is an ideal choice for key RF connections in fields such as microwave, aerospace, defense, and high-precision testing and measurement, especially surpassing its "brother" model RG-142 in compact space applications.
| Structure parameters | ||
| Item | Material | Diamenter (mm) |
| Inner Conductor | copper wire | 7*0.94 |
| Dielectric | PE | 2.95 |
| Outer Conductor | Single layer bare copper wire weaving | Nom.3.53 |
| Jacket | PVC | 4.83 |
| Performance parameters | ||
| Capacitor | 96.5pF/m | |
| Impedance | 50ohm | |
| Transmission rate | 70% | |
| Maximum operating voltage | 1.9KVrms | |
| Maximum operating frequency | 8MHz | |
| Working temperature range | -55～+250℃ | |
| Bending radius | 25mm | |
| ROHS/CE/FCC | YES | |
| Frequency | 100MHz | 0.13dB/m |
| 400MHz | 0.26dB/m | |
| 1000MHz | 0.42dB/m | |
