Organization: Cable components help achieve clean and orderly wiring, simplify maintenance and troubleshooting work, and save time and resources.
Team R&D Strength: The company integrates independent product technology development and application, attaches importance to independent intellectual property rights, always adheres to independent R&D and continuous innovation, continuously strengthens its own technology investment, and provides professional and reliable products and supporting services for the RF communication industry.
| Key attributes | |
| Conductor Material | Copper |
| Insulation Material | PTFE |
| Jacket | PVC |
| Number of Conductors | 1 |

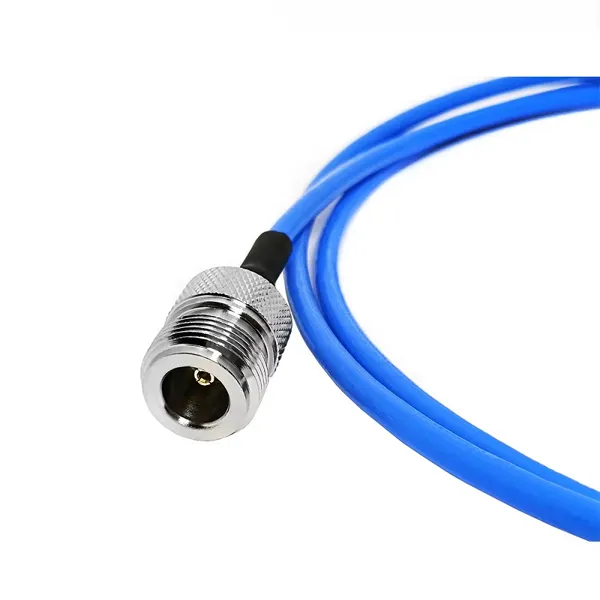

| Model Number | N Type male to N Type Female RG402 |
| Brand Name | BJDZ |
| Place of Origin | Jiangsu, China |
| Application | RF |
| Plating | Nickel |
| Material | Copper |
| Insulator | PTFE/Plastic |
| Certificate | CE/FCC/ROHS/ISO9001:2015 |
| Frequency Range (MHz) | DC-18GHz |
| Max Voltage | 335V max |
| Input Impendence (ohm) | 50 |
| V.S.W.R | ≤1.20+0.003f |
| Insertion Loss | ≤ 0.24dB/6GHz |
| Withstand Voltage | 2500V r.m.s at sea level |
| Working Voltage | 1000Vr.m.s at sea level |
| Temperature Range | -55~+155°C (PE Cable -40~+85°C) |
| Insulation resistance | ≥5000mΩ |
| Max Input Power (w) | 50 |
| Vibration | 100m/S2 (10~500Hz), 10g |
| Contact resistance | Center Contact ≤3mΩ |
| Center conductor retention force | 450N |
| Durability | ≥ 500(cycles) |
| Contact resistance | CenterContact ≤1mΩ Outer Contact ≤1mΩ |
| Voltage Standing Wave Ratio | Straight ≤ 1.15/6GHz Right angle ≤ 1.25/6GHz |
