Versatile 90° Right Angle RF Adapter for Critical Telecommunication Systems
This high-performance 90° angled cable assembly features a diverse range of connector options, including N Type, UHF SO-239 (PL259), 4.3-10, MINI DIN, and 7/16 DIN Male/Female configurations, designed to meet the connectivity demands of complex RF installations. Engineered for 1/2" Superflexible cable, this assembly ensures exceptional bendability and signal fidelity, ideal for space-constrained environments such as data centers, antenna systems, military equipment, and broadcasting infrastructure.
Constructed with precision-machined connectors and premium-grade materials, this adapter offers low passive intermodulation distortion (PIM) and superior electrical performance. The 1/2" cable’s ultra-flexible design allows tight bends without compromising signal integrity, while the robust jacketing ensures durability in harsh conditions. Whether for 5G deployments, defense applications, or industrial IoT, this assembly provides reliable connectivity across a wide frequency range.
Key attributes
| Conductor Material | Copper |
| Insulation Material | PTFE |
| Jacket | PVC |
| Number of Conductors | 1 |
| Model Number | 1/2" Superflexible Cable Assembly |
| Cable Type | 1/2 Superflex Cable |
| Brand Name | BJDZ |
| Place of Origin | Jiangsu, China |
| Application | RF |
| Plating | Nickel or Tri-Metal plated |
| Material | Copper |
| Insulator | PTFE/Plastic |
| Certificate | CE/FCC/ROHS/ISO9001:2015 |
| VSWR | 1.15+0.02f |
| Vibration | 98m/S2 (10~2000Hz), 10g |
| Frequency Range (MHz) | DC-6GHz |
| Max Voltage | 335V max |
| Temperature range | -55~+155°C (PE Cable -40~+85°C) |
| Input Impendence (ohm) | 50 |
| V.S.W.R | 1.15+0.02f |
| Vibration | 98m/S2 (10~2000Hz), 10g |
| Insertion Loss | ≤ 0.15dB/6GHz |
| Withstand Voltage | 1000V rms |
| Working Voltage | 335Vr.m.s at sea level |
| Insulation resistance | ≥5000mΩ |
| Max Input Power (w) | 50 |
| Contact resistance | Center Contact ≤3mΩ |
| Center conductor retention force | 450N |
| Durability | ≥ 500(cycles) |
| Contact resistance | CenterContact ≤3mΩ Outer Contact ≤2.5mΩ |
| Voltage Standing Wave Ratio | Straight ≤ 1.15/6GHz Right angle ≤ 1.25/6GHz |
Packaging and delivery
| Selling Units | Single item |
| Single package size | 111X10X10 cm |
| Single gross weight | 1.00kg |
Lead time
| Quantity (pieces) | Lead time (days) |
| 1 - 1000 | 10 |
| 1001 - 5000 | 15 |
| 5001 - 10000 | 25 |
| > 10000 | To be negotiated |

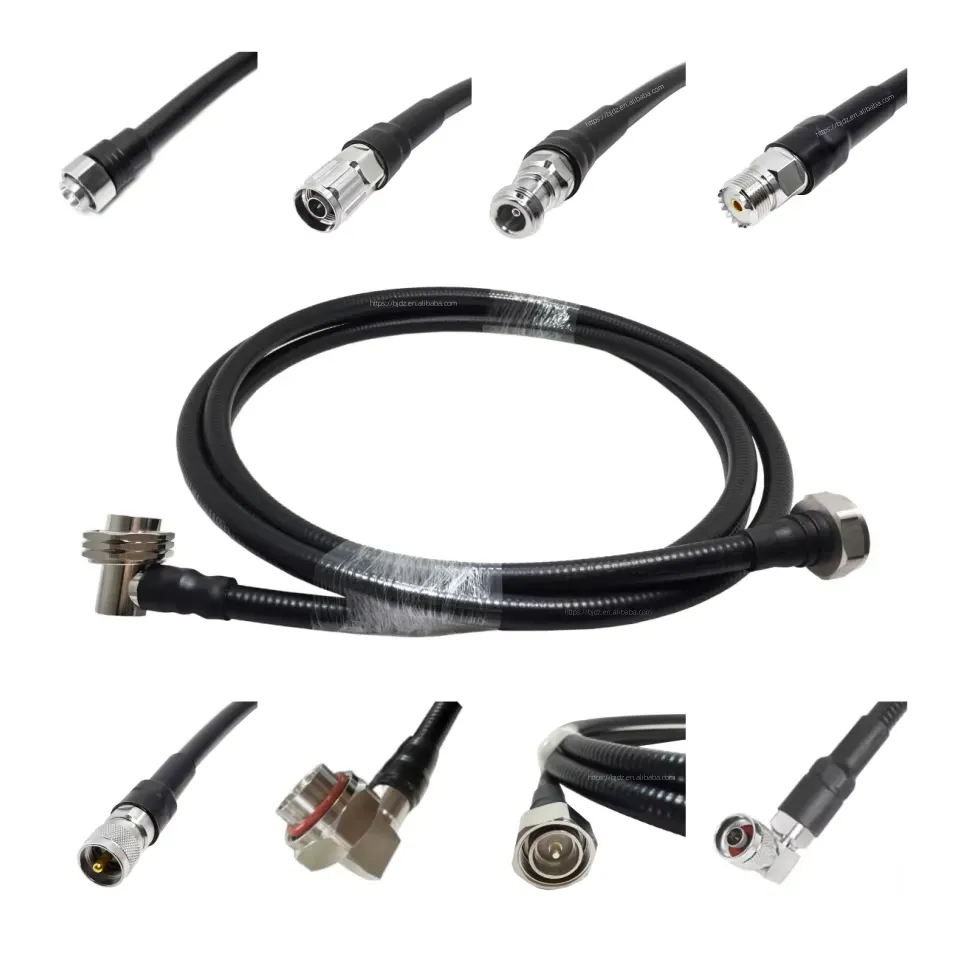

Multi-Connector Compatibility: Supports N Type, UHF SO-239, PL259, 4.3-10, MINI DIN, 7/16 DIN.
90° Angle Design: Saves space in crowded equipment racks or outdoor installations.
1/2" Superflex Cable: Ultra-flexible for tight routing, minimizing installation stress.
Low Loss & High PIM Performance: Optimized for frequencies up to 12 GHz.
Robust Build: Corrosion-resistant connectors and weatherproof cable jacket.
Parameter | Specification |
Connector Types | Male/Female Options: N Type, UHF SO-239 (PL259), 4.3-10, MINI DIN, 7/16 DIN |
Cable Diameter | 1/2" (12.7 mm) Superflexible Coaxial Cable |
Cable Length | [Enter Standard Length, e.g., 5 meters] (Custom lengths available) |
Impedance | 50 Ω (or 75 Ω for select configurations) |
Frequency Range | DC to 12 GHz |
VSWR Max. | ≤ 1.25 |
Insertion Loss (at 12 GHz) | ≤ 8 dB/m (Typical) |
Center Conductor | Solid Copper or Copper-Clad Steel (CCS) |
Dielectric | Expanded Polyethylene (PE) or Foam PE |
Outer Jacket | Flame-Retardant LSZH or Polyurethane (PU) with UV Protection |
Operating Temperature | -55°C to +105°C |
Bending Radius | Dynamic: ≤ 3x cable diameter |
Environmental Protection | IP67/IP68 (Sealing Dependent on Connector Type) |
Certifications | MIL-STD-202, RoHS, REACH, IEC 60068-2-48 |
Main Image: 90° angled assembly with cable looped to show flexibility.

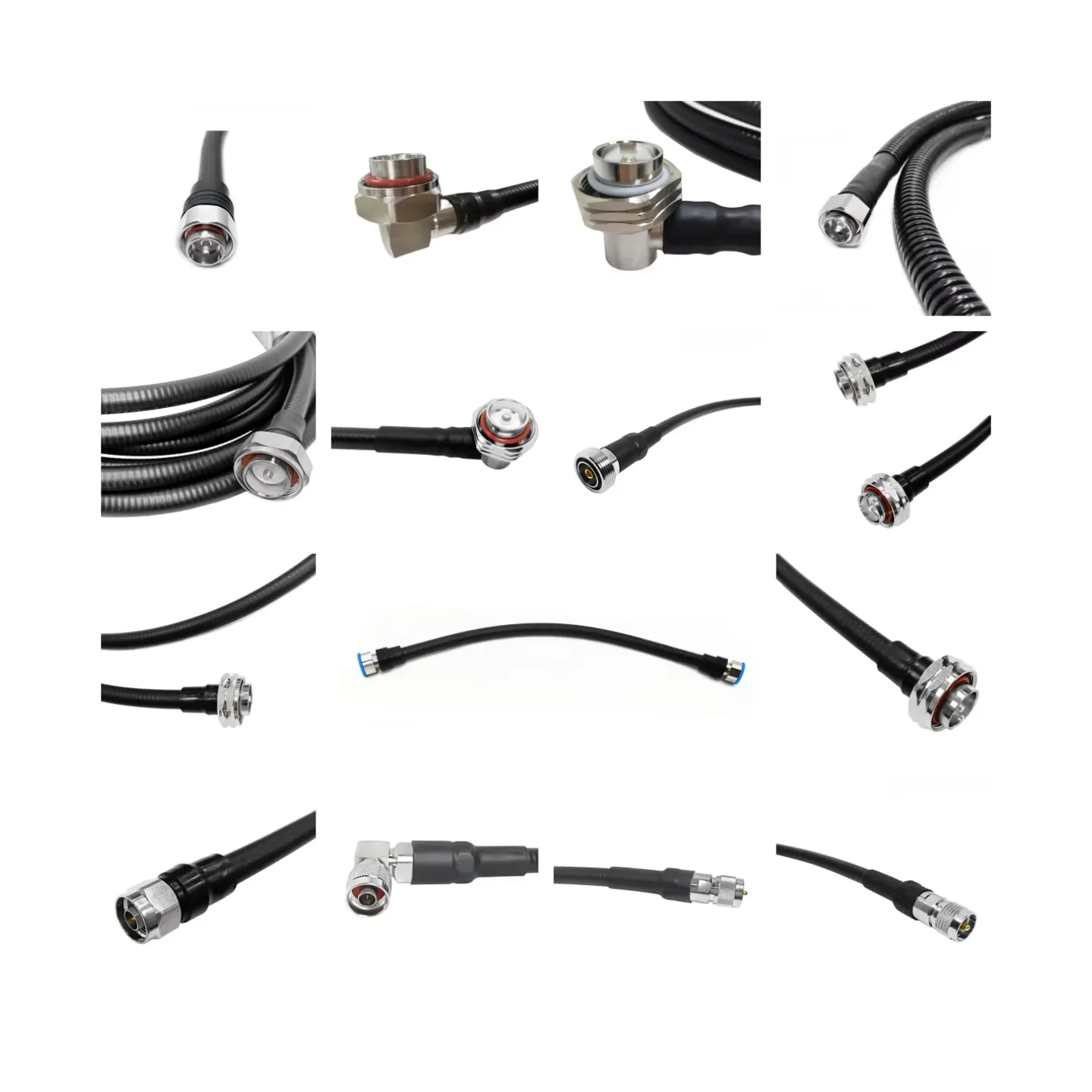

Connector Detail: High-resolution image of plated connectors with threading.
Material Cross-Section: Diagram of cable layers (conductor, dielectric, shielding).
Installation Example: Assembly integrated into a multi-connector rack system.
Environmental Test: Cable subjected to extreme bend and temperature simulations.
Ideal for:
5G & Wireless Infrastructure: Connecting macro/micro base stations to antennas.
Defense & Aerospace: Radar systems, satellite links, and tactical communication.
Industrial Automation: Factory automation, IoT gateways, and process control.
Broadcast & Media: Transmitting high-bandwidth signals in studios and towers.
Test & Measurement: RF calibration in laboratories and field testing.
BJDZ is a leading innovator in RF connectivity solutions, combining decades of expertise with state-of-the-art manufacturing. Key strengths include:
Precision Engineering: CNC machining and laser marking for consistent quality.
Customization: On-demand adaptations for connector types, lengths, and shielding.
Quality Assurance: 100% in-line testing for VSWR, insertion loss, and PIM.
Global Reach: Supplies to telecom giants, defense contractors, and research institutes.
Note: Specifications subject to change. Contact your supplier for the latest datasheet and certification details.
Choose this versatile 90° assembly for seamless, high-performance connectivity in demanding environments!
Page URL Suggestion: /products/multi-connector-90-degree-1-2-superflex-assembly
Disclaimer: Images are for illustrative purposes only. Actual product may vary based on connector configuration.
Design for reliability. Connect with confidence.
