Our product models include: 3D-FB embossed coaxial cable, 5D-FB embossed coaxial cable, 7D-FB embossed coaxial cable, 8D-FB embossed coaxial cable, 10D-FB embossed coaxial cable, 12D-FB embossed coaxial cable, 1/4 "RF embossed coaxial cable, 1/4" ultra flexible RF embossed coaxial cable, 3/8 "RF embossed cable, 3/8" ultra flexible RF embossed cable, 1/2 "RF embossed cable, 1/2" ultra flexible RF embossed cable, 5/8 "RF embossed cable, 7/8" RF embossed cable, 1-1/4 "RF embossed cable, 1-1/4" RF embossed cable. 1-5/8 "RF embossed cables can meet various customer needs.

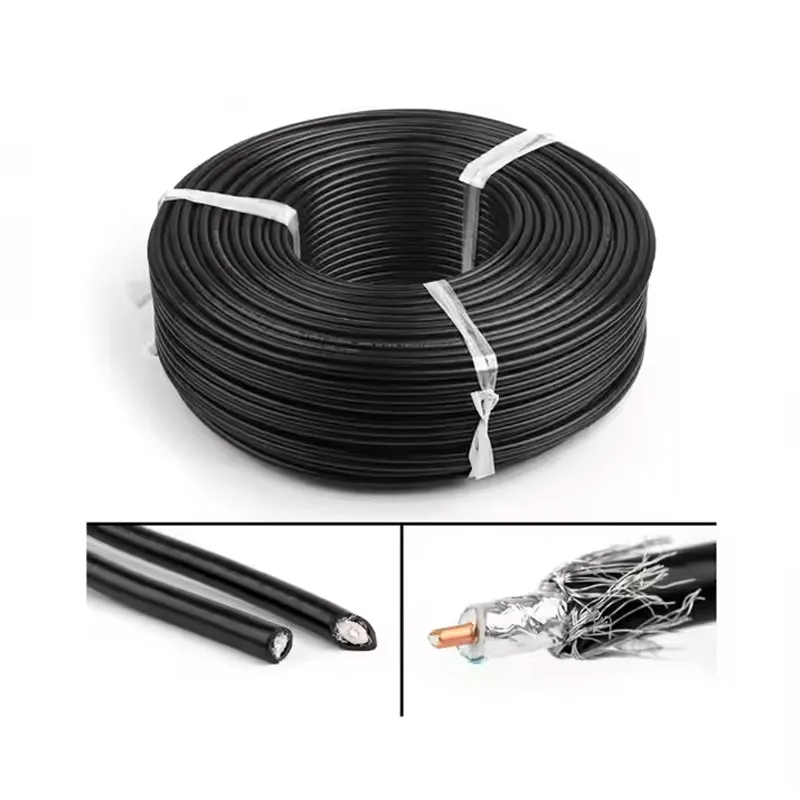

| Structure parameters | ||
| Item | Material | Diamenter (mm) |
| Inner Conductor | Copper clad steel | 1.80 |
| Dielectric | PE | 5 |
| Outer Conductor | Tin plated copper wire weaving | 5.7 |
| Jacket | PVC | 7.5 |
| Performance parameters | ||
| Capacitor | 82pF/m | |
| Impedance | 50ohm | |
| Transmission rate | 81% | |
| Internal conductor DC resistance | 11.4Ω/km | |
| Outer conductor DC resistance | 14.1Ω/km | |
| Working temperature range | -25～+70℃ | |
| Bending radius | 38mm | |
| ROHS/CE/FCC | YES | |
| Frequency | 100MHz | 6.3dB/m |
| 150MHz | 7.8dB/m | |
| 280MHz | 10.8dB/m | |
BJDZ is committed to becoming a leading enterprise in the domestic and internationally renowned radio frequency coaxial cable industry, as well as a supplier of electronic cable application solutions. The company's main products include radio frequency coaxial cables, such as fine radio frequency coaxial cables, ultra-fine radio frequency coaxial cables, semi-flexible and semi-rigid radio frequency coaxial cables, stabilized-phase microwave radio frequency coaxial cables, and military standard series radio frequency coaxial cables, among other product series. These products have been widely applied in consumer electronics, aerospace, data communication, base station communication, and medical systems
