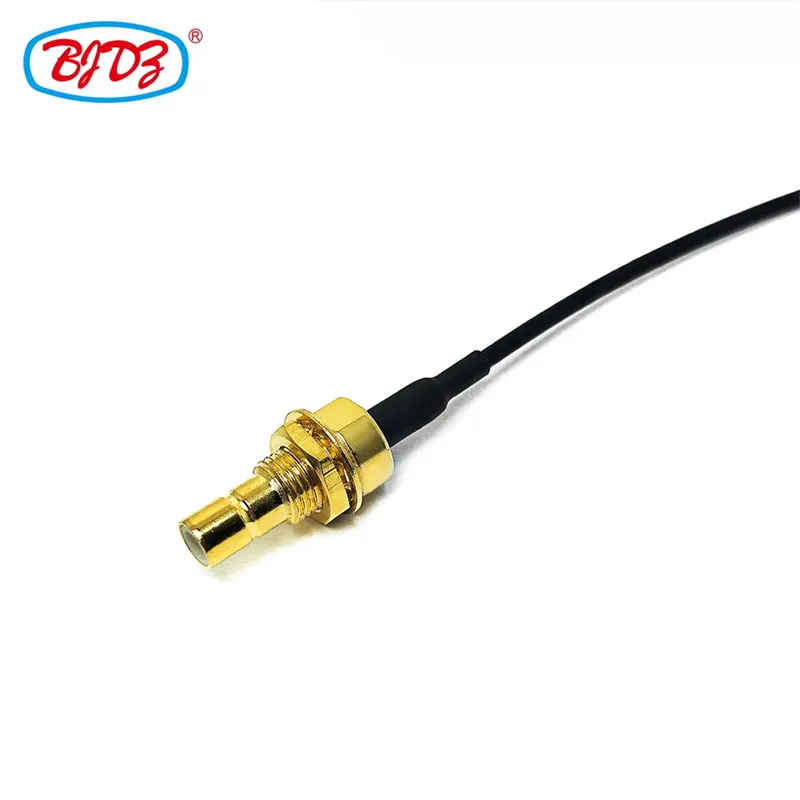

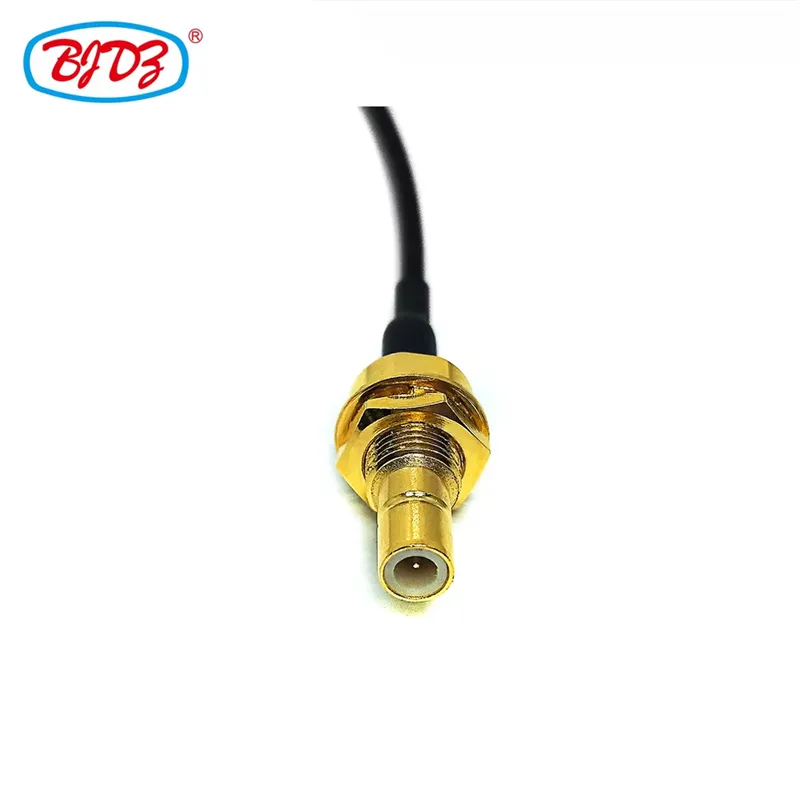

Factory SMB to UFL U.FLRF Adapter Cable SMB Bulkhead Male Jack with Fixing Nut OD 1.13 1.37 mm Extension Pigtail Cable

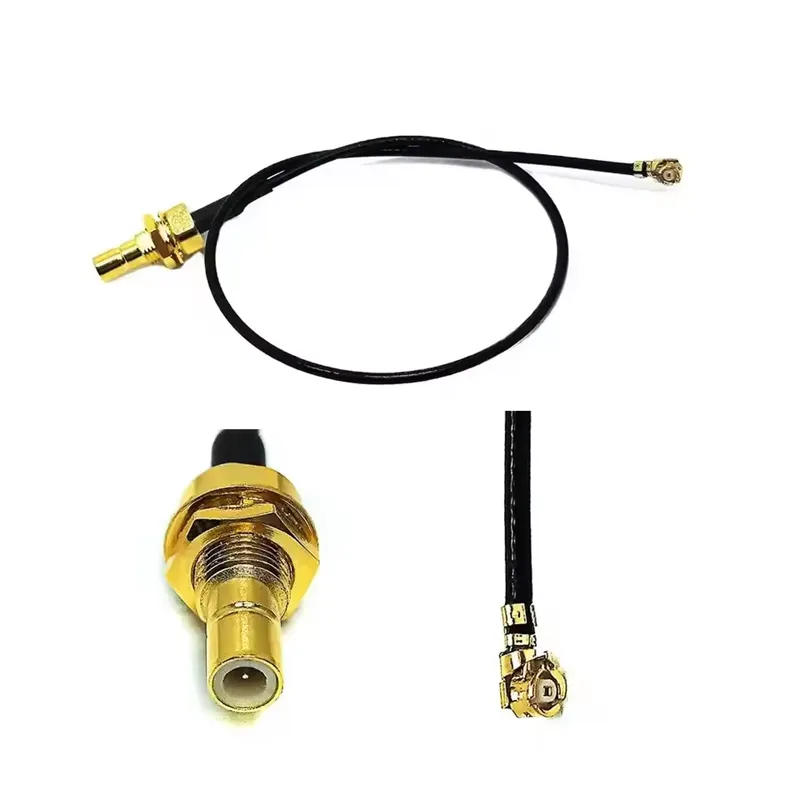

Factory-assembled SMB bulkhead jack to U.FL (IPEX MHF1) RF pigtail cable. Features a panel-mount design with a fixing nut for secure enclosure installation. Available in ultra-thin 1.13mm and 1.37mm micro-coax cables. Ideal for routing RF signals from external panels to internal wireless modules.



Specification of Factory SMB to UFL U.FLRF Adapter Cable SMB Bulkhead Male Jack with Fixing Nut OD 1.13 1.37 mm Extension Pigtail Cable

Key Specifications

Parameter

Specification

Connector A

SMB Bulkhead Jack with Fixing Nut

Connector B

U.FL / IPEX MHF1 Male Plug

Impedance

50 Ω

Frequency

DC – 4 GHz (SMB) / DC – 6 GHz (U.FL)

VSWR

≤ 1.30 @ DC–3 GHz

Cable Options

1.13mm / 1.37mm Micro-Coax

Length

5cm - 30cm (Customizable)

Compliance

RoHS, REACH

Cable Options

Cable

O.D.

Attenuation (@2.4GHz)

Best For

1.13mm

1.13 mm

~90 dB/100m

Ultra-compact spaces, high flexibility

1.37mm

1.37 mm

~70 dB/100m

Standard IoT devices, balanced loss

Ordering Information

Part NumberCableLength
SMB-BH-UFL-113-1001.13mm100mm
SMB-BH-UFL-137-1001.37mm100mm
SMB-BH-UFL-137-2001.37mm200mm


(Custom lengths and connector orientations available upon request.)

Features of Factory SMB to UFL U.FLRF Adapter Cable SMB Bulkhead Male Jack with Fixing Nut OD 1.13 1.37 mm Extension Pigtail Cable

Factory Direct SMB Bulkhead Jack to U.FL / IPEX MHF1 RF Adapter Cable | 1.13 / 1.37mm | Panel Mount with Fixing Nut

Key Features

● Secure Panel Mount: Bulkhead design with hex fixing nut prevents cable strain.

● Quick Snap-On: SMB push-pull coupling for faster connection than threaded SMA.

● Broad Compatibility: Mates with U.FL/IPEX/MHF1 receptacles on Wi-Fi, GPS, and cellular modules.

● Premium Build: Gold-plated contacts for low insertion loss and corrosion resistance.

● Factory Direct: 100% tested, cost-effective, and fully customizable.

Applications

● IoT Gateways & Industrial Routers

● GPS/GNSS Trackers

● Drone Telemetry & Video Transmission

● Automotive Telematics (TCU)

● RF Test & Measurement Equipment



FAQ

Q1: What is the panel cutout size for the SMB bulkhead?
A: Standard panel cutout is 6.5mm - 7.0mm.

Q2: Is it suitable for 5.8 GHz Wi-Fi?
A: U.FL supports up to 6 GHz, but SMB is optimized for ≤ 4 GHz. For 5.8 GHz, SMA/RP-SMA is recommended.
