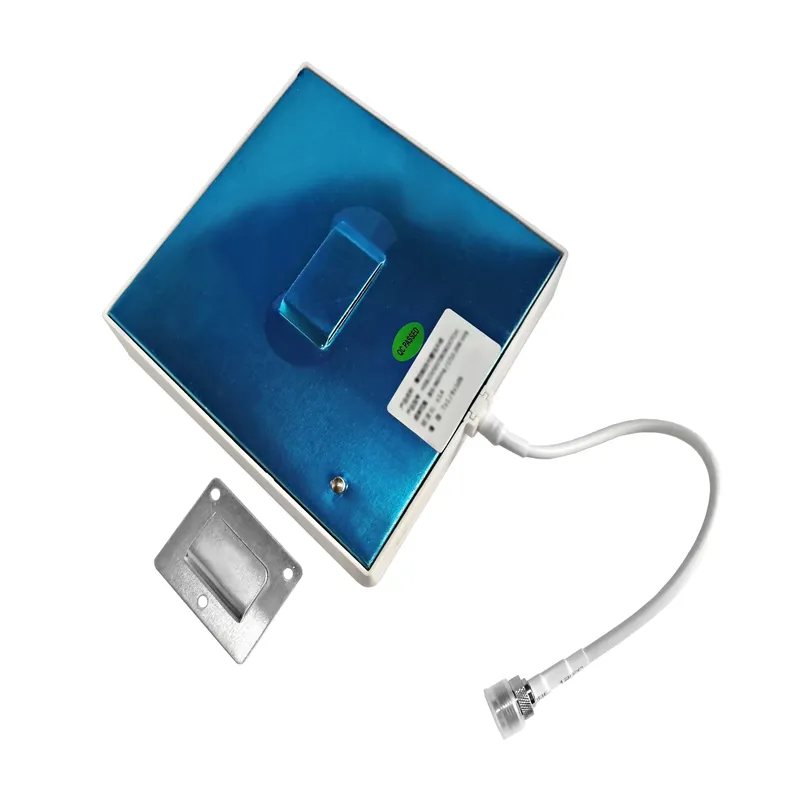

This high-performance 5G directional panel antenna is engineered to deliver focused, high-gain coverage for next-generation wireless networks in both indoor and outdoor environments. Covering the full 3.3–4.2 GHz C-band and 4.4–5.0 GHz n79 band, it supports all major global 5G NR deployments while maintaining backward compatibility with LTE Advanced. The directional radiation pattern concentrates energy toward target zones—eliminating wasted power and interference—making it ideal for point-to-point backhaul, sector coverage in stadiums/airports, enterprise campus extensions, and rural fixed wireless access (FWA).
Designed for versatile deployment, the ruggedized enclosure meets IP67 standards for outdoor exposure while maintaining a sleek, low-profile aesthetic suitable for office ceilings, warehouse walls, or building facades. Integrated wall-mount hardware enables precise azimuth/elevation adjustment without specialized tools, ensuring optimal alignment during installation. Dual-polarized ±45° slant elements maximize MIMO throughput and polarization diversity, directly translating to higher spectral efficiency and user capacity in dense 5G networks.
Manufactured to high-quality standards with 100% electrical validation, every unit guarantees consistent gain, VSWR, and isolation across volume orders. Pre-certified with CE, FCC, and ROHS, it ships ready for immediate integration into carrier-grade or private 5G infrastructure. Sourced directly from our ISO-certified facility, this antenna offers unmatched performance-to-cost ratio for operators, system integrators, and OEMs scaling 5G coverage.
| Parameter | Value | Unit | Note |
| Frequency Range | 3300–4200 / 4400–5000 | MHz | Covers n77/n78/n79 + LTE Band 42/43 |
| Gain | 12 | dBi | Peak gain across both bands |
| Polarization | Dual Slant ±45° | — | Optimized for 2x2/4x4 MIMO |
| VSWR | ≤ 1.5:1 | — | Across entire operating bandwidth |
| Port-to-Port Isolation | ≥ 28 | dB | Ensures clean MIMO signal separation |
| Horizontal Beamwidth | 65 | ° | Focused sector coverage |
| Vertical Beamwidth | 30 | ° | Controlled elevation tilt |
| Front-to-Back Ratio | ≥ 25 | dB | Minimizes rear-lobe interference |
| Impedance | 50 | Ω | Standard RF interface |
| Max Input Power | 100 | W | Per port; continuous wave rating |
| Connector | 2× N-Type Female | — | Weatherproof; torque-rated |
| Mounting | Wall/Pole/Mast | — | Adjustable bracket included |
| Dimensions | 320 × 180 × 65 | mm | Compact form factor |
| Weight | 2.8 | kg | Lightweight for easy installation |
| Operating Temp | -40 to +70 | °C | Industrial/military grade |
| Waterproof Rating | IP67 | — | Sealed radome + gasketed connectors |
| Wind Survival | 200 | km/h | Tested per IEC 60721-3-4 |
| Certifications | CE, FCC, ROHS | — | Pre-certified; docs included |
● True Dual-Band 5G Coverage — Simultaneously supports n77/n78 (3.3–4.2 GHz) and n79 (4.4–5.0 GHz) with ≤1.5:1 VSWR across both bands, eliminating need for separate antennas and reducing site CAPEX by up to 40%.
● High-Gain Directional Focus — 12 dBi peak gain with 65° H-beamwidth concentrates energy precisely where needed, extending range by 2–3× vs. omnidirectional antennas while suppressing co-channel interference in dense deployments.
● MIMO-Optimized Dual Polarization — ±45° slant elements with ≥28 dB port isolation ensure clean spatial multiplexing for 2x2/4x4 MIMO, maximizing throughput and spectral efficiency in real-world non-line-of-sight conditions.
● Rugged Indoor/Outdoor Versatility — IP67-sealed UV-stabilized radome withstands rain, dust, salt spray, and temperature extremes outdoors, while low-profile design blends seamlessly into modern indoor architectures.
● Precision Adjustable Mounting — Included wall/pole bracket allows ±30° azimuth and ±15° elevation adjustment without disassembly, enabling fine-tuning post-installation to compensate for structural obstructions or changing coverage needs.
● High-Quality Consistency — 100% factory-tested for gain, VSWR, isolation, and mechanical integrity; <0.5% field failure rate ensures predictable network KPIs across hundreds of deployed sites.
● 5G NR Small Cell Sector Coverage
● Fixed Wireless Access (FWA) CPE Links
● Enterprise Private 5G Networks
● Stadium/Airport/Venue Capacity Layers
● Industrial IoT Campus Backhaul
● Rural Broadband Extension
● Smart City Infrastructure Nodes
● Warehouse/Distribution Center Coverage
● University/Education Campus Networks
● Temporary Event Connectivity
● <0.5% Defect Rate at Scale — ISO 9001-certified manufacturing ensures every antenna meets high-quality specs, preventing costly tower climbs or rework in hard-to-access 5G sites.
● Global Compliance Included — CE/FCC/ROHS documentation ships standard, saving 4–8 weeks of independent testing for multinational rollouts or regulatory submissions.
● Trusted in 80+ Countries — Supplied to Tier-1 operators, private network vendors, and smart-city integrators with 99% positive Alibaba rating.
● Fortune 500 Qualified Supplier — Full traceability, PPAP-capable processes, and JIT delivery meet carrier/enterprise procurement standards.
● 24/7 RF Engineering Support — Free link budget analysis, interference modeling, and mounting optimization to accelerate time-to-revenue and maximize ROI.
📩 Discuss volume discounts or custom beamwidths at minna_liao@bjdz.top.
Tailor this platform to your exact network requirements:
● Frequency Bands — Sub-6 GHz (n41/n77/n78/n79), mmWave (24/28/39 GHz), or multi-band combos
● Beamwidth Options — 30°, 45°, 65°, 90°, or dual-beam configurations
● Gain Variants — 8 dBi (wide area), 12 dBi (standard), 15 dBi (long-range PTP)
● Connector Types — SMA, RP-SMA, DIN, or integrated pigtails
● Mounting Hardware — Pole clamps, ceiling mounts, articulating arms, or flush-mount kits
● Color/Aesthetics — White, gray, black, or custom RAL for architectural blending
● Private Labeling — Logo printing, asset tags, or retail packaging
Samples ready in 7–10 business days; production completes in 20–25 days. MOQ: 50 units for custom configs; standard 12 dBi dual-band units ship within 72 hours from stock.
📩 Send site specs or coverage goals to minna_liao@bjdz.top for a tailored RF solution within 24 hours.
Q: Can this antenna support 4G LTE alongside 5G?
A: Yes. The 3.3–4.2 GHz band overlaps LTE Band 42/43, and the antenna’s wide impedance match maintains ≤1.5:1 VSWR across LTE frequencies. Ideal for DSS (Dynamic Spectrum Sharing) or parallel 4G/5G deployments without additional hardware.
Q: How does wall mounting affect performance vs. pole mounting?
A: Minimal impact when mounted on non-conductive surfaces (concrete, brick, wood). On metal walls, maintain ≥10 cm standoff using included spacers to prevent ground-plane coupling that distorts pattern/VSWR. Pole mounting is preferred for unobstructed 360° clearance.
Q: What’s the maximum recommended cable run length?
A: For minimal loss at 5 GHz, use LMR-400 or equivalent low-loss coax. Max recommended run: 30 meters (<3 dB insertion loss). For longer runs, consider remote radio heads or fiber-to-antenna solutions. We supply pre-tested jumper assemblies upon request.
Q: Is this antenna suitable for mmWave 5G (24/28/39 GHz)?
A: No. This model covers sub-6 GHz only. For mmWave, we offer dedicated phased-array panel antennas with electronic beamsteering. Specify frequency band when inquiring—we’ll recommend the correct platform.
Q: How do I align the antenna for optimal performance?
A: Use built-in bubble level for initial tilt, then refine with spectrum analyzer or drive-test tool. Start with boresight aimed at target zone centroid; adjust azimuth ±5° increments while monitoring RSRP/SINR. Our engineering team provides free alignment guides and remote troubleshooting.
Q: Do you provide test reports for quality verification?
A: Every batch includes gain/VSWR/isolation test summaries. Full anechoic chamber patterns and environmental stress screening data available for QA/validation. Third-party lab coordination supported for carrier acceptance testing.
📩 For samples, datasheets, or RF planning: minna_liao@bjdz.top ｜ +86 186 2128 3578
Zhenjiang Binjiang Electronic Co., Ltd. — Global Leader in RF Solutions
OEM/ODM services available. Custom frequency, beamwidth, mounting, and branding configurations supported.
Your trusted RF partner from prototype to mass production.
