Technical Strength: Experienced R&D team and standardized laboratories provide one-stop service from prototype development to mass production.
Quality Assurance: Strict adherence to ISO/IEC international standards ensures that products achieve industry-leading levels in weather resistance, signal stability, and other key indicators.
Key attributes
| Conductor Material | Copper |
| Insulation Material | PTFE |
| Jacket | PVC |
| Number of Conductors | 1 |

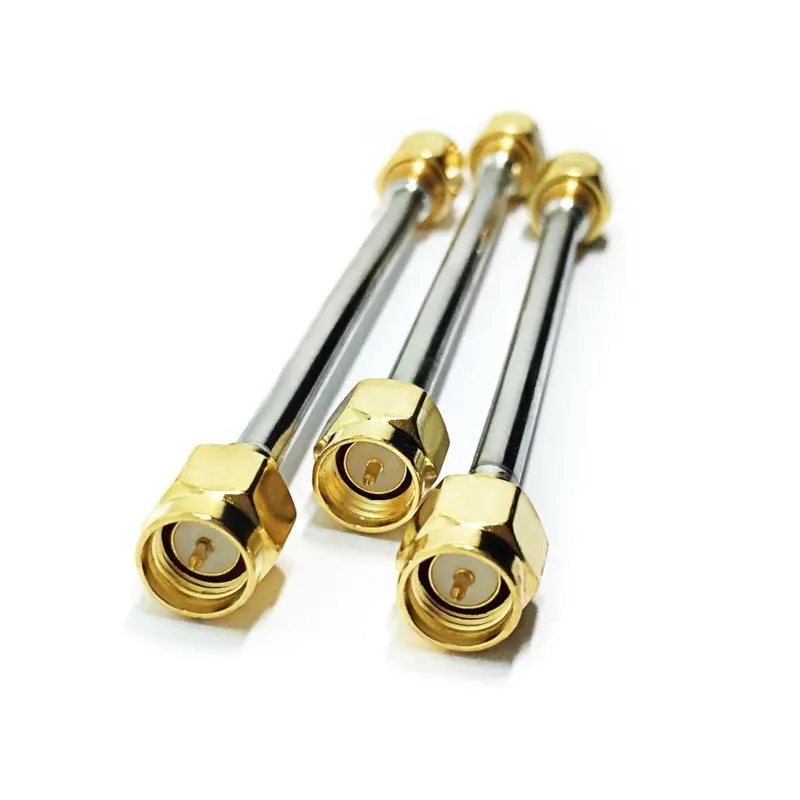

| Model Number | SMA Male to SMA Male 0.141 Semi-Rigid-cable Assembly |
| Cable Type | 0.141 cable |
| Brand Name | BJDZ |
| Place of Origin | Jiangsu, China |
| Application | RF |
| Plating | Nickel |
| Material | Copper |
| Insulator | PTFE/Plastic |
| Certificate | CE/FCC/ROHS/ISO9001:2015 |
| Length | 5CM |
| Frequency Range (MHz) | DC-12GHz |
| Max Voltage | 335V max |
| Temperature range | -55~+155°C (PE Cable -40~+85°C) |
| Input Impendence (ohm) | 50 |
| V.S.W.R | 1.15+0.02f |
| Vibration | 100m/s2 (10~500Hz) |
| Withstand Voltage | 2500V r.m.s at sea level |
| Working Voltage | 1000Vr.m.s at sea level |
| Insertion Loss | ≤ 0.24dB/6GHz |
| Insulation resistance | ≥5000mΩ |
| Max Input Power (w) | 50 |
| Contact resistance | Center Contact ≤3mΩ |
| Center conductor retention force | 450N |
| Durability | ≥ 500(cycles) |
| Contact resistance | CenterContact ≤1mΩ Outer Contact ≤1mΩ |
| Voltage Standing Wave Ratio | Straight ≤ 1.15/6GHz Right angle ≤ 1.25/6GHz |
Packaging and delivery
| Selling Units | Single item |
| Single package size | 12X12X3 cm |
| Single gross weight | 0.100 kg |
Lead time
| Quantity (pieces) | Lead time (days) |
| 1 - 1000 | 10 |
| 1001 - 5000 | 15 |
| 5001 - 10000 | 25 |
| > 10000 | To be negotiated |
Price
| 20 - 499 pieces | $2.00 |
| 500 - 4999 pieces | $1.85 |
| 5000 - 9999 pieces | $1.65 |
| >= 10000 pieces | $1.55 |
Zhenjiang Binjiang Electronic Co., Ltd.-RF technology expert, core business full range of RF products: adapter/connector/antenna/coaxial cable, customized services: OEM/ODM support, including fast sampling, testing optimization Top 500 enterprise suppliers with technological advantages, certified internationally,24-hour technical response, focusing on 5G/satellite communication fields, global services, product coverage in over 30 countries, and aerospace grade quality assurance Corporate vision: To drive the development of wireless communication technology through innovation.
