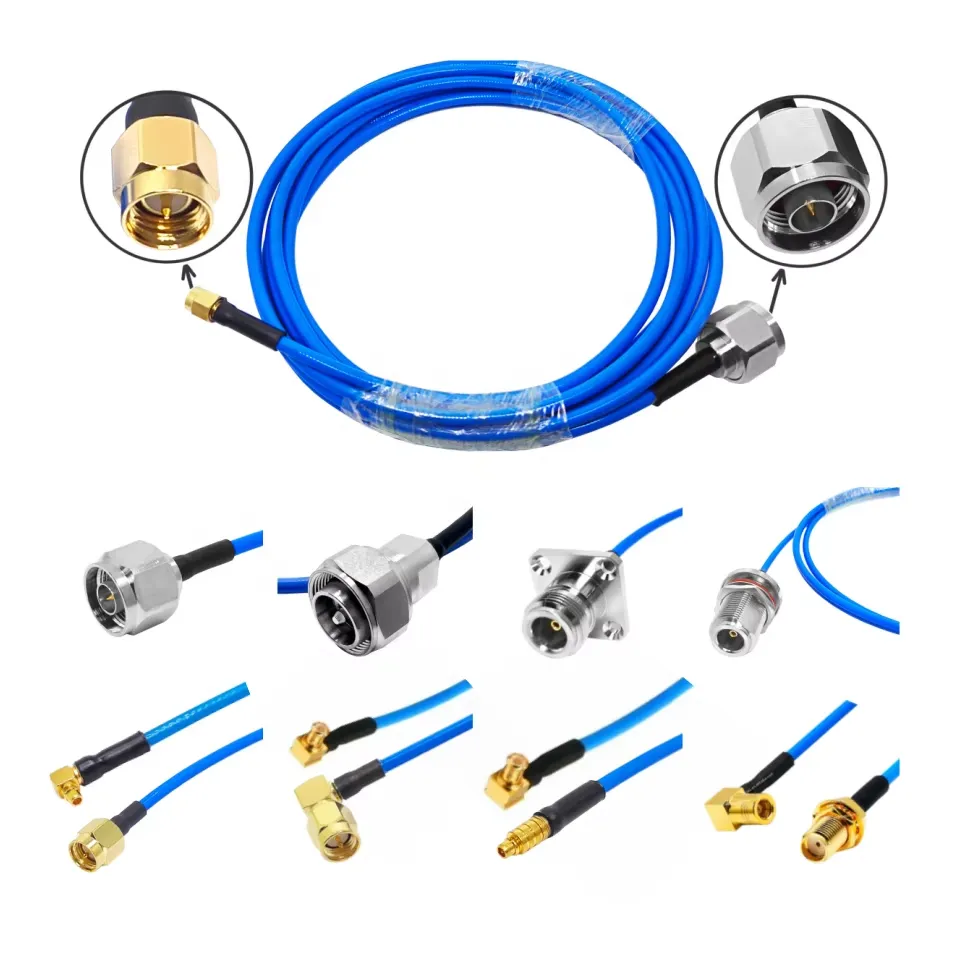

This comprehensive pigtail cable assembly offers exceptional flexibility and reliability for diverse RF and microwave applications. Designed with industry-standard connectors — including N-Flange, SMA, SMB, SMP, MMCX, MCX, BNC, TNC, UHF, 4.3-10, and 7-16 DIN in both male and female variants — it ensures seamless interoperability across a wide range of equipment. Engineered specifically for RG402, SS402, TFLEX-402, RG405, SS405, and 086 semi-rigid/flexible cables, this assembly excels in maintaining signal integrity, even in space-constrained or harsh environments, making it ideal for critical communication systems.
Key attributes
| Conductor Material | Copper |
| Insulation Material | PTFE |
| Jacket | PVC |
| Number of Conductors | 1 |
| Model Number | RG402 SS402 TFLEX-402 RG405 SS405 086 Pigtail Cable |
| Cable Type | custom |
| Brand Name | BJDZ |
| Place of Origin | Jiangsu, China |
| Application | RF |
| Plating | Nickel or Tri-Metal plated |
| Material | Copper |
| Insulator | PTFE/Plastic |

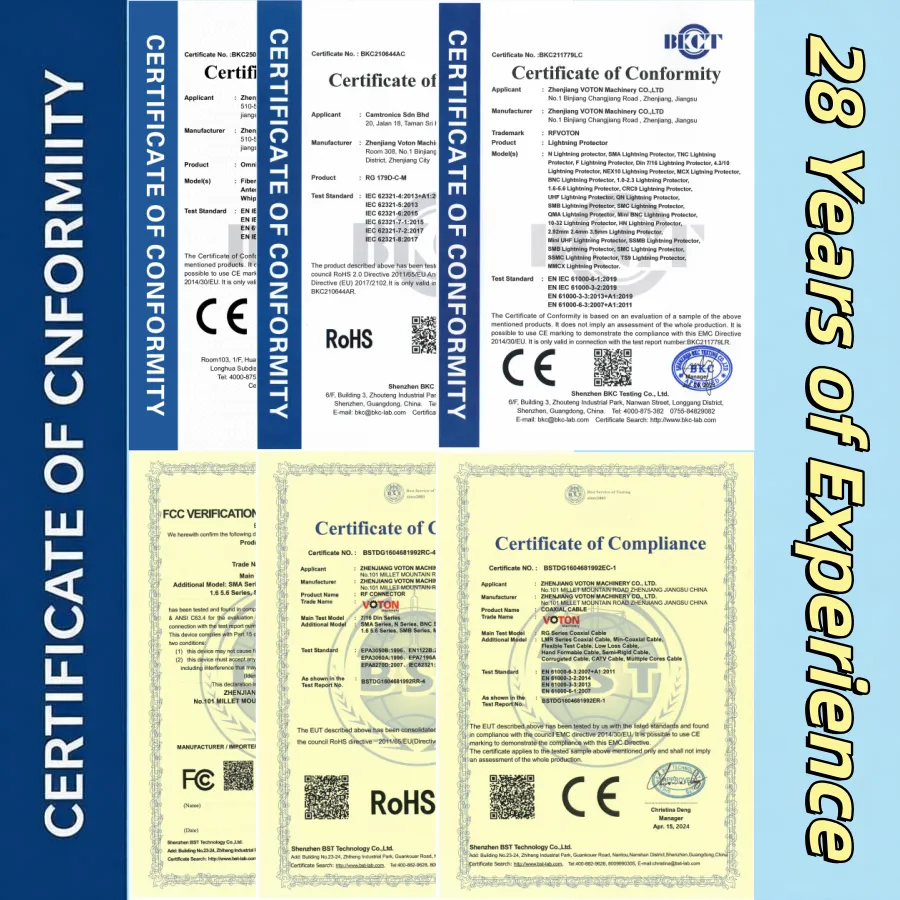

| Certificate | CE/FCC/ROHS/ISO9001:2015 |
| VSWR | 1.15+0.02f |
| Vibration | 98m/S2 (10~2000Hz), 10g |
| Frequency Range (MHz) | DC-11GHz |
| Max Voltage | 335V max |
| Temperature range | -55~+155°C (PE Cable -40~+85°C) |
| Input Impendence (ohm) | 50 |
| V.S.W.R | 1.15+0.02f |
| Vibration | 98m/S2 (10~2000Hz), 10g |
| Insertion Loss | ≤ 0.15dB/6GHz |
| Withstand Voltage | 1000V rms |
| Working Voltage | 335Vr.m.s at sea level |
| Insulation resistance | ≥5000mΩ |
| Max Input Power (w) | 50 |
| Contact resistance | Center Contact ≤3mΩ |
| Center conductor retention force | 450N |
| Durability | ≥ 500(cycles) |
| Contact resistance | CenterContact ≤3mΩ Outer Contact ≤2.5mΩ |
| Voltage Standing Wave Ratio | Straight ≤ 1.15/6GHz Right angle ≤ 1.25/6GHz |
Packaging and delivery
| Selling Units | Single item |
| Single package size | 111X10X10 cm |
| Single gross weight | 1.00kg |
Lead time
| Quantity (pieces) | Lead time (days) |
| 1 - 1000 | 10 |
| 1001 - 5000 | 15 |
| 5001 - 10000 | 25 |
| > 10000 | To be negotiated |
Multi-Connector Compatibility: Supports a wide array of industry-standard RF connectors (N/SMA/SMB/SMP/MMCX/MCX/BNC/TNC/UHF/4.3-10/7-16 DIN) to simplify system integration.
Semi-Rigid/Flex Cable Options: Precision-matched to RG402, SS402, TFLEX-402, RG405, SS405, and 086 cables, offering superior bendability, low insertion loss, and durability.
Robust Flange Mounting: Flanged connectors (e.g., N-Flange, 7/16 DIN) provide secure panel mounting, minimizing vibration risks and ensuring long-term stability.
Low Insertion Loss & High-Frequency Performance: Optimized for minimal signal attenuation and reflection (VSWR ≤ 1.15), supporting frequencies up to 6 GHz (depending on connector type).
Corrosion-Resistant & Durable: Constructed with high-grade materials (brass, stainless steel) and nickel/gold plating for enhanced resistance to harsh environments (IP67-rated).
Customization-Friendly: Available in standard lengths or fully customizable (e.g., cable length, connector orientation, termination options).
Industry-Certified Quality: Manufactured to meet ISO9001, RoHS, and REACH standards, with rigorous testing for PIM, VSWR, and mechanical strength.
Telecom Infrastructure: 5G/6G Base Stations, DAS Systems, Microwave Links.
Defense & Aerospace: Radar, Satellite Communications, Telemetry Systems.
Industrial Automation: Factory Networking, IoT Connectivity in Harsh Environments.
Test & Measurement: Signal Generators, Spectrum Analyzers, Anechoic Chambers.
Broadcasting: RF Transmission in TV/Radio Studios.
Connector Types: N-Type/SMA/SMB/SMP/MMCX/MCX/BNC/TNC/UHF/4.3-10/7-16 DIN (Male/Female)
Cable Options: RG402, SS402, TFLEX-402, RG405, SS405, 086
Impedance: 50Ω (standard) or 75Ω (upon request)
Frequency Range: DC - 6 GHz (varies by connector type)
VSWR: ≤1.15 (typical)
Insertion Loss: ≤0.3 dB/m (at 6 GHz, depending on cable)
Operating Temperature: -55°C to +125°C
Materials: Connectors: Brass/Nickel/Gold-Plated, Cable: Copper Core w/ PTFE/Polyethylene Jacket
Mounting: Flanged (N-Type, 7/16 DIN), Threaded (SMA, BNC, etc.)
Environmental Rating: IP67 (Sealed Connectors)
Universal Compatibility: Consolidate multiple connector types into a single assembly.
Performance-Grade Materials: Reduced signal degradation and long service life.
Customization Agility: Tailor lengths, terminations, and coatings to your exact needs.
Certified Reliability: Stringent quality control for mission-critical deployments.
Cost-Optimized: Streamline inventory management with multi-purpose assemblies.
BJDZ — Enabling Global Connectivity with Precision-Engineered RF Solutions.
Contact us for:
Bulk Orders
Datasheets & Certifications
Custom Engineering Solutions (Shielding, Lengths, Mixed Connectors)
Let's Connect Your Network with Confidence!
(Note: Specifications subject to product configuration. Contact us for detailed performance data.) *
