Reduce interference: Carefully designed cable components can minimize electromagnetic interference (EMI) and electromagnetic compatibility (EMC) issues, ensuring clear and uninterrupted signals.
Organization: Cable components help achieve clean and orderly wiring, simplify maintenance and troubleshooting work, and save time and resources.
| Key attributes | |
| Conductor Material | Copper |
| Insulation Material | PTFE |
| Jacket | PE |
| Number of Conductors | Single |

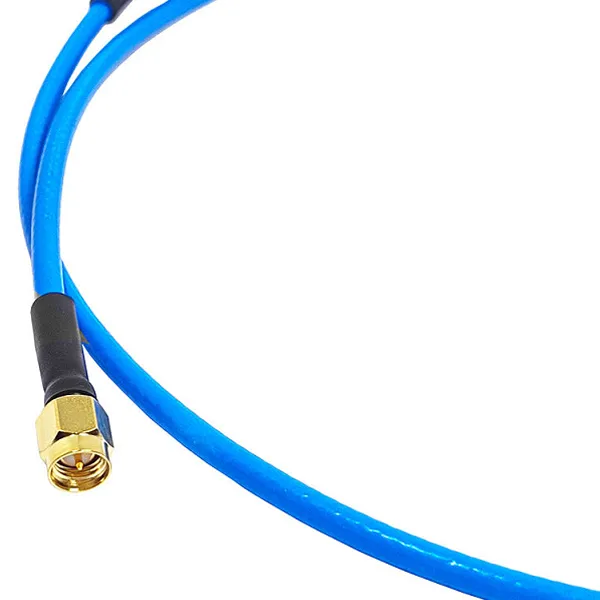

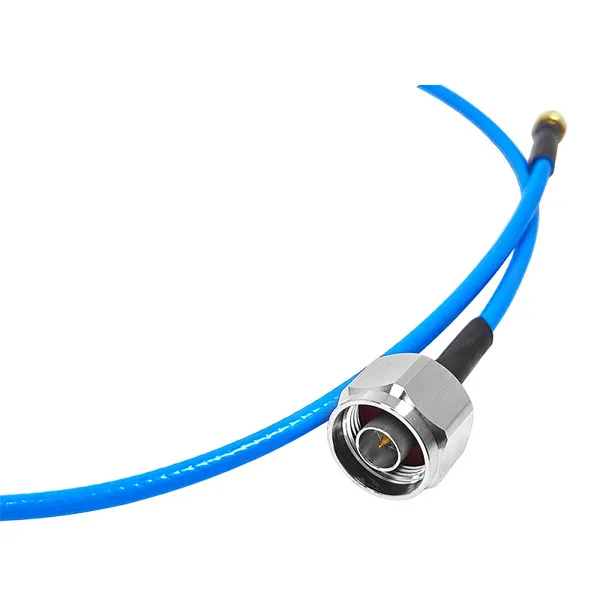

| Model Number | N Type Male to SMA male 0.141-inch cable |
| Brand Name | BJDZ |
| Place of Origin | Jiangsu, China |
| Application | RF |
| Length | 50 cm(19.69in) |
| Plating | Nickel or Tri-Metal plated |
| Material | Copper |
| Insulator | PTFE/Plastic |
| Certificate | CE/FCC/ROHS/ISO9001:2015 |
| Impedance | 50Ω |
| Frequency | DC-12.4GHz(semi-rigid cable DC-18 GHz) |
| VSWR | 1.15+0.02f |
| Insulation Resistance | 5000MΩ |
| Durability | 500 cycles |
| Describe | 50ohm calibration |
| Temperature Range | -55~+155°C (PE Cable -40~+85°C) |
| Vibration | 98m/S2 (10~2000Hz), 10g |
| Insertion Loss | ≤ 0.15dB/6GHz |
| Withstanding Voltage | 1000Vr.m.s at sea level |
| Working Voltage | 335Vr.m.s at sea level |
| Contact resistance | Center Contact ≤ 3mΩ Outer Contact ≤ 2.5mΩ |
| Voltage Standing Wave Ratio | Straight flex cable ≤ 1.10+0.02f Semi-rigid cable ≤ 1.07+0.018f Right angle flex cable ≤ 1.20+0.03f Semi-rigid cable ≤ 1.17+0.02f |
| Lead time | |
| Quantity (pieces) | Lead time (days) |
| 1 - 1000 | 14 |
| 1001 - 5000 | 15 |
| 5001 - 10000 | 20 |
| > 10000 | To be negotiated |
| Price | |
| 5 - 999 pieces | $2.80 |
| 1000 - 9999 pieces | $2.50 |
| >= 10000 pieces | $2.30 |
1. Our company has a group of high-precision and advanced professional RF technology developers, and a deep understanding of RF technology theory and application is the core part of current technology.
2. We have strict requirements for product materials, performance, and design. We use advanced computer simulation algorithms and structural optimization to improve RF solutions, and have accumulated years of structural solutions and unique manufacturing processes to further optimize RF indicators. We often conduct pre design manufacturing and cost analysis, and customize corresponding products according to different customer needs, demanding the strictest standards for our own product quality.
