Team R&D Strength: The company integrates independent product technology development and application, attaches importance to independent intellectual property rights, always adheres to independent R&D and continuous innovation, continuously strengthens its own technology investment, and provides professional and reliable products and supporting services for the RF communication industry.
Reliability: The design of cable components is durable, maintaining performance even in harsh environments and providing stable, uninterrupted connections.
| Key attributes | |
| Conductor Material | Copper |
| Insulation Material | PTFE |
| Jacket | PVC |
| Number of Conductors | 1 |

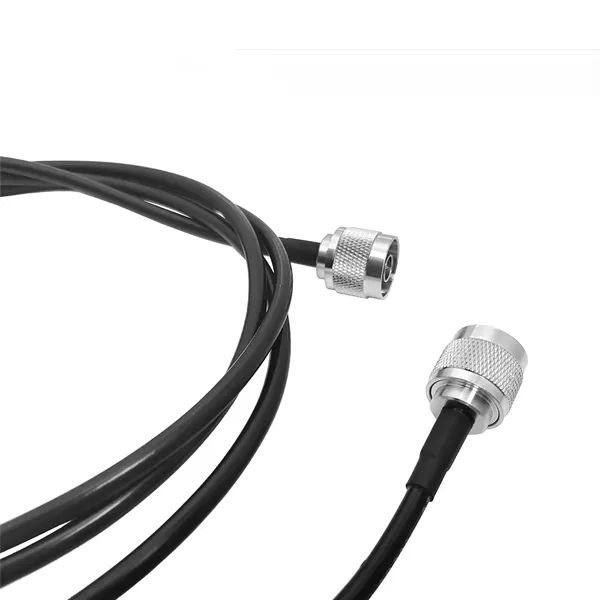

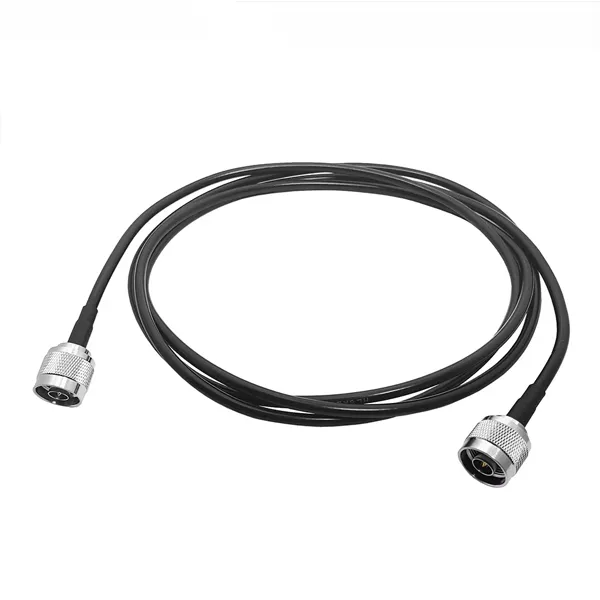

| Model Number | N Male to N Male For RG223 Cable Assembly |
| Cable Type | RG223 Cable |
| Length | 0.3m(0.98ft) |
| Brand Name | BJDZ |
| Place of Origin | Jiangsu, China |
| Application | RF |
| Plating | Gold or Nickel |
| Material | Copper |
| Insulator | PTFE/Plastic |
| Certificate | CE/FCC/ROHS/ISO9001:2015 |
| Frequency Range (MHz) | 0-6GHz |
| Max Voltage | 335V max |
| Temperature range | -65~+165°C (PE Cable -40~+85°C) |
| Input Impendence (ohm) | 50 |
| V.S.W.R | 1.15+0.02f |
| Withstand Voltage | 1000V rms |
| Working Voltage | 335Vr.m.s at sea level |
| Insertion Loss | ≤ 0.24dB/6GHz |
| Insulation resistance | ≥5000mΩ |
| Max Input Power (w) | 50 |
| Contact resistance | Center Contact ≤3mΩ |
| Center conductor retention force | 450N |
| Durability | ≥ 500(cycles) |
| Contact resistance | CenterContact ≤1mΩ Outer Contact ≤1mΩ |
| Voltage Standing Wave Ratio | Straight ≤ 1.15/6GHz Right angle ≤ 1.25/6GHz |
