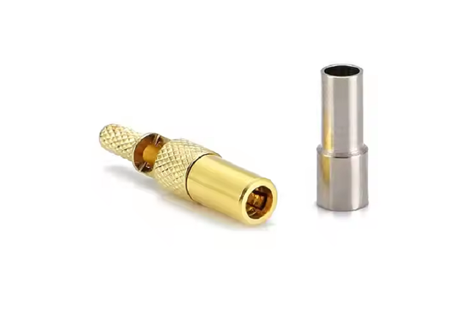

SSMB connector is a push in locking RF coaxial connector with the characteristics of small size and light weight, suitable for high-frequency signal transmission. Its impedance types include 50 Ω and 75 Ω, standing wave ratio (VSWR): ≤ 1.3 (straight)/≤ 1.5 (curved), support frequency range varies depending on the model, some models can be extended to 12.4GHz, insulation resistance: ≥ 1000M Ω.
SSMB connector is a push in locking RF coaxial connector with the characteristics of small size and light weight, suitable for high-frequency signal transmission. Its impedance types include 50 Ω and 75 Ω, standing wave ratio (VSWR): ≤ 1.3 (straight)/≤ 1.5 (curved), support frequency range varies depending on the model, some models can be extended to 12.4GHz, insulation resistance: ≥ 1000M Ω.
| Polarity | Standard |
| Connector Series | SSMB |
| Connector Gender | Plug |
| application | RF |
| Place of Origin | jiangsu(china) |
| Certificate | RoHS/CE/FCC |
| material | Brass |
| Frequency Range | DC-1GHz |
| Durability | ≥ 500 (cycles) |
| Insertion Loss | ≤0.24dB/3GHz |
| Impedance | 50 Ohm |
| Body Style | Right Angle |
| Attachment Method | Crimp/Solder |
1. Common models of SSMB connectors: Male: SSMB-J series (such as SSMB-JEF, SSMB-JFD); Mother head: SSMB-K series (such as SSMB-KW, SSMB-K-1.5).
2. Application field communication equipment: high-frequency signal transmission scenarios such as microwave base stations and wireless radios;
3. Aerospace: High reliability connectivity requirements in navigation systems and radar equipment;
4. Instrumentation: RF circuit connection for testing equipment and medical instruments.
