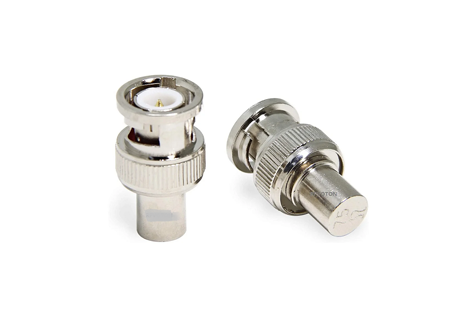

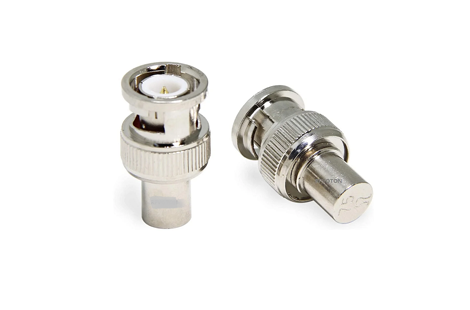

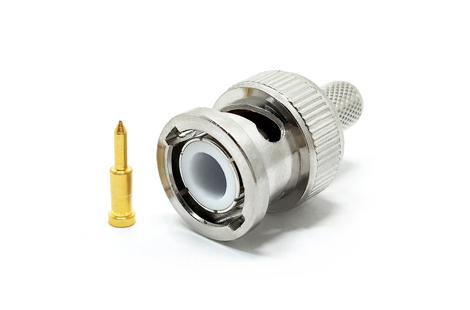

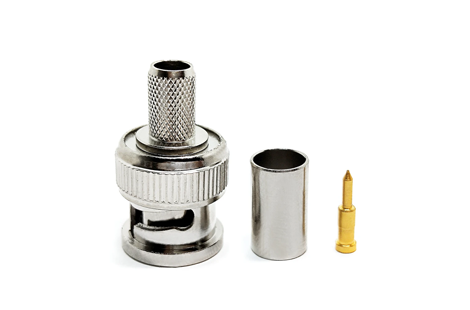

BNC(RP BNC) Connector is a snap on connector that is easy to connect and disconnect. It has two tabs on the female head to determine if the connection is good. The impedance of BNC connectors is 50 ohms or 75 ohms, and the operating frequency is DC-11 GHz. BNC connectors are widely used in wireless communication systems, televisions, testing equipment, and other RF electronic devices. Early computer networks also used BNC connectors. The signal frequency range supported by BNC connectors is 0 to 4GHz. There are two types of characteristic impedances: 50 ohms and 75 ohms.
BNC(RP BNC) Connector is a snap on connector that is easy to connect and disconnect. It has two tabs on the female head to determine if the connection is good. The impedance of BNC connectors is 50 ohms or 75 ohms, and the operating frequency is DC-11 GHz. BNC connectors are widely used in wireless communication systems, televisions, testing equipment, and other RF electronic devices. Early computer networks also used BNC connectors. The signal frequency range supported by BNC connectors is 0 to 4GHz. There are two types of characteristic impedances: 50 ohms and 75 ohms.
| Plating | Nickel/gold |
| Material | Brass |
| Insulator | PTFE/Plastic |
| ROHS | IS09001:2015 |
| Pin contact | Brass |
| Risilent contact | Beryllium copper |
| O-ring seling | 6146 silicon |
| Elastic contact | Tin brass with gold or sliver plated |
| Produce equipment | CNC |
| Connector type | smc male rg316 |
1. The BNC connector structure is divided into male or female heads, with standard polarity or reverse polarity styles.
2. The appearance of BNC connectors is divided into straight or right angle types, as well as 4-hole flange type, partition type, 4-hole panel type or non installation type.
3. Technical parameters and performance:
1) Electrical characteristics:
Impedance: 75 Ω (mainstream video transmission) or 50 Ω (RF application);
Frequency range: 0-2GHz (regular model), partially supported up to 11GHz;
Standing wave ratio (VSWR): ≤ 1.3, ensuring signal integrity.
2) Mechanical characteristics:
Plug and unplug life: ≥ 500 times;
Voltage resistance level: 1500V dielectric withstand voltage.
