OEM/ODM SMA Terminal high-power coaxial loads deliver professional performance from DC–8.5 GHz with up to 250 W power handling. Featuring a brass joint plated with ternary alloy for durability, they support customization across multiple models. We also supply NEX-10, 4.3/10, SMA, N, 7/16 DIN, BNC, and TNC loads, connector adapters, and cable assemblies—fast shipping and quality assurance.

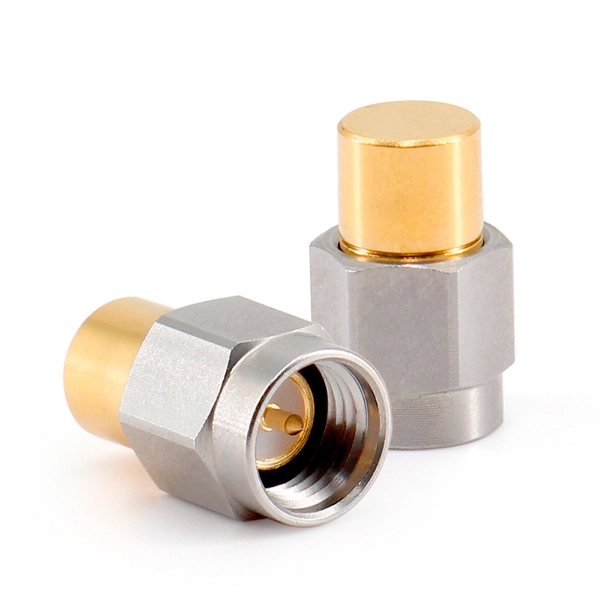

| Product Name | SMA RF load/Terminal |
| Frequency Range | DC-08 GHz |
| VSWR | 1.25:1 (max) |
| Impedance | 50Ω |
| Average Input Power | 10W |
| Dielectric withstand voltage | 1000V |
| Service life | ≥500 |
| Insulation Resistance | ≥5000MΩ |
| Connector Type | SMA-Male |
| Operation Temperature | "-55~+155°C (PE Cable -40~+85°C) |
| Inner Conductor Material | Beryllium bronze Gold plating |
| Externall Conductor Material | Stainless steel passivation |
| Insulator | PTFE |
When selecting RF coaxial loads, multiple parameters and specifications need to be considered. Firstly, the operating frequency represents the frequency range of signals that the load can handle, which can be selected as low-frequency load, high-frequency load, or ultra-high frequency load. Next is power capacity, which refers to the amount of signal energy that the load can handle. In addition, impedance is also an important parameter that determines the resistance of the load to the signal. Common impedance specifications include 50 ohm load, 75 ohm load, and 100 ohm load. Loss is another parameter that needs to be considered, which represents the degree to which the load absorbs the signal. According to the requirements of the application scenario, selecting appropriate loss parameters can ensure the stability and reliability of signal transmission.
