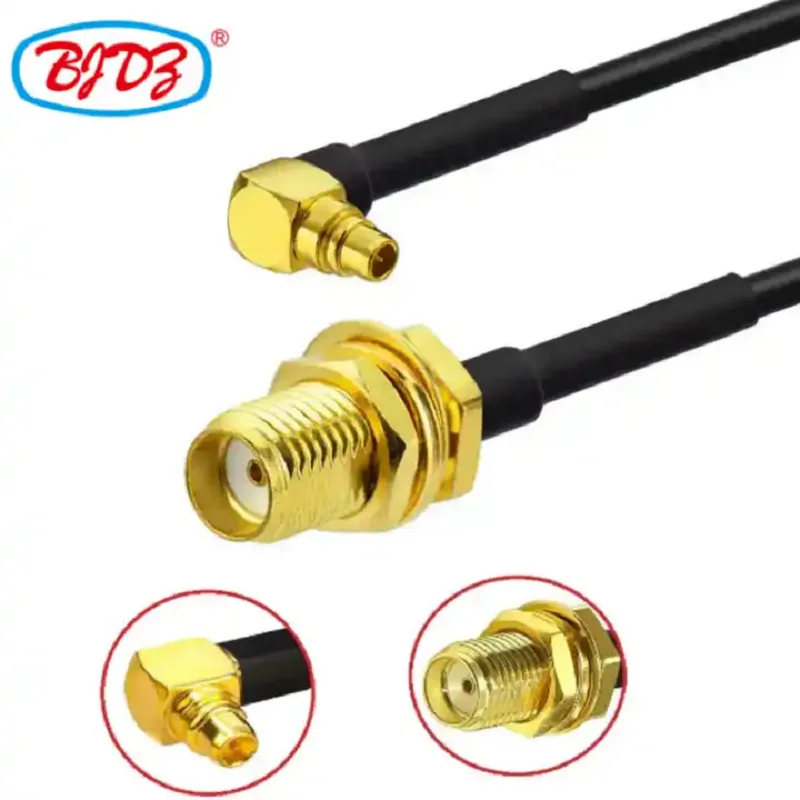

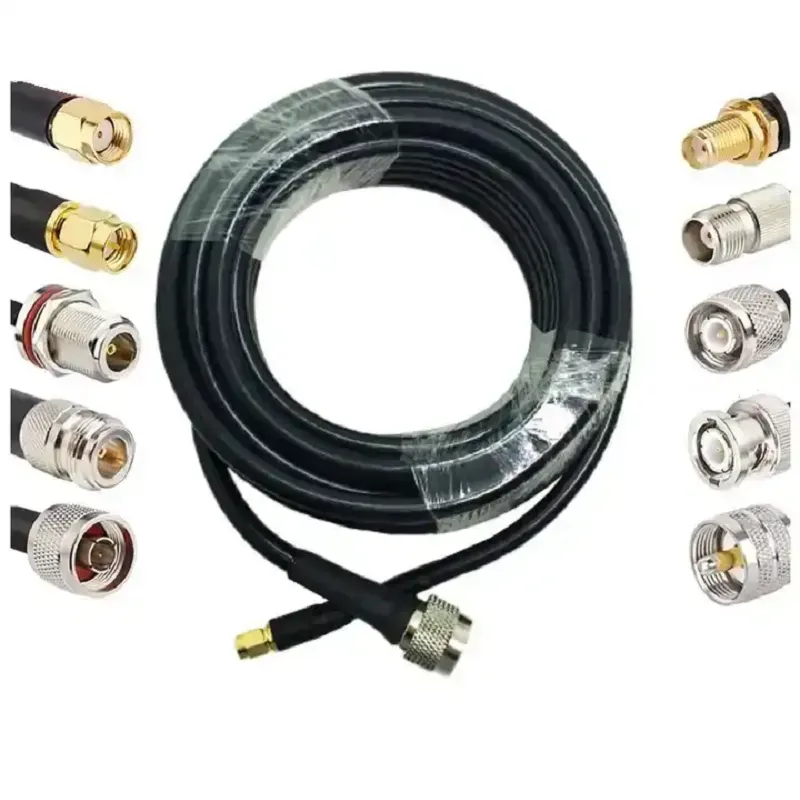

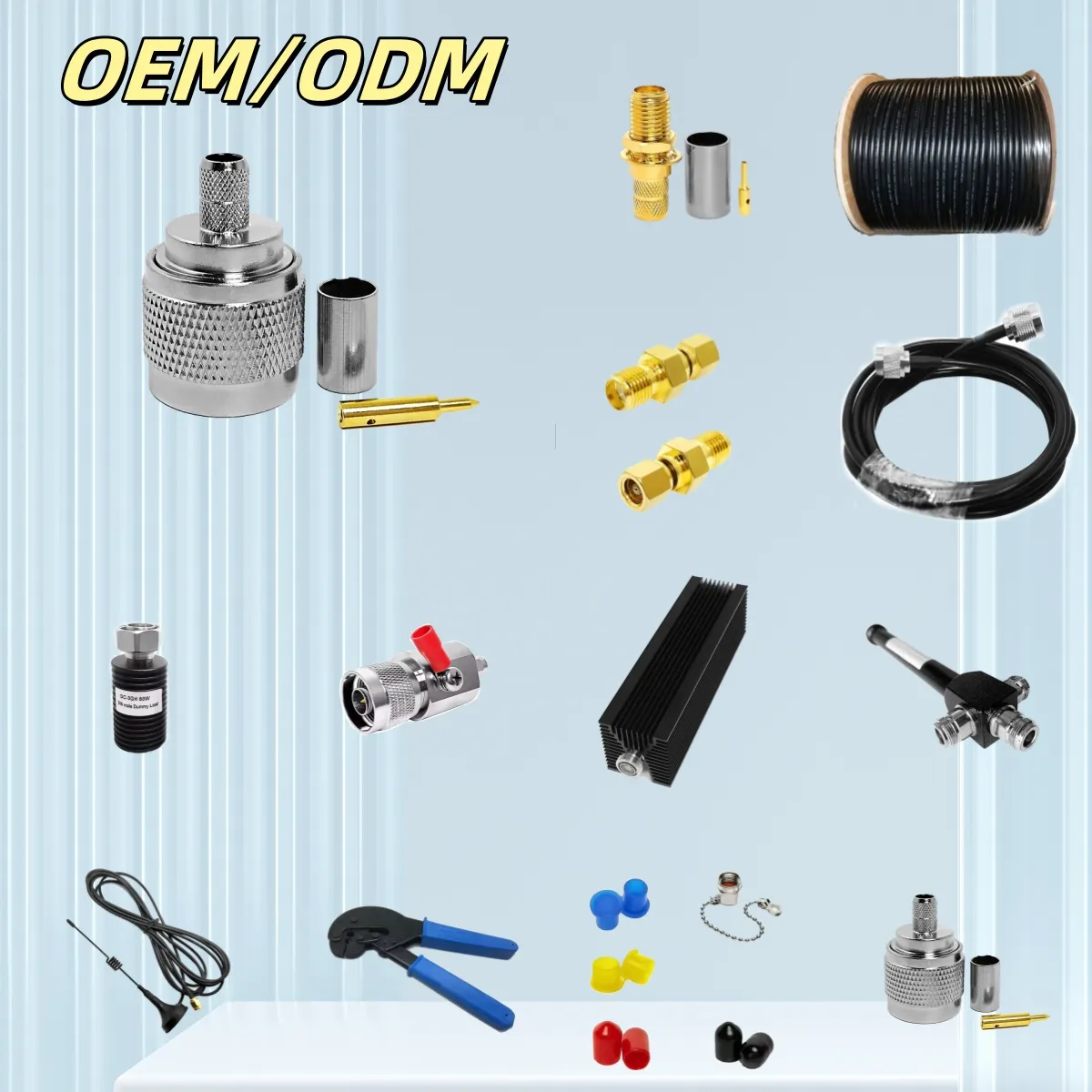

Engineered for industrial, telecom, defense, and 5G infrastructure, this multi-connector RF jumper cable assembly integrates seven industry-standard RF interfaces — SMA, N-Type, BNC, TNC, QMA, DIN 7/16, and SMB — across six high-performance coaxial cable types: RG316, RG174, RG223, RG58, LMR240, and LMR400. Designed for low-loss, high-reliability signal transmission in demanding environments, it eliminates adapter chains, reduces PIM, and ensures consistent performance from DC to 26.5 GHz.
Lead time
| Quantity (pieces) | Lead time (days) |
| 1 - 1000 | 10 |
| 1001 - 5000 | 15 |
| 5001 - 10000 | 25 |
| > 10000 | To be negotiated |
Price
| 50 - 4999 pieces | $1.88-2.22 |
| >= 5000 pieces | ﹩1.12-1.88 |
Cable Type | Outer Diameter | Impedance | Max Frequency | Attenuation (Typical) | Shielding | Operating Temp | Min Bend Radius | Jacket Material |
RG316 | 2.18 mm | 50 Ω | 26.5 GHz | 0.42 dB/m @ 1 GHz | 95% braid | -40°C to +85°C | 10 mm | PTFE |
RG174 | 2.79 mm | 50 Ω | 1 GHz | 0.84 dB/m @ 1 GHz | 87% braid | -25°C to +85°C | 15 mm | PVC |
RG223 | 5.08 mm | 50 Ω | 12.4 GHz | 0.27 dB/m @ 400 MHz | Double shield | -25°C to +70°C | 25 mm | PVC |
RG58 | 4.95 mm | 50 Ω | 1 GHz | 0.67 dB/m @ 1 GHz | 96% braid | -40°C to +85°C | 25 mm | PVC |
LMR240 | 6.35 mm | 50 Ω | 6 GHz | 0.38 dB/m @ 1 GHz | 95% braid + foil | -40°C to +85°C | 30 mm | PE |
LMR400 | 10.29 mm | 50 Ω | 6 GHz | 0.22 dB/m @ 1 GHz | Double shield | -40°C to +85°C | 50 mm | PE |
All connectors are 50 Ω, gold-plated brass or beryllium copper contacts, with 500+ mating cycles. PIM performance: < -150 dBc (per IEC 62037).

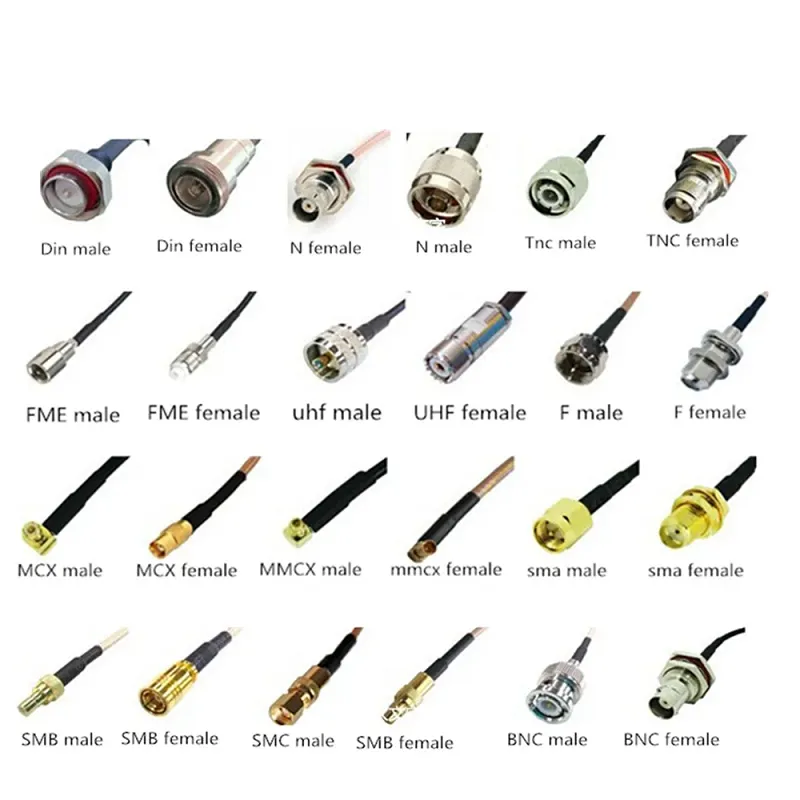

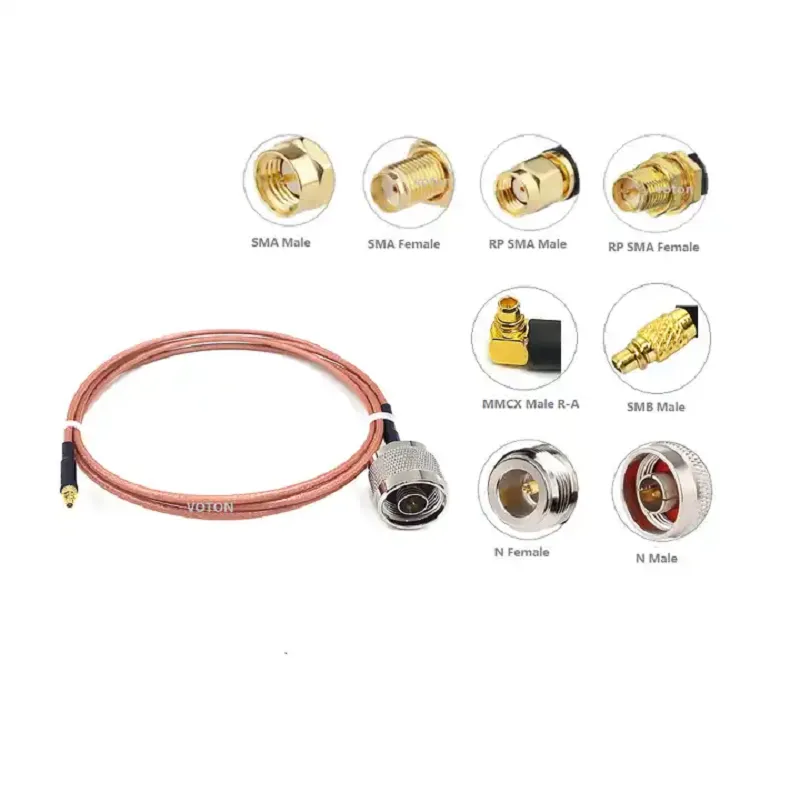

Connector | Max Frequency | Typical Use Case (Male Plug) | Typical Use Case (Female Jack) |
SMA | 26.5 GHz | VNA, 5G FR2 test ports, satellite comms | Lab instruments, radar modules |
N-Type | 18 GHz | Base station antennas, outdoor RF links | Cell tower combiners, macro site distribution |
BNC | 4 GHz | Test equipment, video surveillance | Control panels, EMI labs |
TNC | 11 GHz | Military vehicles, vibration-prone systems | Aircraft avionics, field deployable units |
QMA | 6 GHz | Rapid-deploy 5G small cells | Backhaul units, DAS hubs |
DIN 7/16 | 6 GHz | High-power base station feeds | Outdoor antenna feed points, macro sites |
SMB | 4 GHz | PCB-to-panel interconnects, IoT modules | Embedded systems, compact RF units |
DIN refers to DIN 7/16 (50Ω), not UHF. UHF connectors are obsolete above 100 MHz and excluded from this product line for performance integrity.
Replace 3–5 Adapters — Eliminates cumulative signal loss (up to 5 dB per cascade) and failure points
Low PIM Performance — Critical for 5G DAS, LTE, and public safety networks
Flexible to Rigid Options — RG174/RG316 for tight spaces; LMR400 for long-distance, low-loss runs
Industrial-Grade Durability — PTFE and PE jackets resist UV, chemicals, moisture, and thermal cycling
Full Shielding Integrity — 90–98% braid + foil shields ensure >90 dB EMI/RFI rejection
MIL-C-17 & RoHS Compliant — Certified for defense, aerospace, and telecom deployment
LMR400 reduces signal loss by 60% compared to RG58 at 1 GHz — ideal for long feeder runs in 5G small cell deployments.
5G mmWave Small Cells — LMR400 + SMA/N-Type for low-loss antenna-to-RRU links
Military Radar Systems — TNC + RG223 for vibration-resistant avionics interconnects
Satellite Ground Stations — SMA + RG316 for high-frequency uplink/downlink
EMC/RF Test Labs — Eliminates adapter-induced measurement drift in VNA setups
Industrial IoT Gateways — MCX/MMCX not included here; SMB + RG174 for sensor-to-controller links
Distributed Antenna Systems (DAS) — DIN 7/16 + LMR240 for high-power, low-PIM signal distribution
Automotive Radar Calibration — SMB + RG58 for 77 GHz sensor validation (with external amplifiers)
Standard Stock: 15cm, 30cm, 50cm lengths — pre-tested per batch
Custom Options:
Cable: Any combination of RG316, RG174, RG223, RG58, LMR240, LMR400
Connectors: Any male → any female pair (7×7 = 49 possible combinations)
Jacket Color: Black (standard), White, Red, Blue (for system ID)
Termination: Crimp or solder, with strain relief boots
Packaging: Anti-static ESD bags, 10 pcs/box, QR-coded test reports included
MOQ: 5 pieces
Lead Time: 3–5 days standard | 7–10 days custom
Support: Full S-parameter data (S11/S21), MIL-C-17 certification, RoHS/REACH declarations, and application engineering support
Compatible with Keysight, Rohde & Schwarz, Anritsu, Tektronix, and National Instruments test platforms. Not compatible with Fakra, NMO, or 75Ω systems.
