N-Type Female to BNC Male RF Cable | RG58 50 Ohm Coaxial Pigtail Jumper
Meta Description (SEO):
High-quality RG58 coaxial pigtail with N-Type Female and BNC Male crimp connectors. Perfect for base station testing, broadcast equipment, and instrument interconnects. Inquire now.
Key attributes
| Conductor Material | Copper |
| Insulation Material | PTFE |
| Jacket | PVC |
| Number of Conductors | 1 |
| Model Number | RP N Male to RP TNC Male for LMR200 Cable Assembly |
| Brand Name | BJDZ |
| Place of Origin | Jiangsu, China |
| Application | RF |
| Plating | Nickel or Tri-Metal plated |
| Material | Copper |
| Insulator | PTFE/Plastic |
| Certificate | CE/FCC/ROHS/ISO9001:2015 |
| Frequency Range (MHz) | DC~3GHz |
| Max Voltage | 335V max |
| Input Impendence (ohm) | 50 |
| V.S.W.R | ≤1.20+0.003f |
| Withstand Voltage | 1000V rms |
| Insulation resistance | ≥5000mΩ |
| Max Input Power (w) | 50 |
| Contact resistance | Center Contact ≤3mΩ |
| Center conductor retention force | 450N |
| Durability | ≥ 500(cycles) |
| Contact resistance | CenterContact ≤1mΩ Outer Contact ≤1mΩ |
| Voltage Standing Wave Ratio | Straight ≤ 1.15/6GHz Right angle ≤ 1.25/6GHz |
| Packaging and delivery | |
| Selling Units | Single item |
| Single package size | 308X1.1X1.1 cm |
| Single gross weight | 0.162kg |
Lead time
| Quantity (pieces) | Lead time (days) |
| 1 - 1000 | 10 |
| 1001 - 5000 | 15 |
| 5001 - 10000 | 25 |
| > 10000 | To be negotiated |
price
| 5 - 499 pieces | $2.47 |
| 500 - 999 pieces | $2.41 |
| >= 1000 pieces | $2.39 |
The Universal Bridge Between High-Power and Test Equipment

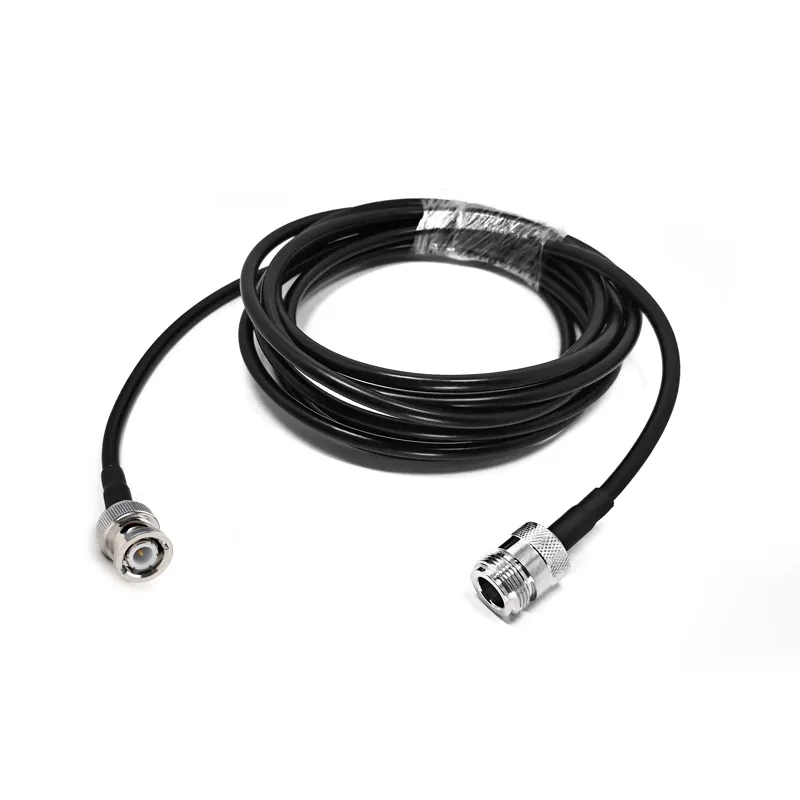

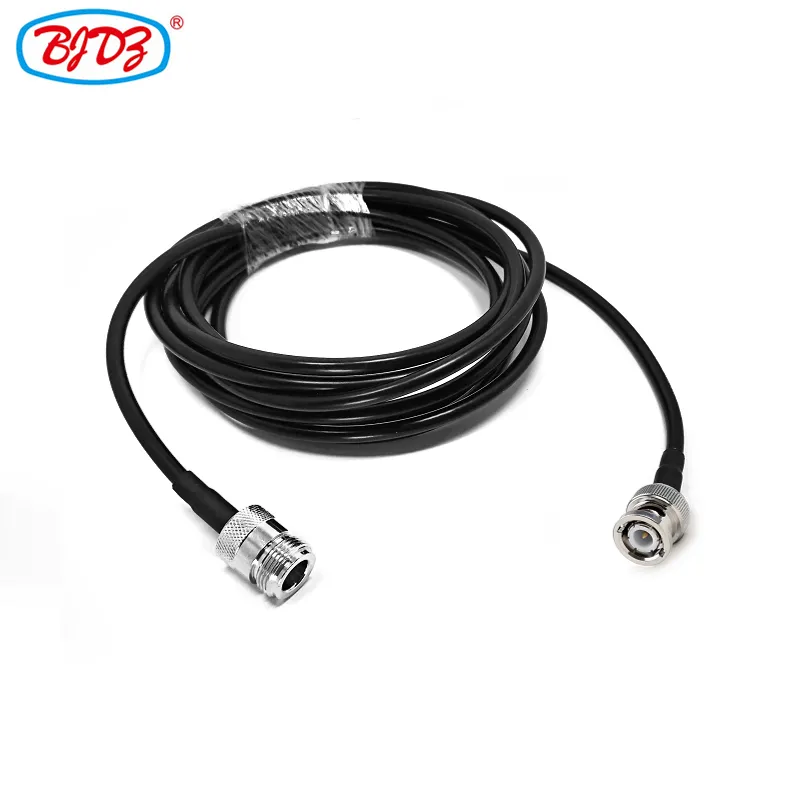

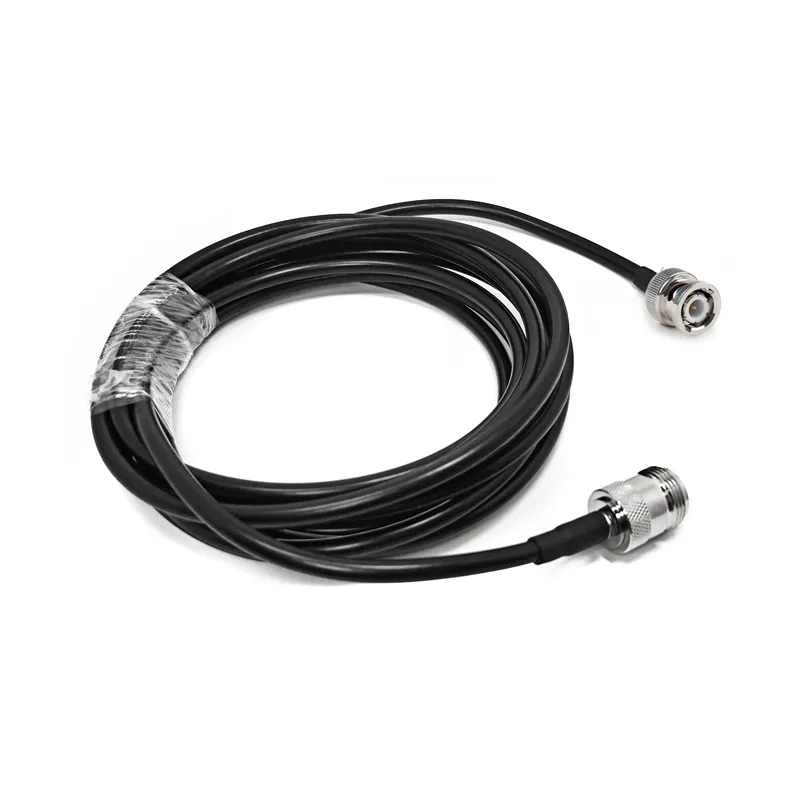

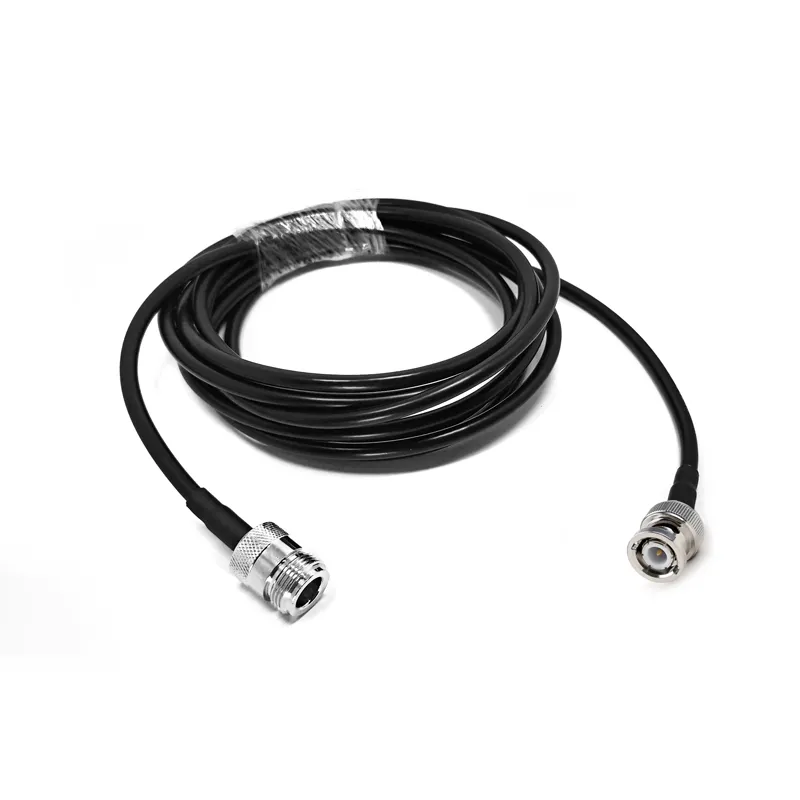

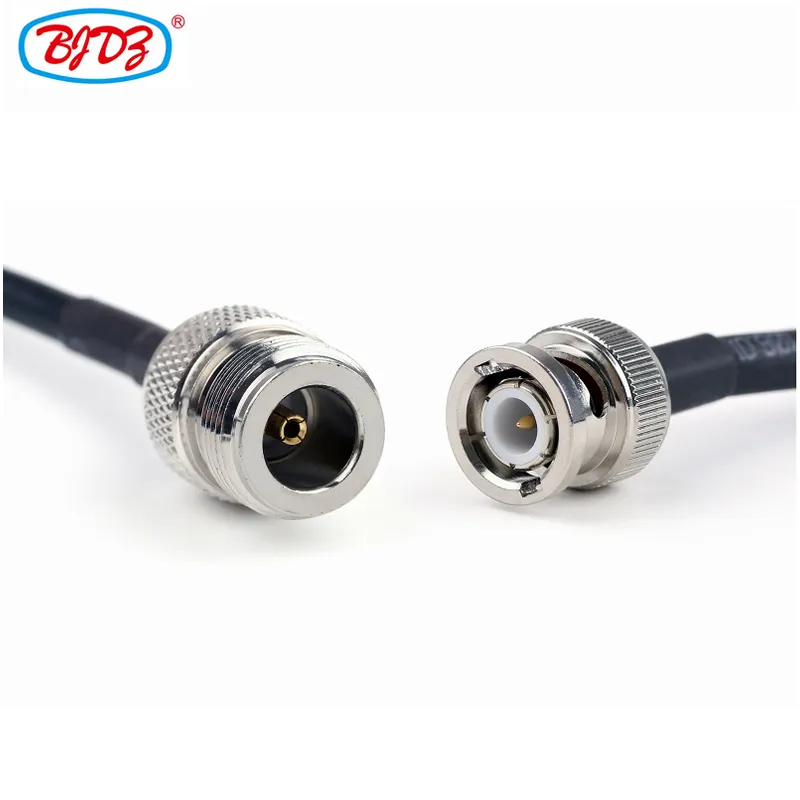

This specialized RG58 coaxial cable assembly is engineered to bridge the gap between rugged outdoor RF systems and standard laboratory instrumentation. It features a robust N-Type Female connector on one end—ideal for interfacing with high-power antennas or base stations—and a quick-connect BNC Male connector on the other, perfect for spectrum analyzers, oscilloscopes, and test benches. Utilizing precision crimp terminations for superior mechanical strength, this jumper ensures a reliable 50 Ohm impedance path with minimal signal degradation up to 4 GHz.
Feature | Specification |
Product Type | N-Type Female Jack to BNC Male Pin |
Cable Model | RG58 / RG58/U |
Impedance | 50 Ohm |
Center Conductor | Solid Copper Clad Steel (CCS) or Bare Copper |
Dielectric | Polyethylene (PE) Foam |
Shielding | Tinned Copper Braid (95% Coverage) |
Jacket | PVC (Standard), UV-Resistant options available |
Termination Style | Crimp (Both Ends) |
Frequency Range | DC to 4 GHz |
VSWR | ≤ 1.30:1 (Typical) |
Temperature Range | -55°C to +85°C (PVC), -65°C to +165°C (FEP/Teflon) |
RoHS Status | Compliant |

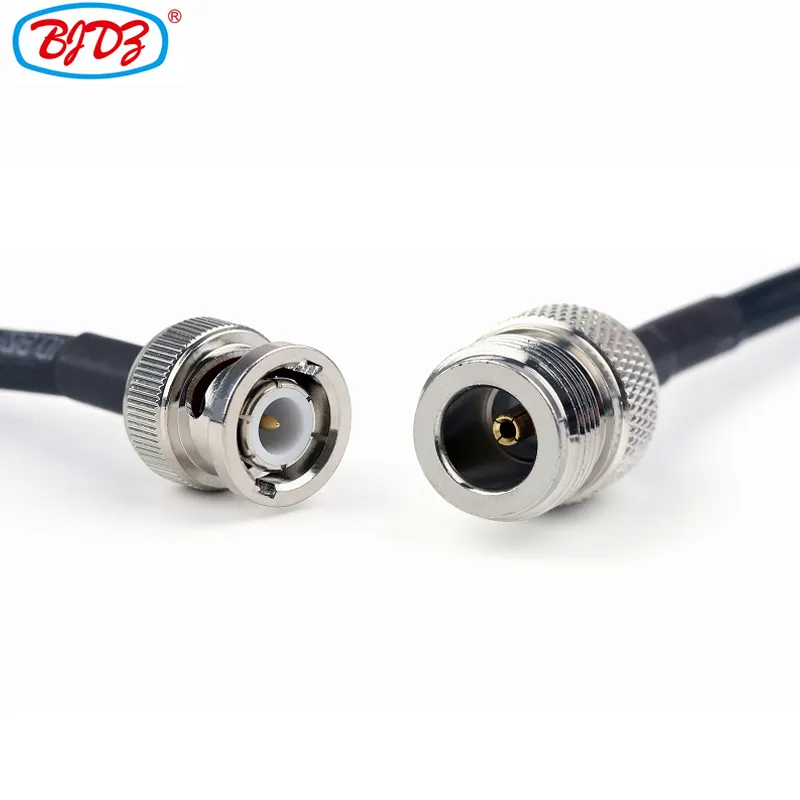

1. N-Type Female & BNC Male Interface Combination
N-Type Female: The threaded interface provides a secure, weather-resistant connection capable of handling higher power levels, making it the industry standard for base station antennas and broadcast transmitters.
BNC Male: The bayonet-style coupling allows for rapid, tool-free connection and disconnection, which is essential for frequent testing and troubleshooting in R&D labs and field service scenarios.
2. RG58: The Industry Standard Coaxial Cable
RG58 remains the most widely used 50-ohm coaxial cable for general-purpose RF applications.
Balanced Performance: Offers excellent flexibility combined with moderate attenuation, making it ideal for short-to-medium distance patch cables and jumpers.
Robust Shielding: The high-density tinned copper braid provides effective protection against external electromagnetic interference (EMI).
3. Precision Crimp Termination
Unlike solder-only connections, our crimp termination process guarantees long-term reliability.
Mechanical Strength: A dedicated crimp ferrule secures the cable's braided shield to the connector body, preventing pull-outs and shielding discontinuities even under repeated flexing.
Gas-Tight Connection: Ensures low contact resistance and stable VSWR performance over thousands of mating cycles.
Telecom Infrastructure: Connecting base station antennas (N-Type) to portable test instruments (BNC) during site commissioning and maintenance.
Broadcast & Media: Interfacing TV/radio transmission equipment with monitoring scopes and signal generators.
Test & Measurement: Serving as a durable patch cable for network analyzers, spectrum analyzers, and lab bench setups.
Radar & Navigation Systems: Providing reliable signal routing between high-power radar modules and control interfaces.
1. Precision Termination Process:
Laser Trimming: Ensures precise stripping of the jacket and dielectric without nicking the center conductor.
Dual Crimp Technology: We utilize specific crimp dies for both the center pin and the outer ferrule, ensuring optimal compression ratios for RG58 cables.
100% Testing: Every single cable is tested on a Vector Network Analyzer (VNA) to verify Return Loss and Insertion Loss metrics up to 4 GHz.
2. Traceability:
Each batch is serialized, and test data is archived to meet ISO 9001 standards, providing full traceability for your quality assurance needs.
Standard Packaging: Individually poly-bagged to prevent connector damage.
Labeling: Clear labels indicate cable type, length, and batch code.
Carton: Packed in sturdy export cartons suitable for international shipping (ISTA 3A certified).
Lead Time: Standard lead time is 7-10 working days after order confirmation.
Q1: What is the difference between RG58 and RG174?
A: RG58 has a larger diameter (approx. 5mm) and thicker shielding compared to RG174 (2.49mm). This makes RG58 more durable, easier to handle for crimping, and better suited for medium-frequency applications up to 4 GHz, whereas RG174 is designed for ultra-miniaturized, space-constrained environments.
Q2: Can I get this cable with a right-angle BNC connector?
A: Yes. While the straight BNC Male is standard, we offer Right-Angle (90-degree) BNC configurations for specific panel-mounting or tight-space routing requirements. Please specify your requirement during the inquiry.
Q3: Is RG58 suitable for outdoor use?
A: The standard PVC jacket is primarily for indoor use. For outdoor or harsh environmental installations (e.g., rooftop antennas), we recommend upgrading to an UV-Resistant PE jacket or a Teflon (FEP) jacket, which offers superior moisture and temperature resistance.
Q4: What is the minimum order quantity (MOQ)?
A: As an OEM manufacturer, our standard MOQ is 100 pieces. However, we offer sample pricing for prototyping and testing purposes.
This N-Type to BNC pigtail is not just a wire; it is an engineered signal path. By combining the high-power capability of the N-Type interface with the quick-connect convenience of BNC, all terminated on the universally trusted RG58 platform, we deliver a product that ensures your critical RF signals arrive intact across diverse testing and operational environments.
