Organization: Cable components help achieve clean and orderly wiring, simplify maintenance and troubleshooting work, and save time and resources.
Team R&D Strength: The company integrates independent product technology development and application, attaches importance to independent intellectual property rights, always adheres to independent R&D and continuous innovation, continuously strengthens its own technology investment, and provides professional and reliable products and supporting services for the RF communication industry.
| Key attributes | |
| Conductor Material | Copper |
| Insulation Material | PTFE |
| Jacket | PVC |
| Number of Conductors | 1 |

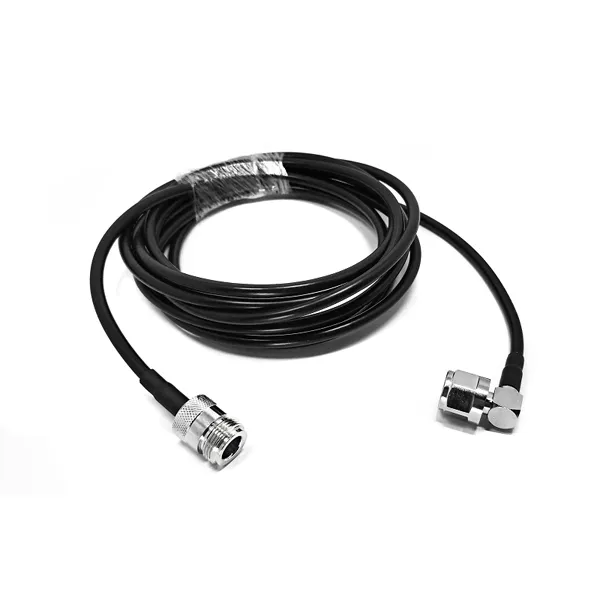

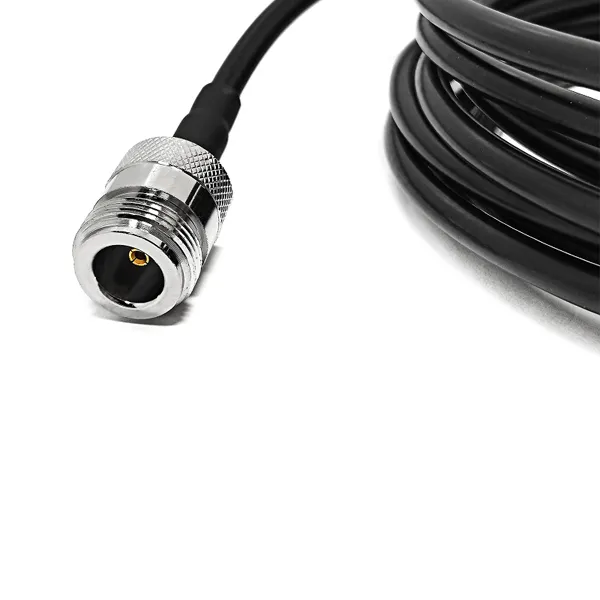

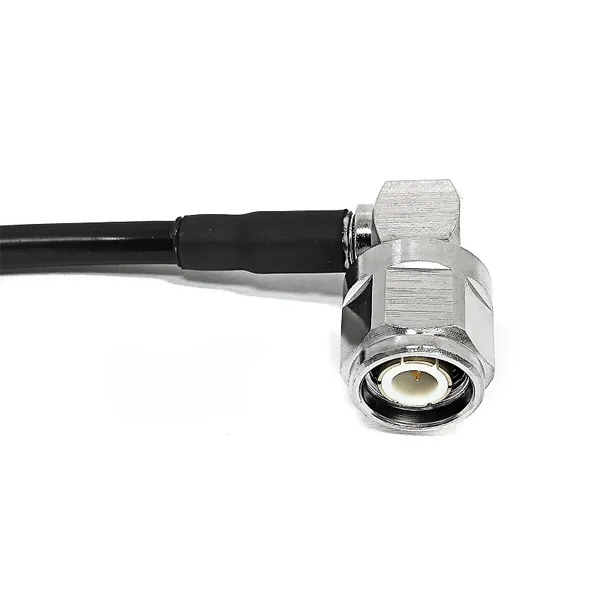

| Model Number | TNC Male to N Female For RG316 Cable Assembly |
| Brand Name | BJDZ |
| Place of Origin | Jiangsu, China |
| Application | RF |
| Plating | Nickel or Tri-Metal plated |
| Material | Copper |
| Insulator | PTFE/Plastic |
| Certificate | CE/FCC/ROHS/ISO9001:2015 |
| Frequency Range (MHz) | DC~12.4GHz |
| Max Voltage | 335V max |
| Input Impendence (ohm) | 50 |
| V.S.W.R | ≤1.20+0.003f |
| Withstand Voltage | 1000V rms |
| Insulation resistance | ≥5000mΩ |
| Max Input Power (w) | 50 |
| Contact resistance | Center Contact ≤3mΩ |
| Center conductor retention force | 450N |
| Durability | ≥ 500(cycles) |
| Contact resistance | CenterContact ≤1mΩ Outer Contact ≤1mΩ |
| Voltage Standing Wave Ratio | Straight ≤ 1.15/6GHz Right angle ≤ 1.25/6GHz |
