Customization: One of the prominent features of cable components is their strong adaptability. Customized cable components can meet specific requirements, allowing integration of various connectors, lengths, and shielding options. Cable components can be customized to meet specific requirements for integration.
Organization: Cable components help achieve clean and orderly wiring, simplify maintenance and troubleshooting work, and save time and resources.
| Key attributes | |
| Conductor Material | Copper |
| Insulation Material | PTFE |
| Jacket | PVC |
| Number of Conductors | 1 |

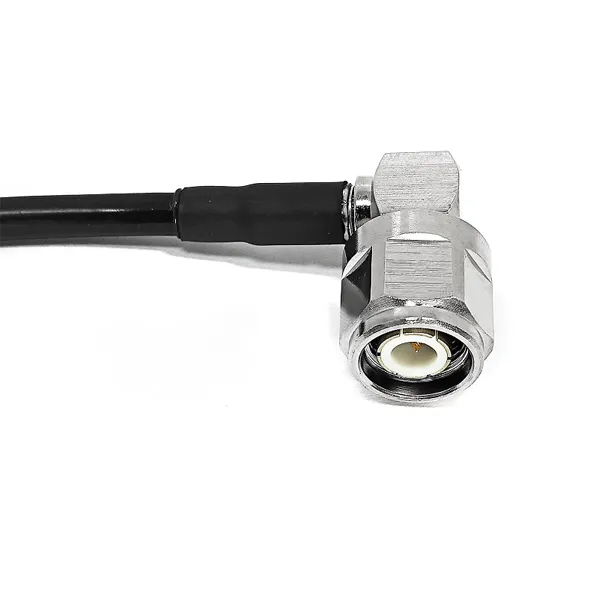

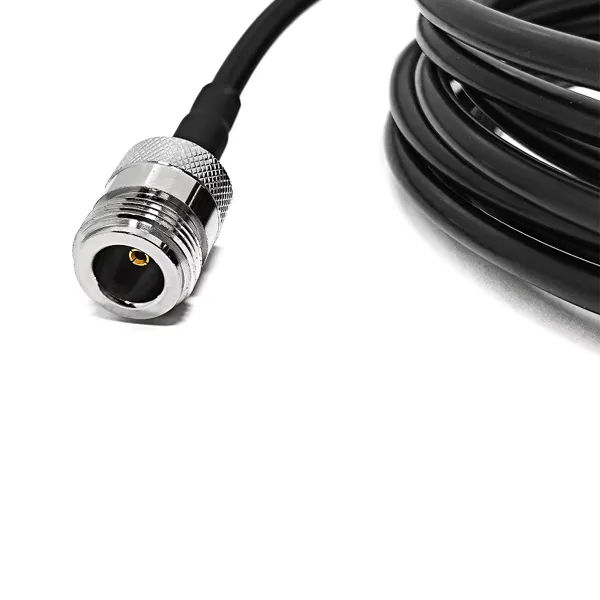

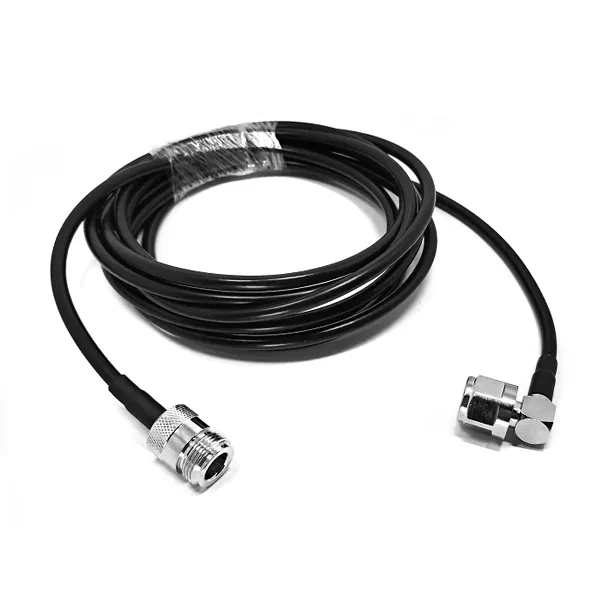

| Model Number | tnc male 90 to n female lmr195 |
| Brand Name | BJDZ |
| Place of Origin | Jiangsu, China |
| Application | RF |
| Plating | Nickel or Tri-Metal plated |
| Material | Copper |
| Insulator | PTFE/Plastic |
| Certificate | CE/FCC/ROHS/ISO9001:2015 |
| Impedance | 50Ω |
| Frequency | DC-11GHz |
| VSWR | 1.15+0.02f |
| Insulation Resistance | 5000MΩ |
| Durability | 500 cycles |
| Describe | 50ohm calibration |
| Temperature Range | -55~+155°C (PE Cable -40~+85°C) |
| Vibration | 100m/S2 (10~500Hz), 10g |
| Insertion Loss | ≤ 0.24dB/6GHz |
| Withstanding Voltage | 2500Vr.m.s at sea level |
| Working Voltage | 1000Vr.m.s at sea level |
| Contact resistance | Center Contact ≤1mΩ Outer Contact ≤1mΩ |
| Voltage Standing Wave Ratio | Straight ≤ 1.15/6GHz Right angle ≤ 1.25/6GHz |
| Packaging and delivery | |
| Selling Units | Single item |
| Single package size | 22X18X3 cm |
| Single gross weight | 0.08kg |
| Lead time | |
| Quantity (pieces) | Lead time (days) |
| 1 - 1000 | 10 |
| 1001 - 5000 | 15 |
| 5001 - 10000 | 25 |
| > 10000 | To be negotiated |
| Price | |
| 5 - 1999 pieces | $2.88 |
| 2000 - 4999 pieces | $2.66 |
| >= 5000 pieces | $2.22 |
1. Our company has a group of high-precision and advanced professional RF technology developers, and a deep understanding of RF technology theory and application is the core part of current technology.
2. Binjiang Electronics is a high-tech private company that integrates research and development, production, and sales. By continuously innovating core technologies and leading advantages in segmented fields, we focus on providing a full range of signal interconnection products, solutions, and services to core customers in multiple industries and fields worldwide.
