Welcome to the ultimate solution for your RF connectivity needs. Our Factory Direct SMA Male Plug to TNC/BNC/MCX/MMCX/SMB/SMC/N Type/UHF/CRC9/TS9/F Male/Female RG174 RF Antenna Extension Coax Cable is engineered to provide seamless signal transmission across a wide range of applications. Designed for professionals who demand reliability, flexibility, and high performance, this cable assembly is the go-to choice for industries ranging from telecommunications to aerospace. Whether you are setting up a wireless network, connecting test equipment, or installing IoT devices, our product ensures that your signal integrity remains uncompromised.
Key attributes
| Conductor Material | Copper |
| Insulation Material | PTFE |
| Jacket | PVC |
| Number of Conductors | 1 |
| Model Number | SMA Male for RG174 Cable Assembly |
| Cable Type | RG174 cable |
| Brand Name | BJDZ |
| Place of Origin | Jiangsu, China |
| Application | RF |
| Plating | Nickel |
| Material | Copper |
| Insulator | PTFE/Plastic |
| Certificate | CE/FCC/ROHS/ISO9001:2015 |
| Length | Custom |
| Frequency Range (MHz) | DC-4GHz |
| Max Voltage | 335V max |
| Temperature range | -55~+155°C (PE Cable -40~+85°C) |
| Input Impendence (ohm) | 50 |
| V.S.W.R | 1.15+0.02f |
| Vibration | 100m/s2 (10~500Hz) |
| Withstand Voltage | 2500V r.m.s at sea level |
| Working Voltage | 1000Vr.m.s at sea level |
| Insertion Loss | ≤ 0.24dB/6GHz |
| Insulation resistance | ≥5000mΩ |
| Max Input Power (w) | 50 |
| Contact resistance | Center Contact ≤3mΩ |
| Center conductor retention force | 450N |
| Durability | ≥ 500(cycles) |
| Contact resistance | CenterContact ≤1mΩ Outer Contact ≤1mΩ |
| Voltage Standing Wave Ratio | Straight ≤ 1.15/6GHz Right angle ≤ 1.25/6GHz |
Packaging and delivery
| Selling Units | Single item |
| Single package size | Custom |
| Single gross weight | Custom |
Lead time
| Quantity (pieces) | Lead time (days) |
| 1 - 1000 | 10 |
| 1001 - 5000 | 15 |
| 5001 - 10000 | 25 |
| > 10000 | To be negotiated |

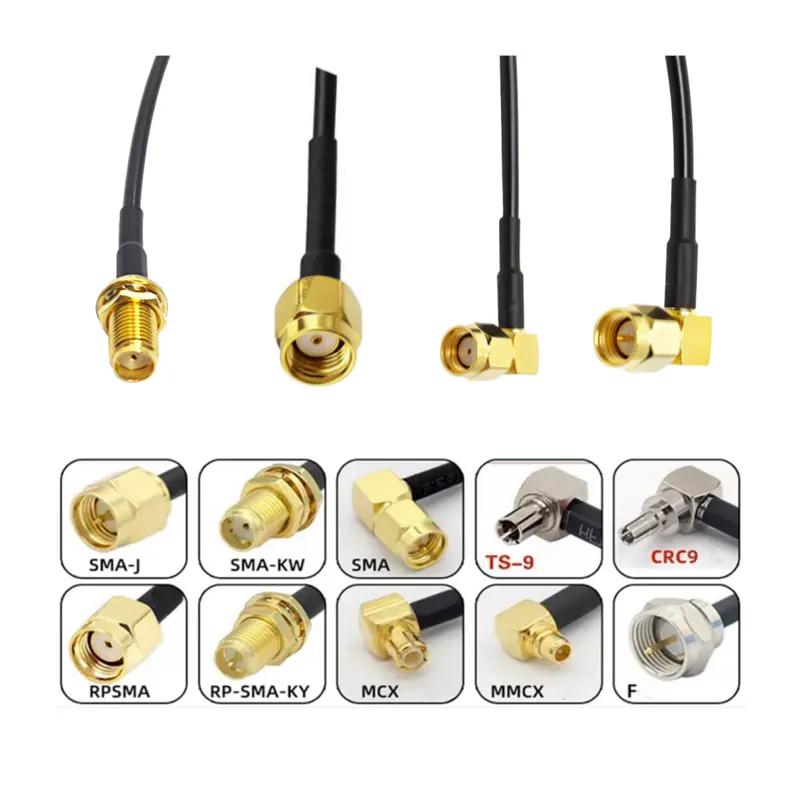

Our cable assembly is built with precision and quality in mind. The core of this product is the RG174 coaxial cable, known for its excellent balance of flexibility and low signal loss. This makes it ideal for tight spaces where rigid cables cannot fit. The cable is terminated with a standard SMA Male Plug on one end, compatible with a vast array of devices, and offers a choice of connectors on the other end, including TNC, BNC, MCX, MMCX, SMB, SMC, N Type, UHF, CRC9, TS9, and F-type in both male and female configurations.
| Parameter | Specification |
| Cable Type | RG174 Coaxial Cable |
| Primary Connector | SMA Male Plug |
| Secondary Connectors | TNC, BNC, MCX, MMCX, SMB, SMC, N Type, UHF, CRC9, TS9, F Male/Female |
| Impedance | 50 Ohms (standard), 75 Ohms (F-type option) |
| Frequency Range | DC to 3 GHz (varies by connector type) |
| VSWR | ≤ 1.2:1 (typical) |
| Temperature Range | -40°C to +85°C |
| Jacket Material | PVC (Polyvinyl Chloride) for durability and flexibility |
| Center Conductor | Tinned Copper |
| Shielding | Braided tinned copper for superior EMI protection |
Versatility and Compatibility: One of the standout features of our product is its versatility. By offering a wide range of connector options, we ensure that our cable can be used in virtually any scenario. Whether you need to connect a GPS module with an MMCX connector to a router with an SMA port, or you need to adapt an industrial sensor with a Molex connector to a test bench, our cable has you covered. This eliminates the need to stock multiple types of cables, saving you time and money.
Superior Signal Integrity: In the world of RF, signal loss is the enemy. Our RG174 cable is designed to minimize attenuation, ensuring that your signal travels from point A to point B with minimal degradation. The high-quality shielding prevents electromagnetic interference, which is crucial in environments with a lot of electronic noise. This results in clearer signals, faster data transfer, and more reliable connections.
Durability and Build Quality: We understand that cables often have to endure harsh conditions. That is why our assembly is built to last. The PVC jacket is resistant to abrasion, moisture, and UV rays, making it suitable for both indoor and outdoor use. The connectors are precision-machined from high-grade brass and plated with gold or nickel to ensure excellent conductivity and corrosion resistance. This attention to detail ensures that our cables can withstand repeated plugging and unplugging without failing.
The applications for our SMA Male to Various Connectors RG174 cable are virtually limitless. Here are just a few examples.
Telecommunications: Connecting antennas to base stations, routers, and modems.
Wireless Networking: Extending Wi-Fi antennas for better coverage in homes and offices.
Test and Measurement: Used in laboratories and production lines for calibrating and testing RF equipment.
IoT and M2M: Connecting sensors and modules in smart city, agriculture, and industrial automation projects.
Aerospace and Defense: Used in avionics and military communications where reliability is paramount.
Medical Devices: Connecting RF components in medical imaging and monitoring equipment.
We understand that every project has unique requirements. That is why we offer extensive customization options. If you do not see the exact combination you need, do not worry. We can customize the cable length, connector types, plating, and even add custom labeling or branding. Whether you need a 10cm pigtail for a compact device or a 10-meter extension cable for an outdoor antenna, we can manufacture it to your exact specifications.
When you purchase from us, you are not just buying a cable; you are investing in peace of mind. We offer factory-direct pricing, ensuring that you get the best value for your money. Our team of experts is always available to assist you with technical inquiries, helping you choose the right configuration for your application. We pride ourselves on fast turnaround times and reliable shipping, ensuring that your order reaches you when you need it.
For bulk orders and OEM inquiries, please contact our sales team directly. We look forward to serving your RF connectivity needs and becoming your trusted partner in innovation.
