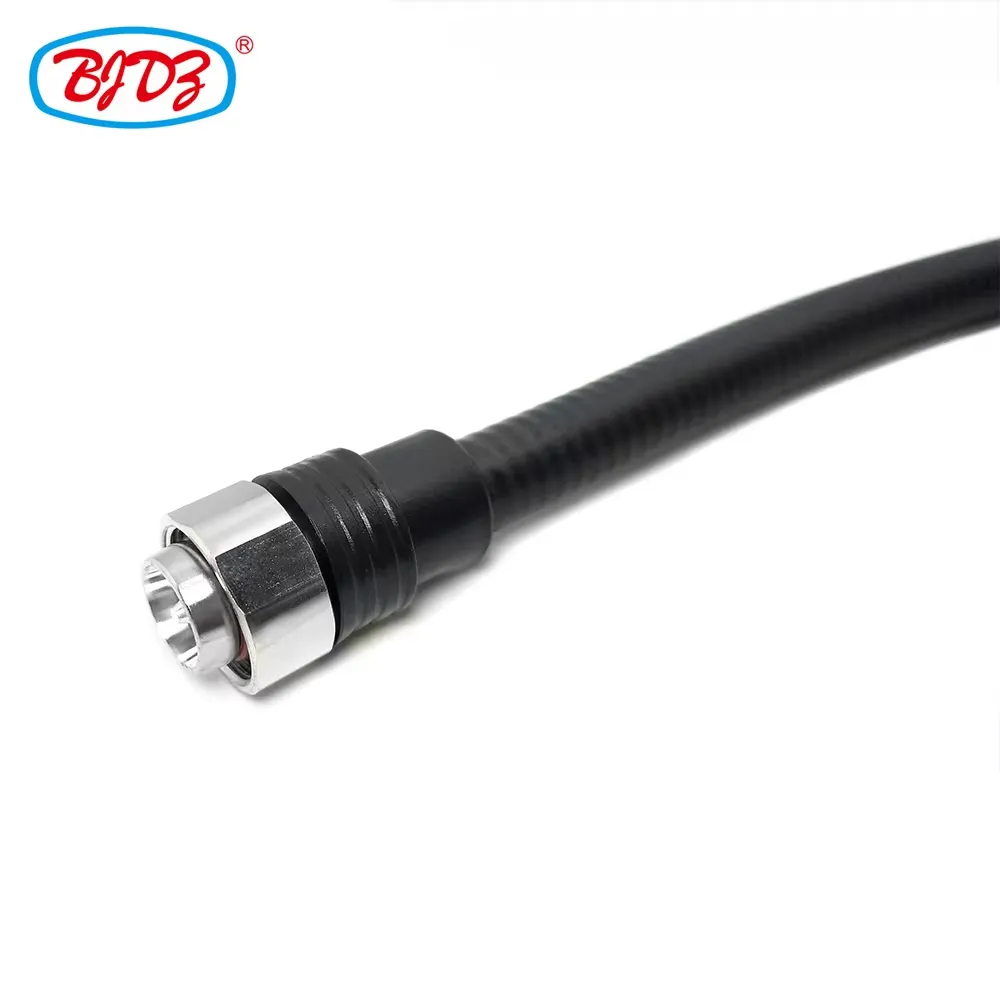

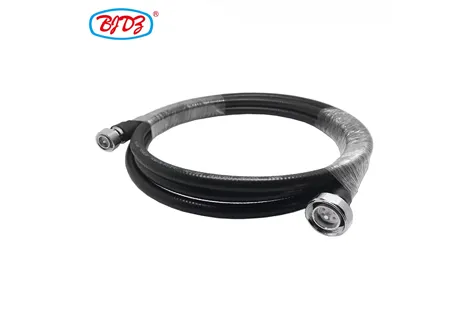

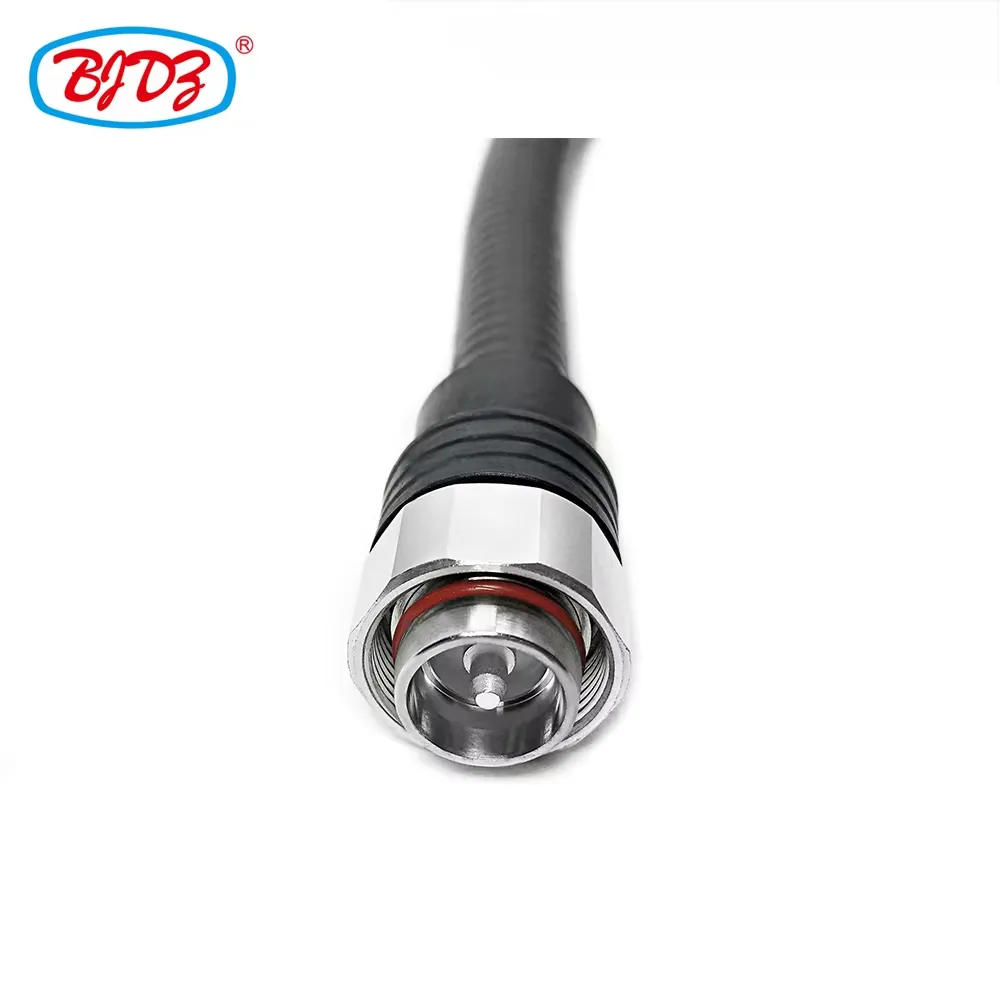

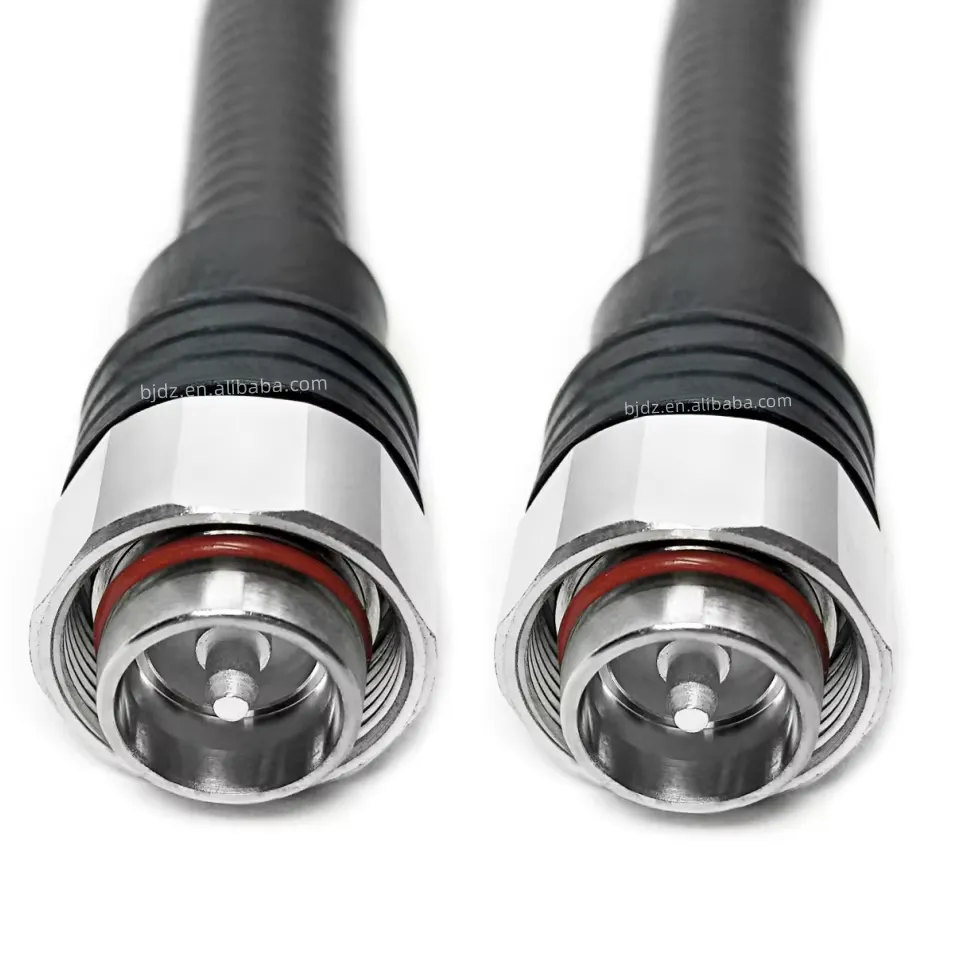

Premium 4.3-10 Male Plug to Mini DIN Male Plug Superflex 1/2" Copper Jumper Cable Assembly
Zhenjiang Binjiang Electronic Co., Ltd. offers this high-performance RF jumper cable assembly designed for complex connectivity demands. Featuring a 4.3-10 Male connector on one end and a Mini DIN Male connector on the other, this assembly bridges the gap between modern antenna systems and specialized equipment. Built with 1/2" Superflex Copper Jumper Cable, this solution delivers superior flexibility and low signal attenuation, making it ideal for dense cabling environments in base stations and indoor distributed antenna systems (DAS).
Key attributes
| Conductor Material | Copper |
| Insulation Material | PTFE |
| Jacket | PVC |
| Number of Conductors | 1 |
| Model Number | MINI DIN male to 4.3/10 male for 1/2" Flexible cable |
| Cable Type | 1/2" Flexible cable |
| Brand Name | BJDZ |
| Place of Origin | Jiangsu, China |
| Application | RF |
| Plating | Nickel |
| Material | Copper |
| Insulator | PTFE/Plastic |
| Certificate | CE/FCC/ROHS/ISO9001:2015 |
| Length | 25CM |
| Frequency Range (MHz) | DC-4GHz |
| Max Voltage | 335V max |
| Temperature range | -55~+155°C (PE Cable -40~+85°C) |
| Input Impendence (ohm) | 50 |
| V.S.W.R | 1.15+0.02f |
| Vibration | 100m/s2 (10~500Hz) |
| Withstand Voltage | 2500V r.m.s at sea level |
| Working Voltage | 1000Vr.m.s at sea level |
| Insertion Loss | ≤ 0.24dB/6GHz |
| Insulation resistance | ≥5000mΩ |
| Max Input Power (w) | 50 |
| Contact resistance | Center Contact ≤3mΩ |
| Center conductor retention force | 450N |
| Durability | ≥ 500(cycles) |
| Contact resistance | CenterContact ≤1mΩ Outer Contact ≤1mΩ |
| Voltage Standing Wave Ratio | Straight ≤ 1.15/6GHz Right angle ≤ 1.25/6GHz |
Lead time
| Quantity (pieces) | Lead time (days) |
| 1 - 1000 | 10 |
| 1001 - 5000 | 15 |
| 5001 - 10000 | 25 |
| > 10000 | To be negotiated |
Price
| 5 - 499 pieces | US$5.50 |
| 500 - 4,999 pieces | US$5.20 |
| 5,000 - 9,999 pieces | US$4.50 |
| >= 10,000 pieces | US$4.20 |
Dual Interface Compatibility: Seamlessly connects 4.3-10 and Mini DIN systems, ensuring interoperability in mixed-equipment setups.
Superflex 1/2" Cable: Offers exceptional flexibility for easy installation in tight spaces while maintaining the low-loss characteristics of a 1/2" diameter cable.
High Conductivity: Constructed with high-purity copper, ensuring maximum signal integrity and power handling capability.
Robust Design: Precision-machined connectors provide secure locking and excellent shielding performance.
Customization Ready: Available in various lengths and configurations to meet specific site requirements.
Parameter | Specification |
Product Type | RF Jumper Cable Assembly / Pigtail |
Connector A | 4.3-10 Male (IEC 61169-54) |
Connector B | Mini DIN Male |
Cable Type | 1/2" Superflex Copper Cable (Low Loss) |
Impedance | 50 Ohm |
VSWR | ≤ 1.15 (Typical) |
Frequency Range | DC - 3 GHz (Dependent on cable type) |
Application | 5G Base Stations, DAS Systems, Telecom Infrastructure |
Material | Brass / Copper Alloy (Gold or Nickel Plated) |
Cable Jacket | UV-resistant PE or PVC |
High-Tech Manufacturer: As a National High-Tech Enterprise, we control quality from R&D to delivery.
Certified Quality: Our products meet ISO9001, ISO14001, RoHS, and REACH standards.
Global Supply: Trusted by partners in North America, Europe, and the Domestic Market.
OEM/ODM Service: We support custom drawings and samples to meet your exact technical specs.
Telecom Infrastructure: 5G/4G Base Transceiver Stations (BTS)
Indoor Coverage: DAS (Distributed Antenna Systems) for stadiums and malls
Broadcasting: RF signal transmission systems
Industrial Connectivity: Test & Measurement setups
Zhenjiang Binjiang Electronic Co., Ltd. – Innovator in RF Technology
Established in 2010 and headquartered in Zhenjiang, Jiangsu, we are a leading supplier of microwave devices. Our core products include RF Connectors (SMA, N, BNC, 4.3-10, etc.), Adapters, Surge Arrestors, Power Dividers, and custom Cable Assemblies.
We serve Fortune 500 companies and operate a digital manufacturing system covering R&D, production, and logistics. With a mission to empower global connectivity, we provide "China Intelligent Manufacturing" solutions to high-tech fields worldwide.
Need a Custom Solution?
We offer Drawing-based customization and Sample-based customization services.
Contact Us: Get a free quote for your specific cable length and connector requirements.
MOQ: Negotiable based on project needs.
