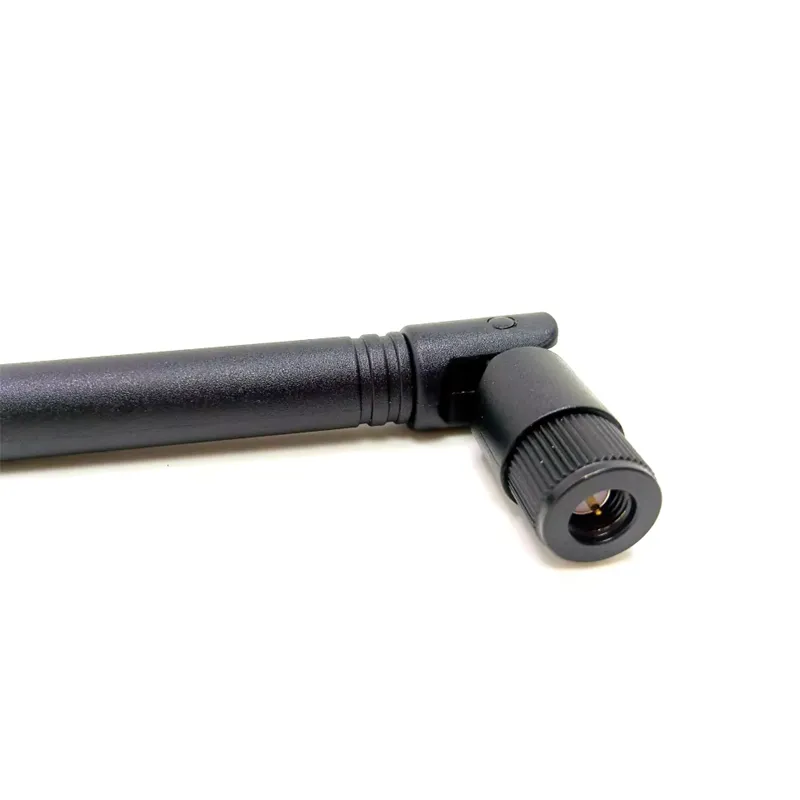

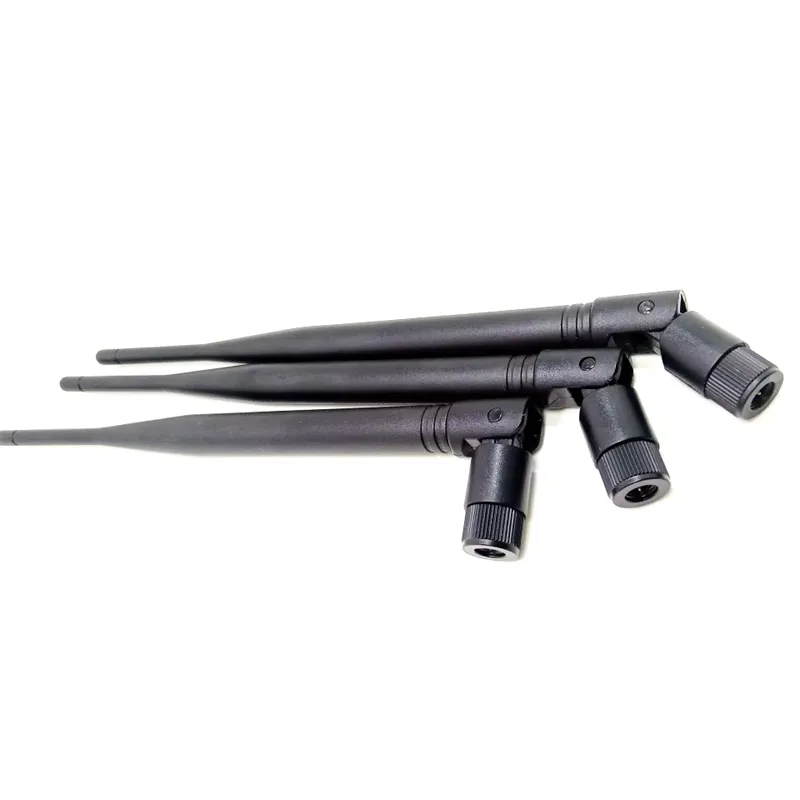

This high-performance 5 dBi rubber duck antenna is precision-tuned for the 868 MHz and 915 MHz ISM bands, delivering reliable long-range connectivity for LoRaWAN, Zigbee, Z-Wave, RFID, and industrial IoT applications. Engineered with a durable TPE/rubber overmold and reinforced strain relief, it withstands harsh outdoor and industrial environments while maintaining consistent RF performance across temperature extremes. The standard SMA male connector ensures plug-and-play compatibility with gateways, sensors, modems, and embedded modules from leading manufacturers.
Unlike generic omnidirectional antennas that sacrifice gain for size, this 5 dBi design extends link budget by 6–8 dB over 2–3 dBi alternatives, enabling 2–3× greater range or improved penetration through walls and metal enclosures—critical for smart metering, agricultural monitoring, warehouse automation, and asset tracking deployments. Available in stock for immediate shipment, it eliminates lead-time risks for urgent projects or pilot builds.
Fully customizable to your exact requirements: adjust frequency tuning (868/915/920 MHz), connector type (SMA/RP-SMA/N-Type), cable length/pigtail, color, labeling, or mechanical dimensions. All units are manufactured to high-quality standards with 100% electrical validation and pre-certified with CE, FCC, and ROHS for global compliance. Sourced directly from our ISO-certified facility, this antenna offers unmatched availability, consistency, and value for OEMs and system integrators scaling LPWAN networks.
| Parameter | Value | Unit | Note |
| Frequency Range | 868 / 915 | MHz | Dual-band optimized; ±5 MHz tolerance |
| Gain | 5 | dBi | Peak gain at center frequency |
| VSWR | ≤ 1.5:1 | — | Across 868±5 & 915±5 MHz |
| Polarization | Vertical | — | Omnidirectional azimuth pattern |
| Impedance | 50 | Ω | Standard RF interface |
| Max Input Power | 50 | W | CW rating |
| Connector | SMA Male | — | Gold-plated; torque-rated |
| Cable Type | RG174 / LMR-100 | — | Low-loss; customizable length |
| Overall Length | 180 | mm | Including connector base |
| Diameter | 13 | mm | Slim profile for tight spaces |
| Weight | 35 | g | Lightweight for portable devices |
| Operating Temp | -40 to +85 | °C | Industrial/military grade |
| Waterproof Rating | IP67 | — | Sealed overmold + gasketed connector |
| Certifications | CE, FCC, ROHS | — | Pre-certified; docs included |
| Stock Status | In Stock | — | Ships within 24–48 hours |
● Dual-Band 868/915 MHz Optimization — Precisely tuned for both EU (868 MHz) and US/AU (915 MHz) ISM bands with ≤1.5:1 VSWR, eliminating need for region-specific SKUs and simplifying global product variants.
● True 5 dBi High Gain — Extends link budget by 6–8 dB vs. standard 2–3 dBi rubber ducks, enabling reliable communication at 2–3× distance or through dense urban/industrial obstructions without increasing TX power.
● Rugged Industrial Construction — UV-stabilized TPE overmold with integrated strain relief resists cracking, abrasion, chemicals, and moisture; IP67 sealing protects against dust/water ingress in outdoor/agricultural deployments.
● In-Stock Immediate Availability — Standard SMA 5 dBi units ship within 24–48 hours from warehouse inventory, de-risking time-sensitive projects and avoiding production delays from supplier shortages.
● Full Customization Support — Modify frequency, connector, cable, color, labeling, or mechanics to match your device; samples in 5–7 days, production in 15–20 days with low MOQs.
● High-Quality Consistency — 100% factory-tested for VSWR, gain, and mechanical integrity; <0.5% field failure rate ensures predictable network performance across thousands of deployed nodes.
● LoRaWAN Gateways & End Nodes
● Smart Metering (Gas/Water/Electric)
● Agricultural Soil & Weather Sensors
● Warehouse Asset Tracking Tags
● Industrial Equipment Monitoring
● Building Automation Controllers
● Retail Inventory Management
● Environmental Monitoring Stations
● Pet/Livestock GPS Trackers
● Emergency Alert Systems
● <0.5% Defect Rate at Scale — ISO 9001-certified manufacturing ensures every antenna meets high-quality specs, preventing costly field replacements in hard-to-access IoT installations.
● Global Compliance Included — CE/FCC/ROHS documentation ships standard, saving 4–8 weeks of independent testing for multinational IoT deployments.
● Trusted in 80+ Countries — Supplied to LoRa Alliance members, utility providers, and industrial OEMs with 99% positive Alibaba rating.
● Fortune 500 Qualified Supplier — Full traceability, PPAP-capable processes, and JIT delivery meet enterprise/IoT platform procurement standards.
● 24/7 RF Engineering Support — Free link budget analysis, site survey guidance, and interference mitigation advice to maximize network uptime and ROI.
📩 Discuss volume discounts or custom tuning at minna_liao@bjdz.top.
Tailor this antenna to your exact application needs:
● Frequency Tuning — 868, 915, 920, or custom ISM/sub-GHz bands (e.g., 433, 490, 780 MHz)
● Connector Options — SMA, RP-SMA, N-Type, TNC, U.FL, or IPEX MHF4
● Cable Configurations — Pigtail lengths (5 cm–5 m), low-loss LMR-200/400, or right-angle adapters
● Color & Branding — Black, white, gray, or custom RAL; logo printing or laser engraving
● Mechanical Mods — Shortened/lengthened body, threaded base, magnetic mount, or panel-mount variant
● Packaging — Bulk, retail blister, or OEM tray packaging
Samples ready in 5–7 business days; production completes in 15–20 days. MOQ: 100 units for custom configs; standard 868/915 MHz SMA 5 dBi units ship same day from stock.
📩 Send target frequency, connector spec, or quantity to minna_liao@bjdz.top for instant quote and lead time.
Q: Can this antenna work on both 868 MHz and 915 MHz simultaneously?
A: Yes. It’s dual-band optimized with ≤1.5:1 VSWR at both 868±5 MHz and 915±5 MHz. Ideal for devices sold globally without hardware changes. For single-band precision tuning, specify primary band when ordering—we’ll optimize matching network accordingly.
Q: How does 5 dBi compare to 3 dBi in real-world range?
A: Every 3 dB gain doubles effective range in free space. 5 dBi provides ~6–8 dB advantage over typical 2–3 dBi rubber ducks, translating to 2–3× greater range or significantly better penetration through walls/foliage. Actual gains depend on environment—contact us for site-specific link budget analysis.
Q: Is the SMA connector reversible or gender-specific?
A: Standard configuration is SMA male (threads on antenna). RP-SMA female (reverse polarity) also available for WiFi/LTE modules requiring RP-SMA. Specify connector gender/type when ordering to avoid compatibility issues.
Q: Can I use this outdoors without additional protection?
A: Yes. IP67-rated sealing protects against rain, dust, and humidity. UV-stabilized rubber prevents cracking after years of sun exposure. For submerged or high-pressure washdown environments, specify IP68 variant.
Q: What’s the minimum order for custom versions?
A: 100 units for frequency/connector/cable customization. Standard 868/915 MHz SMA 5 dBi has no MOQ—order as few as 1 unit from stock. Volume pricing starts at 500+ units.
Q: Do you provide test reports for quality verification?
A: Every batch includes VSWR/gain test summaries. Full anechoic chamber patterns and environmental stress data available upon request. Third-party lab coordination supported for carrier/utility acceptance testing.
