Organization: Cable components help achieve clean and orderly wiring, simplify maintenance and troubleshooting work, and save time and resources.
Team R&D Strength: The company integrates independent product technology development and application, attaches importance to independent intellectual property rights, always adheres to independent R&D and continuous innovation, continuously strengthens its own technology investment, and provides professional and reliable products and supporting services for the RF communication industry.
| Key attributes | |
| Conductor Material | Copper |
| Insulation Material | PTFE |
| Jacket | PVC |
| Number of Conductors | 1 |

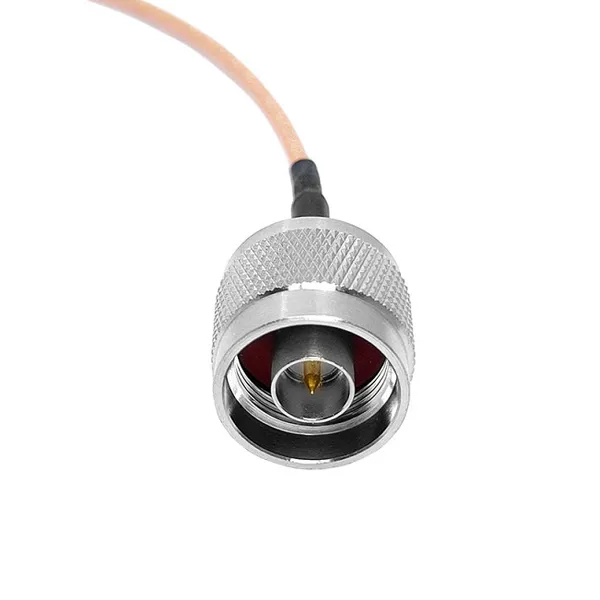

| Model Number | BNC Male Plug to N Type Male RG316 |
| Brand Name | BJDZ |
| Place of Origin | Jiangsu, China |
| Application | RF |
| Length | 30CM(11.81in) |
| Plating | Nickel or Tri-Metal plated |
| Material | Copper |
| Insulator | PTFE/Plastic |
| Certificate | CE/FCC/ROHS/ISO9001:2015 |
| Impedance | 50Ω |
| Frequency | DC-11GHz |
| VSWR | 1.15+0.02f |
| Insulation Resistance | 5000MΩ |
| Durability | 500 cycles |
| Describe | 50ohm calibration |
| Temperature Range | -55~+155°C (PE Cable -40~+85°C) |
| Vibration | 100m/S2 (10~500Hz), 10g |
| Insertion Loss | ≤ 0.24dB/6GHz |
| Withstanding Voltage | 2500Vr.m.s at sea level |
| Working Voltage | 1000Vr.m.s at sea level |
| Center conductor retention force | 450N |
| Contact resistance | Center Contact ≤1mΩ Outer Contact ≤1mΩ |
| Voltage Standing Wave Ratio | Straight ≤ 1.15/6GHz Right angle ≤ 1.25/6GHz |
| Packaging Delivery | |
| Selling Units | Single item |
| Single package size | 11X12X5 cm |
| Single gross weight | 0.1 kg |
| Lead time | |
| Quantity (pieces) | Lead time (days) |
| 1 - 1000 | 10 |
| 1001 - 5000 | 15 |
| 5001 - 10000 | 25 |
| > 10000 | To be negotiated |
| Price | |
| 5 - 299 pieces | $1.50 |
| 300 - 999 pieces | $1.25 |
| >= 1000 pieces | $1.11 |
1. Assembly line: We have a professional assembly OEM production base that can provide you with high-quality RF and microwave component processing services.
2. Precision CNC machining: Using 4-axis and 5-axis CNC machine tools, precision machining can be carried out according to the requirements of different structures, ensuring the dual guarantee of mechanical and electrical performance of the product.
