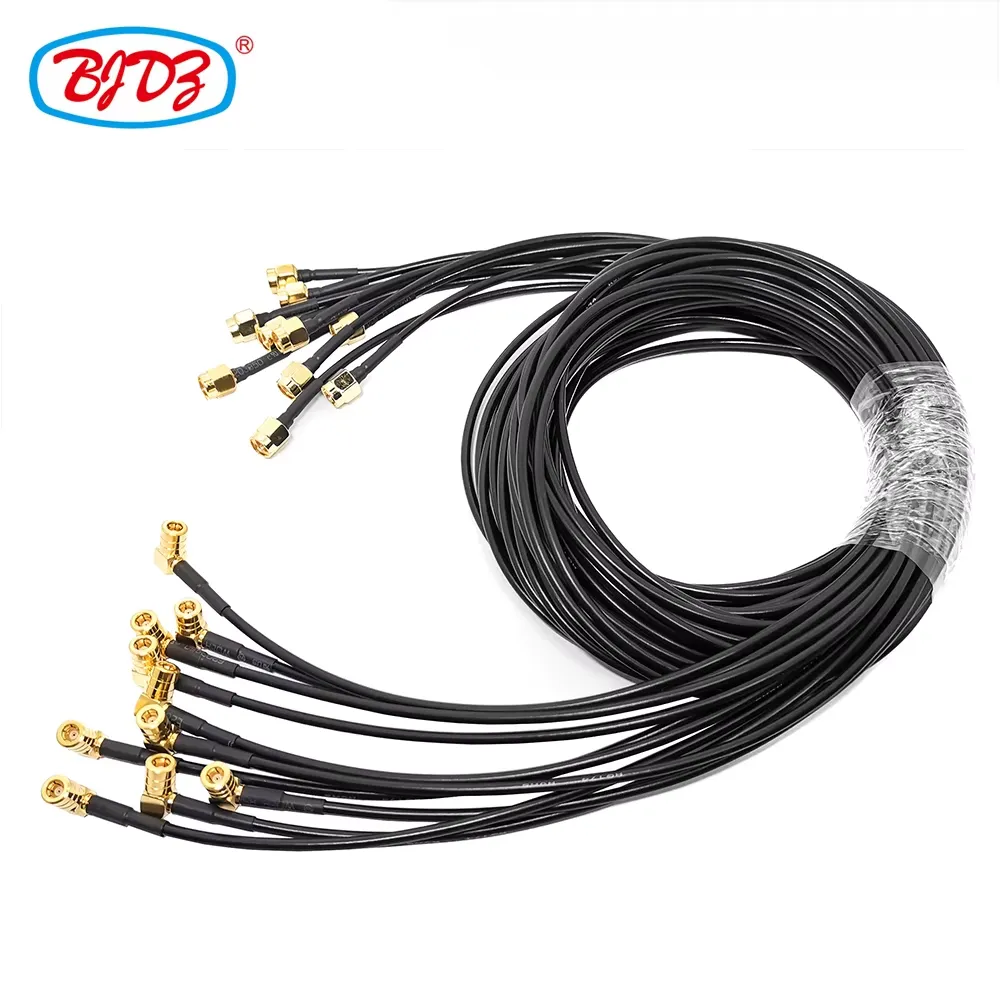

Engineered for compact RF systems requiring reliable signal transmission, this 90° Right Angle SMB Male Plug to SMA Male Plug pigtail cable with RG174 coaxial cable delivers robust connectivity in space-constrained environments. Designed for IoT gateways, UAV telemetry, test equipment, and wireless sensor networks, it bridges antennas and PCB modules with minimal signal loss and maximum mechanical stability.
Key attributes
| Conductor Material | Copper |
| Insulation Material | PTFE |
| Jacket | PVC |
| Number of Conductors | 1 |
| Model Number | SMB Male to SMA Male for rg174 Pigtail Cable |
| Cable Type | RG174 cable |
| Brand Name | BJDZ |
| Place of Origin | Jiangsu, China |
| Application | RF |
| Plating | Nickel |
| Material | Copper |
| Insulator | PTFE/Plastic |
| Certificate | CE/FCC/ROHS/ISO9001:2015 |
| Length | 50CM |
| Frequency Range (MHz) | DC-6GHz |
| Max Voltage | 335V max |
| Temperature range | -55~+155°C (PE Cable -40~+85°C) |
| Input Impendence (ohm) | 50 |
| V.S.W.R | 1.15+0.02f |
| Vibration | 100m/s2 (10~500Hz) |
| Withstand Voltage | 2500V r.m.s at sea level |
| Working Voltage | 1000Vr.m.s at sea level |
| Insertion Loss | ≤ 0.24dB/6GHz |
| Insulation resistance | ≥5000mΩ |
| Max Input Power (w) | 50 |
| Contact resistance | Center Contact ≤3mΩ |
| Center conductor retention force | 450N |
| Durability | ≥ 500(cycles) |
| Contact resistance | CenterContact ≤1mΩ Outer Contact ≤1mΩ |
| Voltage Standing Wave Ratio | Straight ≤ 1.15/6GHz Right angle ≤ 1.25/6GHz |
Lead time
| Quantity (pieces) | Lead time (days) |
| 1 - 1000 | 10 |
| 1001 - 5000 | 15 |
| 5001 - 10000 | 25 |
| > 10000 | To be negotiated |
Price
| 5 - 999 pieces | US$2.35 |
| 1,000 - 4,999 pieces | US$1.85 |
| 5,000 - 9,999 pieces | US$1.25 |
| >= 10,000 pieces | US$1.19 |
Packaging and delivery
| Selling Units | Single item |
| Package size per batch | 20X15X3 cm |
| Gross weight per batch | 0.5 kg |
Parameter | Specification |

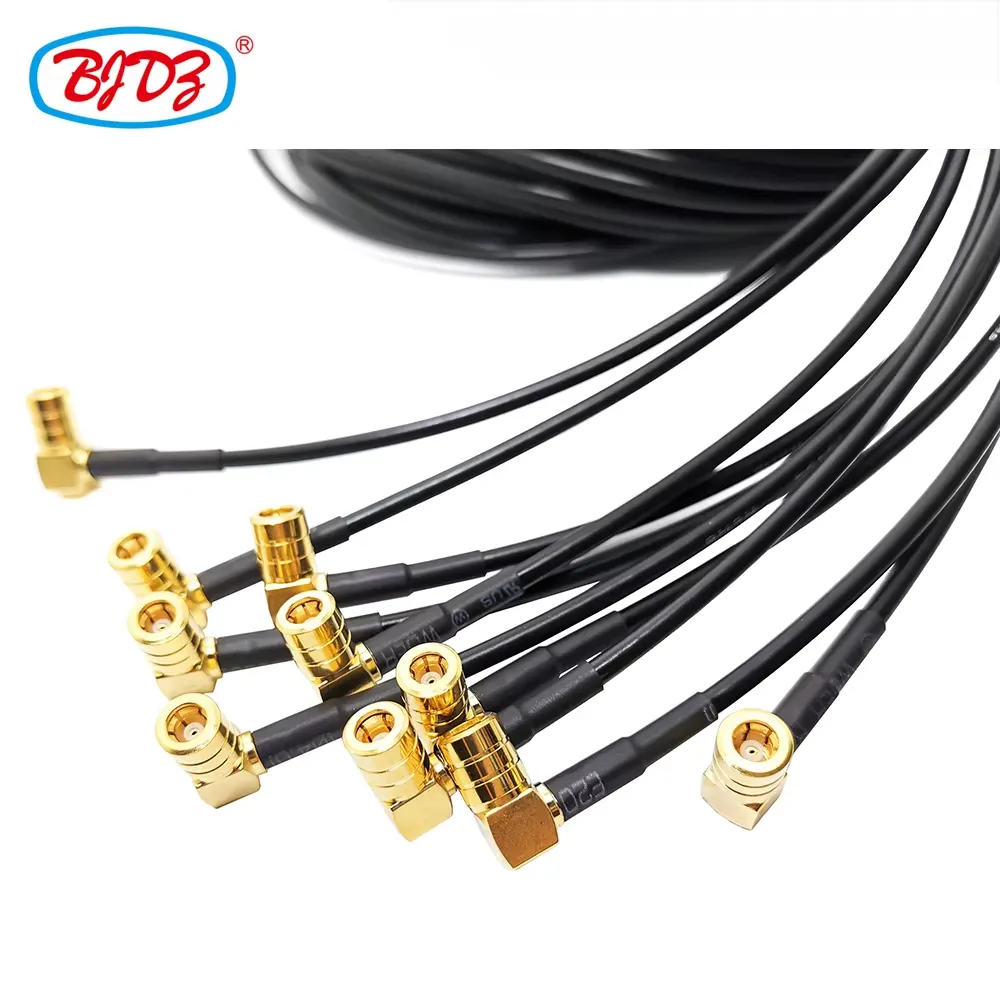

Connector A | SMB Male Plug (90° Right Angle) — Snap-fit, 50Ω, rated up to 4 GHz, gold-plated center pin |

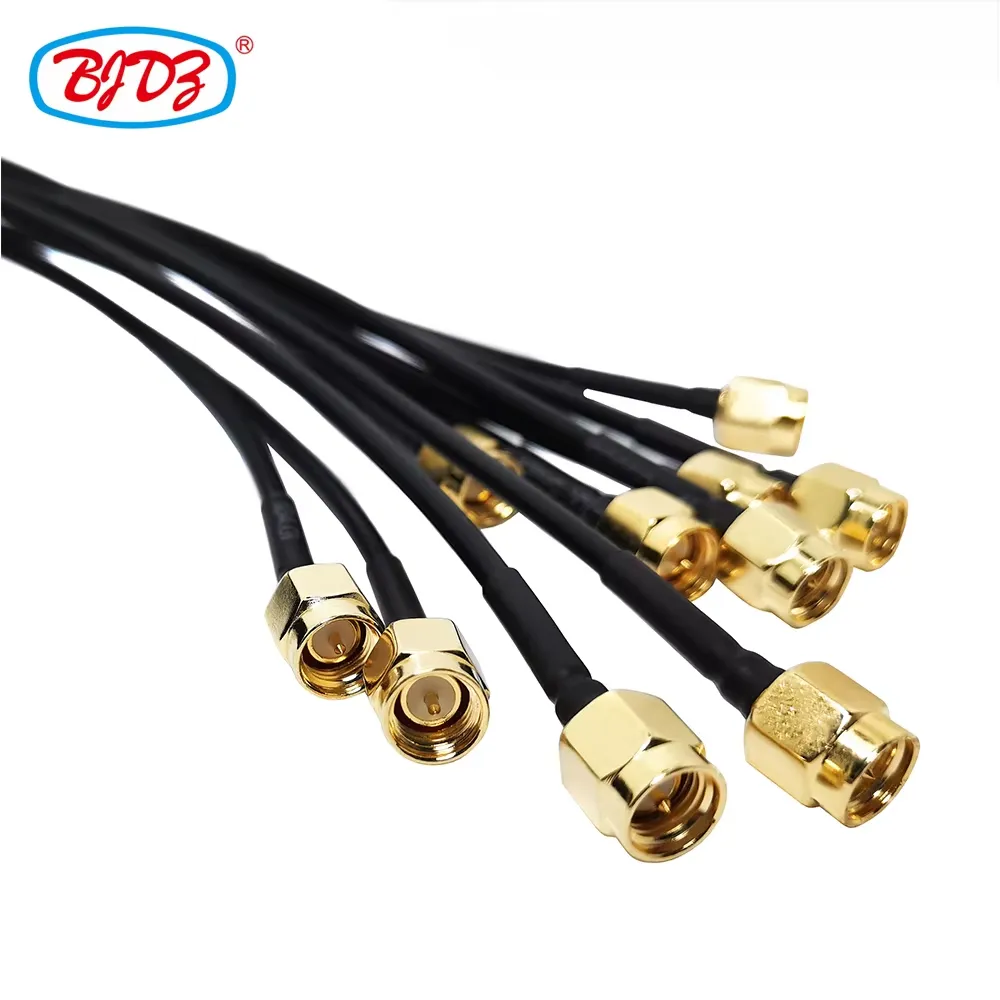

Connector B | SMA Male Plug — Threaded coupling, 50Ω, rated DC–18 GHz, brass body with gold plating |
Cable Type | RG174 / M17/119-RG174 — Ultra-flexible, low-weight coaxial cable |
Impedance | 50 Ω ±2% |
Velocity of Propagation | 66% |
Capacitance | 101 pF/m |
Max Operating Frequency | 1 GHz (optimal) — usable up to 2.4 GHz with controlled loss |
Insertion Loss (Typical) | 0.45 dB/m @ 2.4 GHz |
Shielding | Tinned copper braid (≥90% coverage) — ≥40 dB attenuation up to 1 GHz |
Outer Jacket | Flexible PVC — Black, UV-resistant, RoHS compliant |
Operating Temperature | -40°C to +75°C |
Minimum Bend Radius | 25 mm |
Mating Cycles | ≥500 (SMB), ≥1000 (SMA) |
Certifications | RoHS, REACH, MIL-STD-348 compliant |
This pigtail is the go-to solution for engineers deploying RF links in tight enclosures:
IoT & Telemetry Devices: Connects 2.4GHz/5.8GHz Wi-Fi/LoRa antennas to embedded modules in smart sensors and gateways.
UAV & Drone Systems: Enables compact antenna routing from flight controllers to external GPS/RF modules without strain on solder joints.
Test & Measurement Equipment: Used in benchtop RF testers, spectrum analyzers, and signal generators for quick, repeatable connections.
Wireless Access Points: Links internal PCB antennas to external SMA-mounted APs in industrial routers and mesh nodes.
Industrial Automation: Supports wireless HMI, RFID readers, and remote control systems where vibration and space are constraints.
Educational & Prototyping Labs: Ideal for rapid RF circuit development due to its plug-and-play design and low cost.
The 90° elbow design reduces cable stress by 60% compared to straight configurations, extending service life in high-vibration environments.
Precision 50Ω Impedance Match: Eliminates reflections and VSWR spikes — critical for digital modulation schemes like QPSK and OFDM.
Gold-Plated Contacts: Ensures low contact resistance (<3 mΩ) and corrosion resistance in humid or industrial settings.
RG174 Flexibility: 25mm bend radius allows routing around corners in dense PCB layouts — impossible with rigid RG58 or semi-rigid cables.
Snap-Fit SMB Interface: Enables tool-free, rapid mating — ideal for field service and high-volume assembly lines.
No Adapter Required: Direct SMB-to-SMA connection avoids signal degradation from additional connectors.
100% RF Tested: Each unit verified with VNA for S11 and S21 performance before shipping.
Upgrade your RF design with our SMB Male 90° Right Angle to SMA Male Pigtail Cable (RG174, 50Ω) — the trusted choice for IoT, drone telemetry, and test equipment. Featuring gold-plated connectors, ultra-flexible RG174 cable, and 90° right-angle geometry for space-saving installations. Fully RoHS compliant and ready to ship. In stock — order today.
Standard Stock: 15cm length, black jacket, SMB Male (90°) → SMA Male
Custom Options Available:
Cable lengths: 10cm, 20cm, 30cm, 50cm
Jacket colors: Red, Yellow, White (for color-coded wiring)
Connector variants: SMB Female → SMA Male, SMA Female → SMB Male
Bulk packaging: 50 pcs/box, anti-static bags
MOQ: 20 pieces
Lead Time: 1–3 days for standard orders | 5–7 days for custom configurations
Support: Full test reports, RoHS certificates, and application engineering support available upon request.
Compatible with: Ubiquiti, MikroTik, Telit, Quectel, and other IoT/RF modules. Not compatible with N-type, TNC, or MCX interfaces.
