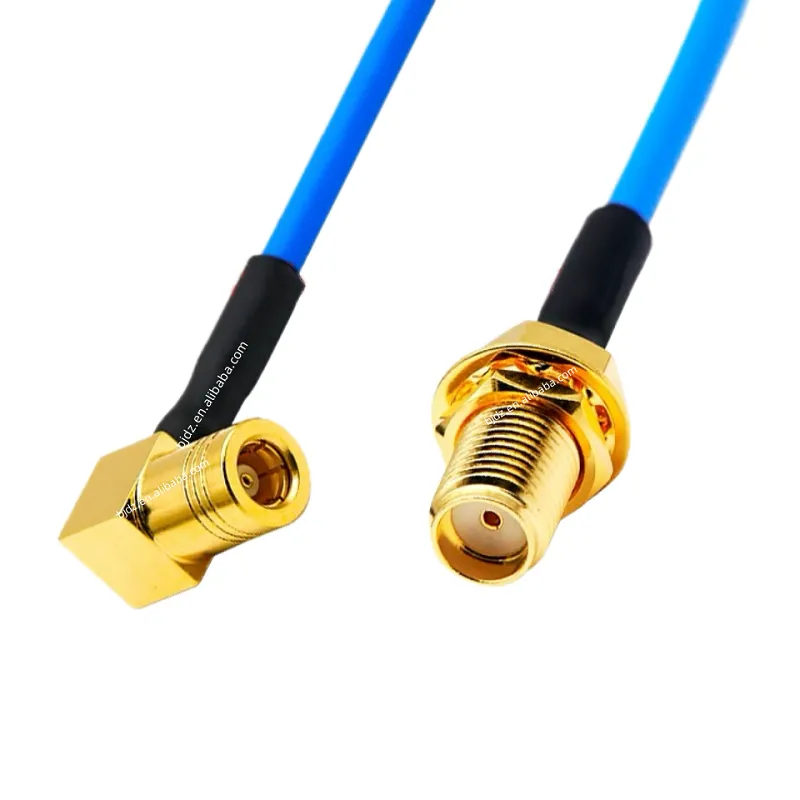

Engineered for high-frequency RF systems demanding ultra-low loss and exceptional signal integrity, this SMB Female 90° Right Angle to SMA Female Bulkhead Cable Assembly with RG405/U coaxial cable delivers unmatched performance in radar, 5G test beds, satellite communications, and precision laboratory environments. Designed for engineers, OEMs, and RF test labs, it bridges critical RF interfaces with military-grade reliability and true 40GHz bandwidth capability.
Key attributes
| Conductor Material | Copper |
| Insulation Material | PTFE |
| Jacket | PVC |
| Number of Conductors | 1 |
| Model Number | SMB Female to SMA female for RG405 Assembly |
| Cable Type | Customized |
| Brand Name | BJDZ |
| Place of Origin | Jiangsu, China |
| Application | RF |
| Plating | Nickel |
| Material | Copper |
| Insulator | PTFE/Plastic |
| Certificate | CE/FCC/ROHS/ISO9001:2015 |
| Frequency Range (MHz) | 6GHz |
| Max Voltage | 335V max |
| Temperature range | -55~+155°C (PE Cable -40~+85°C) |
| Input Impendence (ohm) | 50 |
| V.S.W.R | 1.15+0.02f |
| Vibration | 100m/s2 (10~500Hz) |
| Withstand Voltage | 2500V r.m.s at sea level |
| Working Voltage | 1000Vr.m.s at sea level |
| Insertion Loss | ≤ 0.24dB/6GHz |
| Insulation resistance | ≥5000mΩ |
| Max Input Power (w) | 50 |
| Contact resistance | Center Contact ≤3mΩ |
| Center conductor retention force | 450N |
| Durability | ≥ 500(cycles) |
| Contact resistance | CenterContact ≤1mΩ Outer Contact ≤1mΩ |
| Voltage Standing Wave Ratio | Straight ≤ 1.15/6GHz Right angle ≤ 1.25/6GHz |
Packaging and delivery
| Selling Units | Single item |
| Selling Units | 22X15X3 cm |
| Selling Units | 0.200 kg |
Lead time
| Quantity (pieces) | Lead time (days) |
| 1 - 1000 | 10 |
| 1001 - 5000 | 15 |
| 5001 - 10000 | 25 |
| > 10000 | To be negotiated |
Price
| 5 - 999 pieces | $2.68 |
| 1000 - 4999 pieces | $2.57 |
| 5000 - 99999 pieces | $2.55 |
| >= 100000 pieces | $2.20 |
Parameter | Specification |
Connector A | SMB Female Jack (90° Right Angle) — Gold-plated beryllium copper center pin, nickel-plated brass body, anti-rotation design, rated DC–18 GHz |
Connector B | SMA Female Bulkhead — Thru-hole mount, gold-plated beryllium copper contact, brass body, MIL-STD-348 compliant, rated DC–40 GHz, 500+ mating cycles |
Cable Type | RG405/U — Semi-rigid, 0.086" (2.18mm) OD coaxial cable with silver-plated copper-clad steel inner conductor and solid PTFE dielectric |
Impedance | 50 Ω ±2% |
Velocity of Propagation | 70% |
Capacitance | 95–104 pF/m |
Max Operating Frequency | 40 GHz — Fully validated for mmWave, 5G FR2, and radar bands |
Insertion Loss (Typical) | 0.49 dB/m @ 0.5 GHz |
Shielding Effectiveness | >90 dB (up to 40 GHz) — Copper braid + 100% coverage |
Outer Jacket | Black PTFE — High-temp, chemical-resistant, UV-stable, RoHS & REACH compliant |
Operating Temperature | -65°C to +165°C |
Minimum Bend Radius | 4.5 mm (single bend) / 15 mm (repeated) |
Mating Cycles | ≥500 (SMA), ≥500 (SMB) |
Dielectric Withstanding Voltage | 1600 V RMS |
Certifications | MIL-C-17, IEC 60169-16, RoHS, REACH, UL 94 V-0 |
This pigtail is the preferred solution for mission-critical RF signal routing in demanding environments:
Radar Systems: Enables stable signal transmission between radar modules and test equipment in airborne, maritime, and automotive LIDAR applications — 90° design minimizes strain on sensitive front-end components.
5G Base Stations: Connects mmWave antenna arrays to VNA and signal analyzers during FR2 (24–40 GHz) calibration and field validation.
Satellite Communications: Used in ground station RF front-ends for uplink/downlink testing with low phase noise and high return loss stability.
EMC/RF Test Labs: Ideal for connecting DUTs to spectrum analyzers, signal generators, and power meters without introducing measurement artifacts.
Defense & Aerospace: Complies with MIL-C-17 for avionics, missile guidance, and electronic warfare systems requiring vibration resistance and thermal stability.
Non-Destructive Testing (NDT): Links high-frequency ultrasonic transducers to signal conditioning units in harsh industrial environments.
Compact Wireless Modules: 90° right-angle SMB interface allows routing in confined spaces — perfect for embedded systems, UAV payloads, and IoT sensor nodes.
The 90° SMB interface reduces mechanical stress on the connection by up to 75% compared to straight configurations, while the SMA bulkhead mount ensures secure panel integration — critical for systems requiring zero signal drift under thermal cycling or vibration.
True 40GHz Bandwidth: Unlike “20GHz” cables, this assembly is tested and certified for full 40GHz operation — essential for next-gen radar and 5G FR2.
Military-Grade Construction: Silver-plated copper-clad steel conductor + solid PTFE dielectric delivers superior phase stability and low dispersion.
Bulkhead Mount Design: Threaded SMA female connector locks directly into equipment panels — eliminates strain relief failures common with cable-only assemblies.
>90 dB Shielding: 100% copper braid coverage prevents EMI ingress/egress — critical for sensitive measurement environments.
Gold-Plated Contacts: Ensures<1 mΩ contact resistance and corrosion resistance in salt-laden or high-humidity environments.
PTFE Jacket: Withstands -65°C to +165°C — ideal for engine bays, space-constrained avionics, and outdoor base stations.
100% RF Tested: Each unit undergoes full VNA calibration (S11, S21) with traceable test reports available upon request.
Upgrade your RF test infrastructure with our SMB Female 90° Right Angle to SMA Female Bulkhead Pigtail Cable (RG405, 50Ω, 40GHz) — the industry’s choice for radar validation, 5G mmWave testing, and aerospace RF systems. Featuring MIL-C-17 compliance, >90 dB shielding, and true 40GHz performance. In stock — ship same day.
Standard Stock: 15cm length, black PTFE jacket, SMB Female (90°) → SMA Female Bulkhead
Custom Options Available:
Cable lengths: 10cm, 20cm, 30cm, 50cm, 100cm
Jacket colors: White, Red, Blue (for system identification)

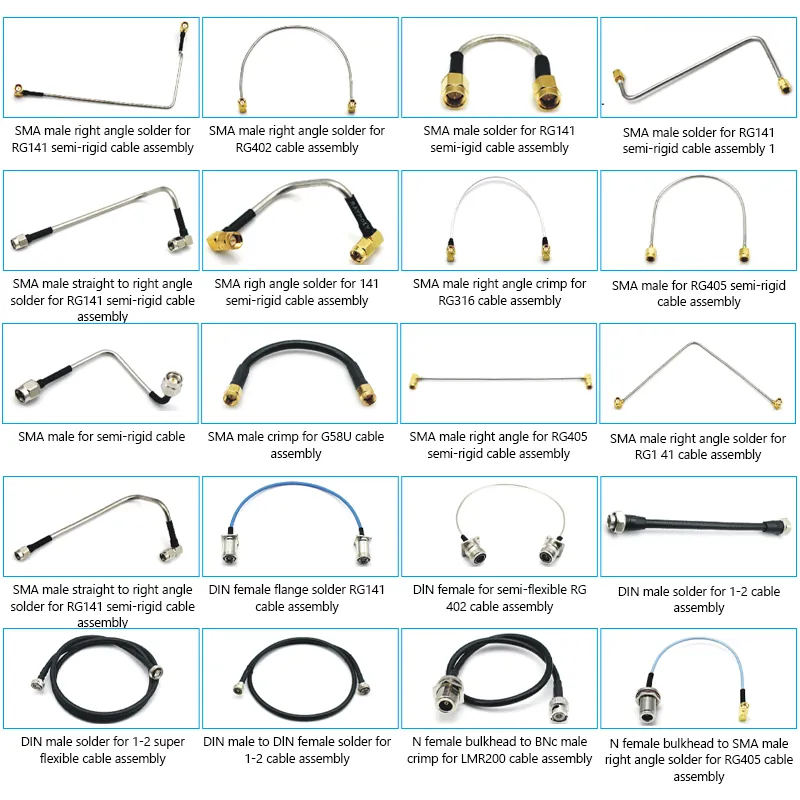

Connector variants: SMB Male → SMA Female Bulkhead, SMA Male → SMB Female 90°
Bulk packaging: 25 pcs/box, anti-static ESD bags with individual barcodes
MOQ: 10 pieces
Lead Time: 1–3 days for standard orders | 5–7 days for custom configurations
Support: Full test reports, MIL-C-17 certification, RoHS/REACH declarations, and application engineering support available upon request.
Compatible with: Keysight, Rohde & Schwarz, Anritsu, National Instruments, and other high-end RF test equipment. Not compatible with N-type, TNC, MCX, or Fakra interfaces.
