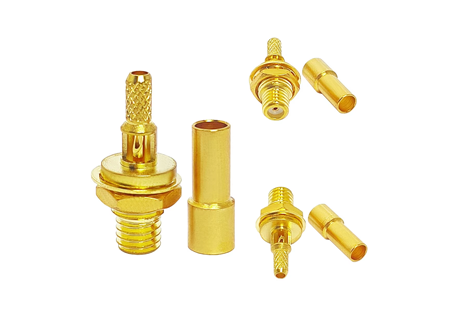

The 10-32microdot (M5) Connector is an RF/microwave coaxial connector based on the UNF thread standard (10-32ONF), mainly used for high-frequency signal transmission and mechanical connection of precision equipment. Its core features include: thread specifications: using American fine thread (10-32ONF), suitable for scenarios with high mechanical stability requirements such as sensors and testing instruments; High frequency compatibility: supports RF signal transmission, with a typical frequency range covering DC to 6GHz, and some models up to 18GHz; Standardized design: Compliant with RoHS regulations, compatible with coaxial cables, PCB boards, and terminal connections.
The 10-32microdot (M5) Connector is an RF/microwave coaxial connector based on the UNF thread standard (10-32ONF), mainly used for high-frequency signal transmission and mechanical connection of precision equipment. Its core features include: thread specifications: using American fine thread (10-32ONF), suitable for scenarios with high mechanical stability requirements such as sensors and testing instruments; High frequency compatibility: supports RF signal transmission, with a typical frequency range covering DC to 6GHz, and some models up to 18GHz; Standardized design: Compliant with RoHS regulations, compatible with coaxial cables, PCB boards, and terminal connections.
| Plating | Nickel/gold |
| Material | Brass |
| Insulator | PTFE/Plastic |
| ROHS | IS09001:2015 |
| Pin contact | Brass |
| Risilent contact | Beryllium copper |
| O-ring seling | 6146 silicon |
| Elastic contact | Tin brass with gold or sliver plated |
| Produce equipment | CNC |
| Connector type | smc male rg316 |
1. 10-32 connector technical performance parameters impedance matching: standard 50 Ω impedance, standing wave ratio (VSWR) ≤ 1.2:1 (within 6GHz);
2. Voltage resistance level: working voltage ≤ 500V, some heavy-duty models can withstand high voltage of 1000V;
3. Insertion and removal lifespan: ≥ 500 times (typical value), with spring locking structure models supporting frequent insertion and removal.
4. The 10-32 connector, with its standardized threaded interface and high-frequency performance, has demonstrated wide applicability in industrial automation, precision testing, and communication fields.
