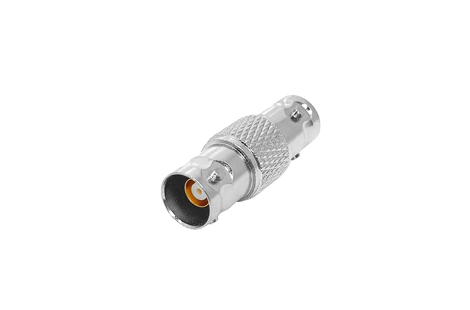

Triaxial connector consists of a central conductor, an inner shielding layer, and an outer shielding layer, with a total of three coaxial structures designed for high shielding performance and complex signal transmission. Its core features include: multi-layer shielding: the inner and outer shielding layers are respectively grounded or protected for signals, and the shielding efficiency is 9 times higher than that of single-layer coaxial cables; Dual signal transmission: supports simultaneous transmission of main signals (such as video signals) and auxiliary signals (such as power or protection signals); High insulation: Polytetrafluoroethylene insulation is used between conductors to ensure signal integrity in high impedance environments.
Triaxial connector consists of a central conductor, an inner shielding layer, and an outer shielding layer, with a total of three coaxial structures designed for high shielding performance and complex signal transmission. Its core features include: multi-layer shielding: the inner and outer shielding layers are respectively grounded or protected for signals, and the shielding efficiency is 9 times higher than that of single-layer coaxial cables; Dual signal transmission: supports simultaneous transmission of main signals (such as video signals) and auxiliary signals (such as power or protection signals); High insulation: Polytetrafluoroethylene insulation is used between conductors to ensure signal integrity in high impedance environments.
| Material | Brass |
| Certificate | CE/FCC/R0HS/IS09001:2000 |
| Temperature Range | -55~+155°C(PE Cable -40~+85°C) |
| Frequency range | DC-4GHz |
| Impedance | 50ohm |
| ODM/DEM | Offered |
| Connector usage | communication |
| Insulator | PTFE |
| O-ring sealing | 6146 silicon |

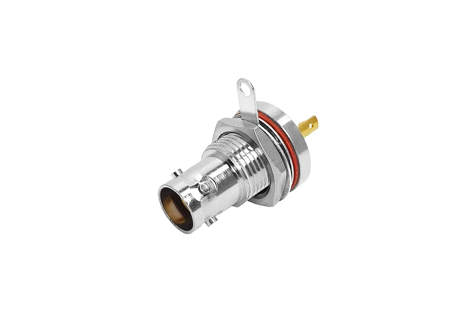

| WEIGHT | BNC Triaxial Female bulkhead solder |
1. Technical parameters and performance electrical characteristics of triaxial connector:
Impedance: 50 Ω or 75 Ω (depending on the model and application scenario);
Shielding performance: 40-50dB higher than ordinary BNC connectors, suitable for sensitive signal transmission;
Voltage resistance level: The outer shielding can carry a protective voltage of over 30V to avoid safety hazards.
2. Mechanical characteristics:
Connection method: bayonet type (such as TRB series) or threaded type (such as TRT series), supporting fast insertion and high vibration environment;
Cable compatibility: compatible with RG58A/U, RG59/U and other three coaxial cables, with low transmission loss and long distance.
