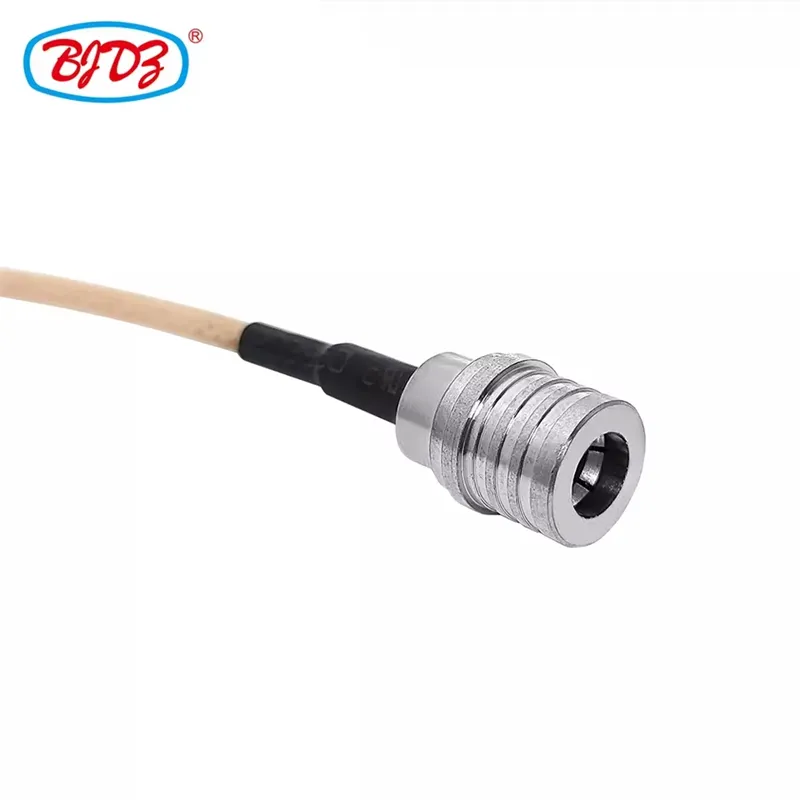

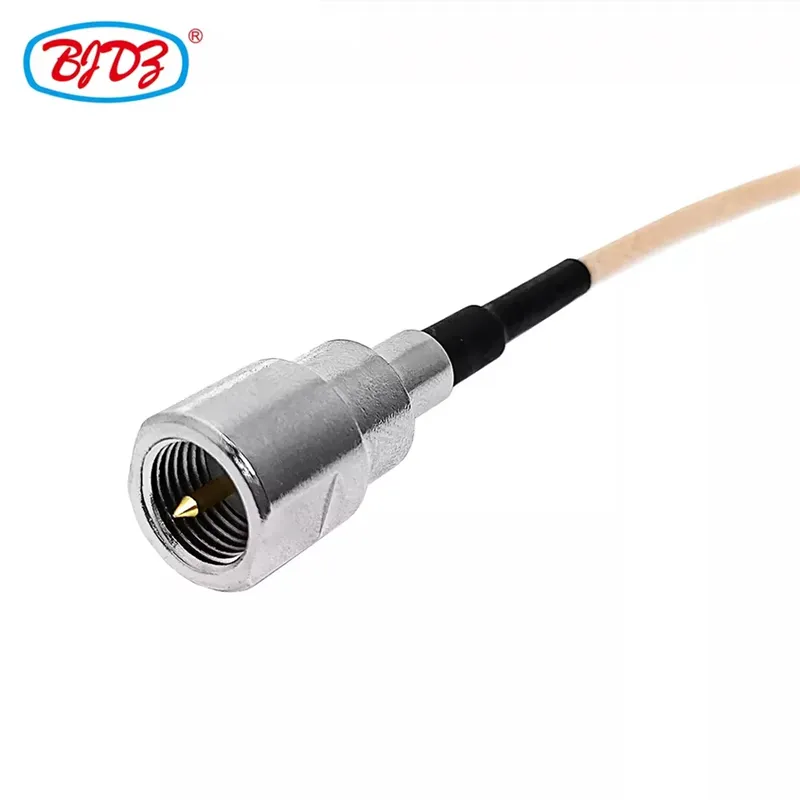

The QMA Male to FME Male RF Pigtail Jumper Assembly from Zhenjiang Binjiang Electronic Co., Ltd. is a specialized, high-flexibility interconnect solution designed to bridge modern quick-lock telecom infrastructure with compact, legacy, or mobile RF equipment.
By combining the high-frequency, push-pull QMA male plug with the ultra-compact, threaded FME male plug, and utilizing the extremely flexible and high-temperature-resistant RG316 coaxial cable, this assembly is purpose-built for tight-space routing, internal cabinet jumpers, vehicular communication systems, and GPS/GNSS timing applications.
As a factory-direct wholesale supplier, we eliminate distributor markups, offering OEMs, system integrators, and telecom contractors premium-quality, 100% VNA-tested cable assemblies with full customization capabilities and aggressive volume pricing.
Parameter | Specification | ||
Interface Standard | IEC 61169-36 | ||
Coupling Mechanism | Quick-lock snap-on (push-pull) | ||
Impedance | 50 Ohm | ||
Frequency Range | DC – 6 GHz (Standard) / DC – 18 GHz (Precision) | ||
VSWR (Straight) | ≤ 1.15:1 (DC – 3 GHz) / ≤ 1.25:1 (3 – 6 GHz) | ||
Insertion Loss | ≤ 0.15 dB @ 3 GHz | ||
Body Material | Brass, Nickel or Tri-metal plated | ||
Center Contact | Gold-plated Beryllium Copper | ||
Dielectric | PTFE | ||
Durability | ≥ 500 mating cycles | ||
Mating/Unmating | Tool-free snap-on / Pull-back sleeve release | ||
Parameter | Specification | ||
Interface Standard | Industry Standard | ||
Coupling Mechanism | Threaded (7/16"-28 UNEF) | ||
Impedance | 50 Ohm | ||
Frequency Range | DC – 3 GHz (Standard) | ||
VSWR (Straight) | ≤ 1.20:1 (DC – 1 GHz) / ≤ 1.30:1 (1 – 3 GHz) | ||
Insertion Loss | ≤ 0.20 dB @ 1 GHz | ||
Body Material | Brass, Nickel or Gold plated | ||
Center Contact | Gold-plated Brass / Beryllium Copper | ||
Dielectric | PTFE / POM | ||
Durability | ≥ 500 mating cycles | ||
Key Feature | Ultra-compact form factor, ideal for mobile/vehicular antennas | ||
Feature | QMA Male End | FME Male End | Combined Advantage |
Form Factor | SMA-footprint, quick-lock | Ultra-compact, threaded | Bridges standard telecom panels to miniature mobile/IoT ports |
Mating Speed | < 2 seconds (snap-on) | Moderate (threaded) | Fast deployment on infrastructure side, secure lock on device side |
Vibration Proof | Excellent (snap-lock detent) | Excellent (threaded lock) | Ideal for vehicular and mobile environments with constant vibration |
Tool Requirement | No tool required | Wrench required (small) | Perfect balance of field-speed and secure termination |
The RG316 cable is the defining feature of this assembly. It is chosen for applications where extreme flexibility, tight bend radius, and high-temperature resistance are non-negotiable.
Parameter | Specification | ||
Impedance | 50 Ohm | ||
Overall Diameter (OD) | 2.49 mm (0.098 inches) — Ultra-thin | ||
Center Conductor | 7×0.17 mm Silver-Plated Copper (SPC) stranded | ||
Dielectric | Solid PTFE (Teflon) — 1.55 mm OD | ||
Shielding | Single Silver-Plated Copper (SPC) Braid, 95% coverage | ||
Jacket Material | FEP (Fluorinated Ethylene Propylene) — Brown or Black | ||
Temperature Range | -55°C to +200°C (Extreme high-temp capable) | ||
Minimum Bend Radius | 15 mm (Single bend) / 25 mm (Repeated bends) | ||
Capacitance | 96 pF/m | ||
Velocity of Propagation | 69.5% | ||
Raw Material Inspection → CNC Connector Machining → Cable Cut-to-Length → Center Pin Soldering → Ferrule Crimping → Heat Shrink Application → Visual Inspection → 100% VNA Sweep Test → Mechanical Pull Test → Labeling → Packaging.
| Step | Inspection Method | Acceptance Criteria |
| Cable Cut Length | Calibrated ruler | Within ±5 mm of specified length |
| Center Pin Solder | 10× Magnification / X-ray | Complete wetting, no cold joints |
| Ferrule Crimp | Go/No-Go gauge | Crimp diameter within ±0.05 mm |
| VNA Sweep Test | Keysight / Anritsu VNA | VSWR ≤ 1.30:1 up to 3 GHz |
| Pull Test | Calibrated force gauge | ≥ 100 N axial pull without failure |
● RoHS & REACH Compliant: All materials are free from hazardous substances.
● ISO 9001:2015 Certified: Full quality management and batch traceability.
● Material Certificates: Available upon request for aerospace and military projects.
Parameter | Available Options | ||
Cable Length | Fully custom from 5 cm to 5 meters (Recommended < 3m for RG316) | ||
QMA Connector | Straight / Right-Angle | ||
FME Connector | Straight / Right-Angle | ||
Plating | Nickel (Standard) / Gold / Tri-metal (CuSnZn) | ||
Heat Shrink Boots | Adhesive-lined (Black / Clear / Red / Blue / Custom) | ||
Cable Jacket Color | Brown (Standard FEP) / Black / Custom Colors | ||
Labeling | Custom part number, barcode, QR code, length marking | ||
Packaging | PE bag / Zip-lock / Blister tray / Bulk carton | ||
Please use the following format when requesting a quote:
[End A] to [End B] / [Cable] / [Length] / [Options]
Example: QMA Male Straight to FME Male Straight / RG316 / 50 cm / Black heat shrink, labeled
| Order Type | Quote Turnaround | Sample Lead Time | Mass Production Lead Time |
| Standard Config | Within 2 hours | 3 – 5 days | 7 – 10 days |
| Custom Config | Within 12 hours | 5 – 7 days | 10 – 15 days |
● Sample Orders: 1 piece
● Wholesale / Bulk Orders: 50 pieces (for best tier pricing)
● Custom Lengths/OEM: 100 pieces
