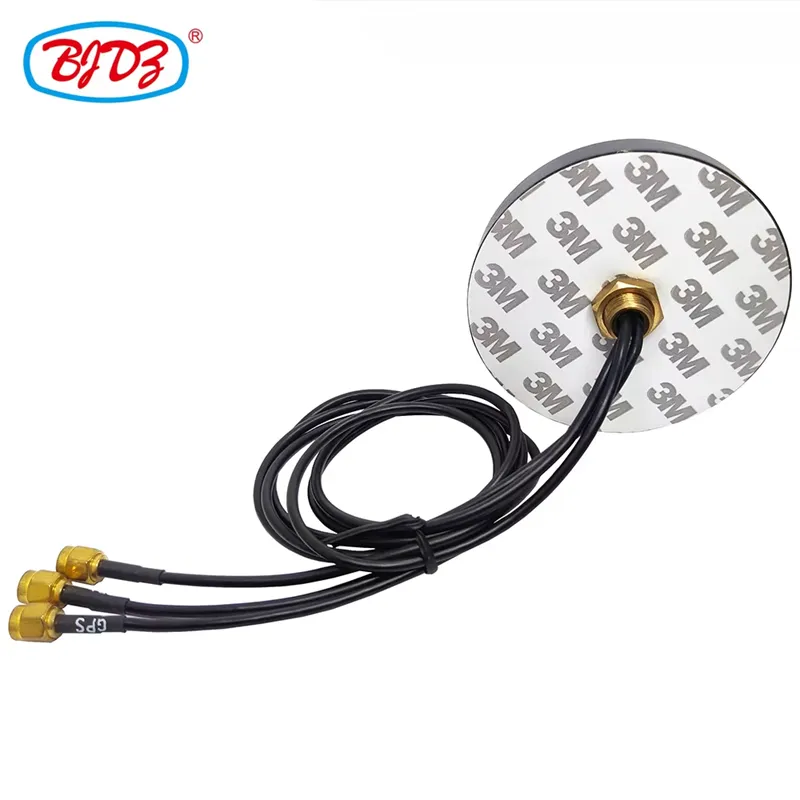

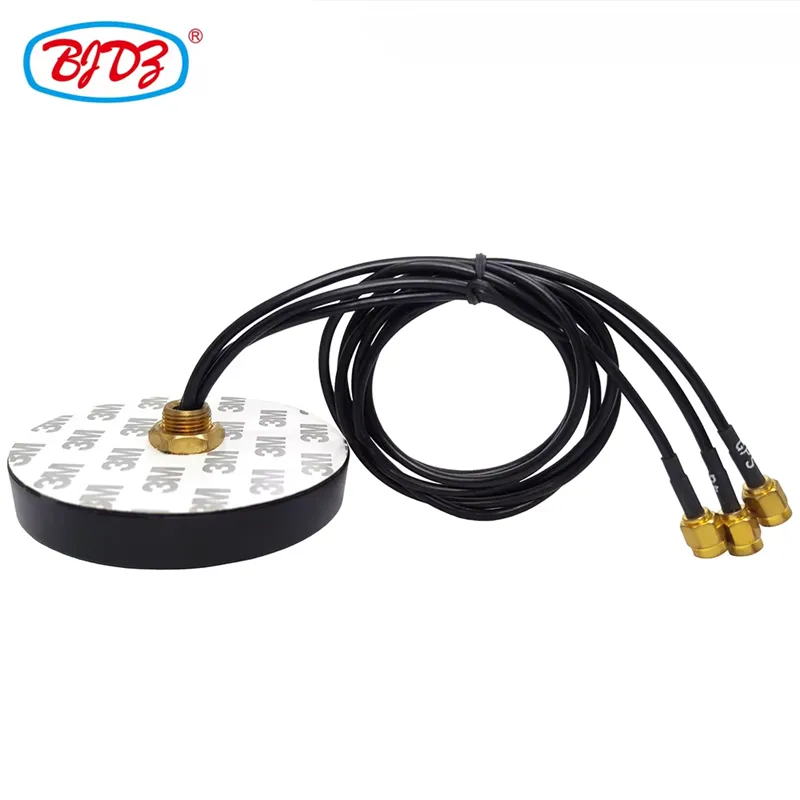

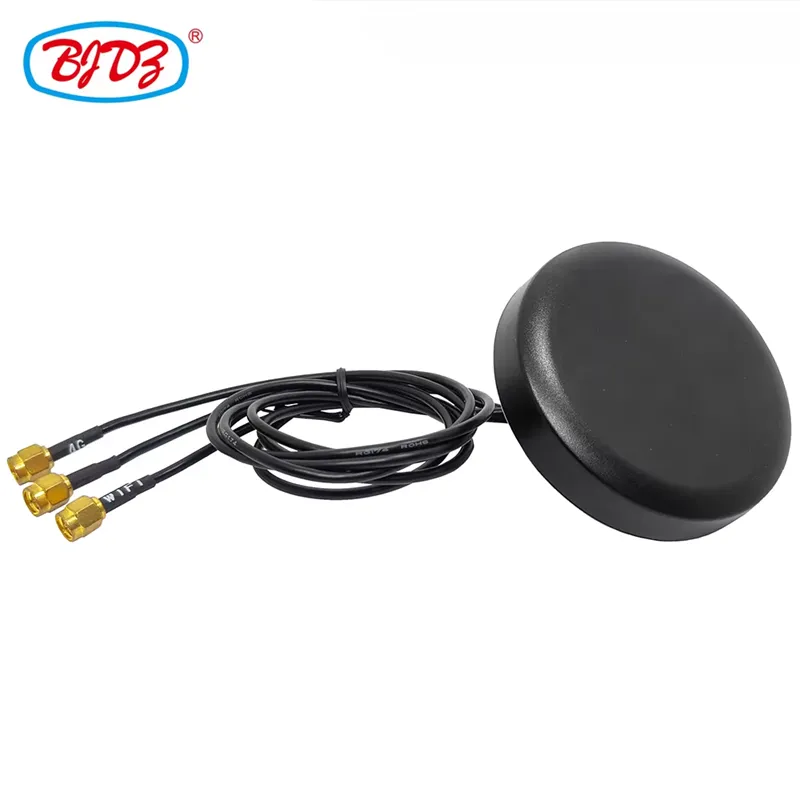

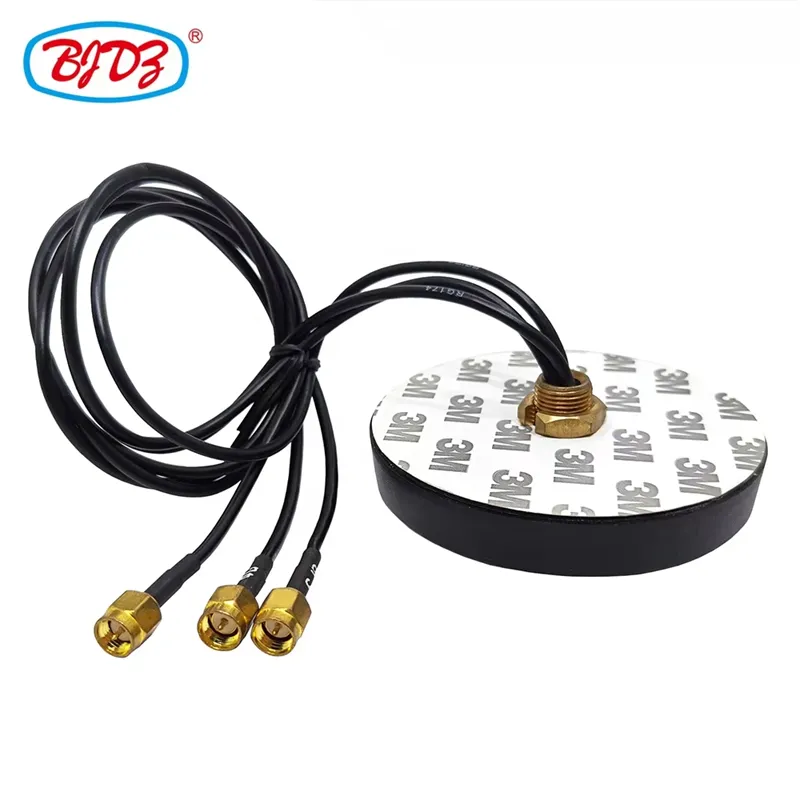

Engineered for industrial IoT, vehicle-mounted routers, and outdoor WiFi deployments, this suction cup antenna integrates three independent SMA male RF pigtails into a single high-gain omnidirectional radiator. The magnetic base provides instant, tool-free mounting on steel enclosures, vehicle roofs, or server racks while maintaining 360° horizontal coverage across 2.4 GHz and 5.8 GHz WiFi bands. Each pigtail is factory-terminated with precision SMA male connectors compatible with Ubiquiti, MikroTik, Teltonika, and Peplink multi-radio platforms, eliminating adapter loss and installation errors. As an ISO-certified manufacturer serving Fortune Global 500 partners in 80+ countries, Zhenjiang Binjiang Electronic delivers OEM-customizable cable lengths, connector types, and gain profiles with functional prototypes in 5–7 business days—backed by individual VSWR validation and IP65 weatherproofing for harsh outdoor environments.
Parameter | Specification | ||
Frequency Range | 2400–2500 MHz / 5725–5875 MHz | ||
Gain (2.4 GHz) | 5 dBi | ||
Gain (5.8 GHz) | 7 dBi | ||
VSWR | ≤ 1.5:1 | ||
Impedance | 50 Ω | ||
Polarization | Vertical | ||
Horizontal Beamwidth | 360° | ||
Max Input Power | 50 W CW | ||
Connectors | 3× SMA Male (customizable) | ||
Cable Type | Low-Loss RG316 / LMR195 (OEM selectable) | ||
Standard Pigtail Len | 30 cm per leg (custom 10–200 cm) | ||
Mounting | Magnetic Suction Cup + Threaded Backup | ||
Waterproof Rating | IP65 | ||
Operating Temp | -40 °C to +70 °C | ||
Dimensions | Ø65 mm × H180 mm (antenna body) | ||
Weight | 220 g (incl. magnet & cables) | ||
Certifications | CE, FCC Part 15B, ROHS, ISO 9001 | ||
● Triple Independent RF Paths: Three isolated SMA male pigtails connect directly to MIMO router radios without splitters or adapters, preserving full spatial multiplexing gain for 3×3 WiFi 6/6E throughput.
● Tool-Free Magnetic Mounting: 45 N pull-force neodymium suction cup secures instantly to ferrous surfaces; integrated M10 threaded backup prevents detachment during vehicle vibration or wind loading >100 km/h.
● Dual-Band High-Gain Performance: 5 dBi @ 2.4 GHz extends legacy device range; 7 dBi @ 5.8 GHz boosts modern AC/AX network capacity—both validated via anechoic chamber radiation pattern testing.

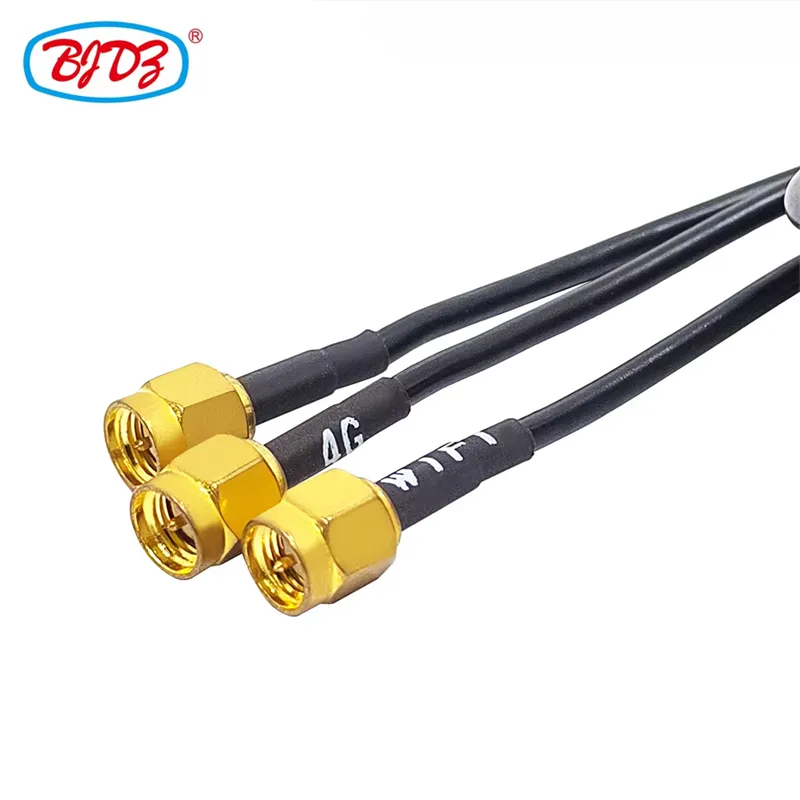

● Factory-Terminated Precision Cables: Each pigtail undergoes individual insertion loss (<0.3 dB @ 5.8 GHz) and torque verification, eliminating field crimp failures common with DIY assemblies.
● Outdoor-Rugged IP65 Sealing: UV-stabilized ABS radome and silicone gasket withstand monsoon rain, desert dust, and coastal salt spray for years of maintenance-free rooftop or vehicular operation.
● OEM Cable & Connector Flexibility: Customize pigtail length (10–200 cm), cable type (RG316/LMR195/Teflon), and connector (SMA/RP-SMA/N/TNC/QMA) to match exact router chassis layout—no minimum order for prototyping.
● No-Tune Wideband Operation: Pre-tuned for global WiFi channels; no field adjustment required across FCC, ETSI, SRRC, and TELEC regulatory domains.
● Vehicle-Mounted 4G/5G Router WiFi Hotspots
● Industrial IoT Gateway External Antennas
● Outdoor Mesh Node Backhaul Links
● Marine Vessel Cabin WiFi Distribution
● Construction Site Temporary Networks
● Agricultural Sensor Hub Connectivity
● Smart City Streetlight Access Points
● Warehouse Inventory Scanner Coverage
● Emergency Response Mobile Command Units
● RV/Camper Off-Grid Internet Systems
As a trusted supplier to Fortune Global 500 enterprises with 99% positive feedback on Alibaba International and deployments in 80+ countries, Zhenjiang Binjiang Electronic combines factory-direct pricing with aerospace-grade RF reliability. Our vertically integrated cable assembly line, anechoic validation chamber, and ISO-certified production ensure your triple-pigtail suction cup antenna meets exacting MIMO performance specs—with zero compromise on quality, compliance, or delivery timeline.
● Pigtail length customization (10–200 cm per leg)
● Cable type selection: RG316 / LMR195 / Teflon / Semi-Rigid
● Connector options: SMA / RP-SMA / N / TNC / QMA / FME
● Color-coded pigtails for radio identification
● Integrated surge protection modules
● Reinforced strain relief boots for high-vibration mounts
● Private labeling and restricted distribution agreements
● Prototype delivery within 5–7 business days
● Small batch MOQ from 50 units; volume scaling to 10K+/month
Why use three separate SMA pigtails instead of one combined cable?
Modern MIMO routers require independent RF paths to each radio chain for spatial multiplexing. Combining signals through a splitter destroys diversity gain and reduces throughput by 50–70%. Our triple-pigtail design preserves full 3×3 MIMO capability while simplifying installation versus three discrete antennas. Each path is individually tested for insertion loss and phase balance to ensure optimal beamforming performance.
Will the magnetic mount stay secure on moving vehicles?
Yes. The 45 N neodymium core resists lateral forces up to 120 km/h highway speeds and 5G vertical shock. For permanent installations or non-ferrous surfaces, the integrated M10×1.5 threaded stud provides mechanical backup using standard nuts/washers. Field tests confirm zero detachment over 10,000 km of mixed urban/highway driving when installed per included torque spec (3 N·m).
Can I customize pigtail lengths for tight router compartments?
Absolutely. Standard 30 cm pigtails suit most external mounts, but we routinely produce 10 cm stubs for embedded gateways or 200 cm extensions for roof-to-cabin runs. Specify exact lengths per leg during quoting—no extra charge for asymmetric configurations. All custom cables receive individual loss testing; LMR195 recommended for runs >1 m to maintain <0.5 dB insertion loss at 5.8 GHz.
Is this antenna compatible with my specific router model?
The triple SMA male interface matches Ubiquiti UniFi AC Mesh, MikroTik wAP ac, Teltonika RUTX12, Peplink MAX BR1, and most enterprise 3×3 APs. For RP-SMA devices (e.g., TP-Link Omada), specify RP-SMA male during ordering—we stock both variants. Electrical compatibility guaranteed across all WiFi 4/5/6/6E protocols when operated within 2.4/5.8 GHz bands. Integration guides available for major platforms upon request.
How does IP65 rating translate to real-world durability?
IP65 certifies complete dust ingress protection and resistance to low-pressure water jets from any direction. This exceeds typical outdoor WiFi antenna requirements, surviving monsoon downpours, pressure washing, and salt fog exposure. Silicone gaskets remain pliable from -40°C to +70°C without cracking. Accelerated aging tests confirm 5+ year service life in tropical/coastal environments. Not submersible (IP67+ available as OEM option).
What testing validates performance before shipment?
Every unit undergoes: (1) Individual VSWR sweep (2.4–2.5 GHz & 5.725–5.875 GHz), (2) Insertion loss test per pigtail (<0.3 dB @ 5.8 GHz), (3) Magnetic pull-force verification (≥45 N), (4) Torque check on all SMA connections. Sample units per batch receive full 3D radiation pattern measurement plus environmental stress screening. Serialized test reports retained 10 years; Certificate of Conformance included. Manufacturing follows ISO 9001 with IPC-A-610 Class 2 workmanship.
Available for OEM/ODM customization. Full technical datasheet, 3D CAD model, and router integration guide provided upon request.
