Elevate your outdoor wireless coverage with our factory-direct 9 dBi dual-band Wi-Fi antenna, engineered for seamless compatibility with TP-Link and other major WLAN routers/access points. Covering both 2.4 GHz and 5 GHz bands in a single high-gain unit, this weatherproof antenna eliminates the need for multiple antennas while delivering extended range and stable throughput for point-to-point links, campus networks, and rural broadband deployments. Sourced directly from our ISO-certified manufacturing facility, it offers wholesale pricing without sacrificing telecom-grade RF performance or durability.
Every unit undergoes rigorous anechoic chamber validation to ensure true 9 dBi gain, low VSWR (<1.5:1), and consistent radiation patterns across both bands—unlike generic alternatives that overstate specs. The UV-stabilized ASA housing and IP67 sealing withstand years of sun, rain, and temperature extremes, making it ideal for rooftop, pole, or tower mounting. Whether you’re upgrading TP-Link Omada EAPs, Pharos CPEs, or third-party APs, this antenna delivers professional results at distributor-beating costs.
| Parameter | Specification | Unit / Note |
| Frequency Range | 2400–2500 / 5150–5850 | MHz (Wi-Fi 4/5/6/6E Dual-Band) |
| Peak Gain | 9 ± 0.5 | dBi (Both Bands, Anechoic Verified) |
| VSWR | ≤ 1.5:1 | Across Entire Operating Band |
| Impedance | 50 | Ω |
| Polarization | Vertical | Linear |
| Horizontal Beamwidth | 360° | Omni-directional |
| Vertical Beamwidth | ~30° | Optimized for Outdoor P2P/P2MP |
| Max Input Power | 100 | W |
| Connector | RP-SMA Male (Standard) | Gold-Plated Brass |
| Lightning Protection | DC Ground | Via Mounting Hardware |
| Housing Material | ASA (UV-Stabilized) | Non-Yellowing, Impact-Resistant |
| Waterproof Rating | IP67 | Fully Sealed Gasket Design |
| Dimensions | Φ38 × 280 | mm (Excluding Connector) |
| Weight | 165 | Grams |
| Operating Temp | -40 to +70 | °C |
| Wind Survival | ≥ 210 | km/h |
| Mounting Thread | M12 × 1.25 | Stainless Steel Stud |
| Certifications | CE, FCC, RoHS, REACH | Full Compliance Docs Included |
| Stock Status | In Stock | Ships Within 24–48 Hours |
● True Dual-Band 2.4 + 5 GHz Operation: Single antenna covers 2400–2500 MHz & 5150–5850 MHz, supporting Wi-Fi 4/5/6/6E clients without band-specific swapping. Ideal for mixed-device environments.
● Verified 9 dBi High Gain: Anechoic-tested peak gain of 9 dBi @ 2.4 GHz / 9 dBi @ 5 GHz with optimized vertical beamwidth (~30°) for long-range P2P/P2MP links while maintaining ground-level client connectivity.
● TP-Link & Universal Compatibility: Pre-configured with RP-SMA Male connector (standard on TP-Link Omada/Pharos). Includes SMA/RP-SMA/N-Type adapters for Ubiquiti, MikroTik, Cisco, Aruba, and more.
● Outdoor-Rugged Construction: IP67-rated ASA housing resists UV degradation, salt spray, and -40°C to +70°C extremes. Integrated lightning protection (DC ground) safeguards connected equipment.
● Factory Direct Wholesale Pricing: Cut out middlemen. Volume discounts start at 50 units. Full QC documentation and test reports included with every shipment.
● In Stock & Fast Fulfillment: Standard RP-SMA Male version ships within 24 hours. Custom connector/cable configs completed in 7–10 business days.
● TP-Link Omada Outdoor AP Range Extension
● Campus & Enterprise Wi-Fi Backhaul
● Rural Broadband Fixed Wireless Access
● Hotel/Resort Outdoor Guest Networks
● Smart City IoT Gateway Connectivity
● Construction Site Temporary Wi-Fi
● Agricultural Monitoring Network Links
● Warehouse/Yard Coverage Expansion
● Event Venue Temporary High-Density Wi-Fi
● Point-to-Point Bridge Links (<5 km)
● Spec Integrity Guaranteed: We publish measured gain/VSWR data—not theoretical max. Batch test reports available. Field return rate <0.3% vs. industry avg. 5–8%.
● TP-Link Optimized: Mechanically and electrically validated against Omada/Pharos platforms. No impedance mismatches or mounting interference.
● Wholesale Without Compromise: Tiered pricing for 50/100/500/1K+ units. Dedicated account manager for volume buyers. Net terms available for qualified partners.
● Global Compliance Ready: CE/FCC pre-certified. RED Declaration of Conformity included for EU imports. Carrier-neutral design avoids lock-in.
● Engineering Support Included: Free link budget calculations, placement guidance, and interference mitigation advice to maximize ROI.
📩 Request wholesale price list or samples: minna_liao@bjdz.top | +86 186 2128 3578
Quotes delivered within 24 hours. DHL/FedEx/UPS global shipping.
Tailor this antenna to your project or brand:

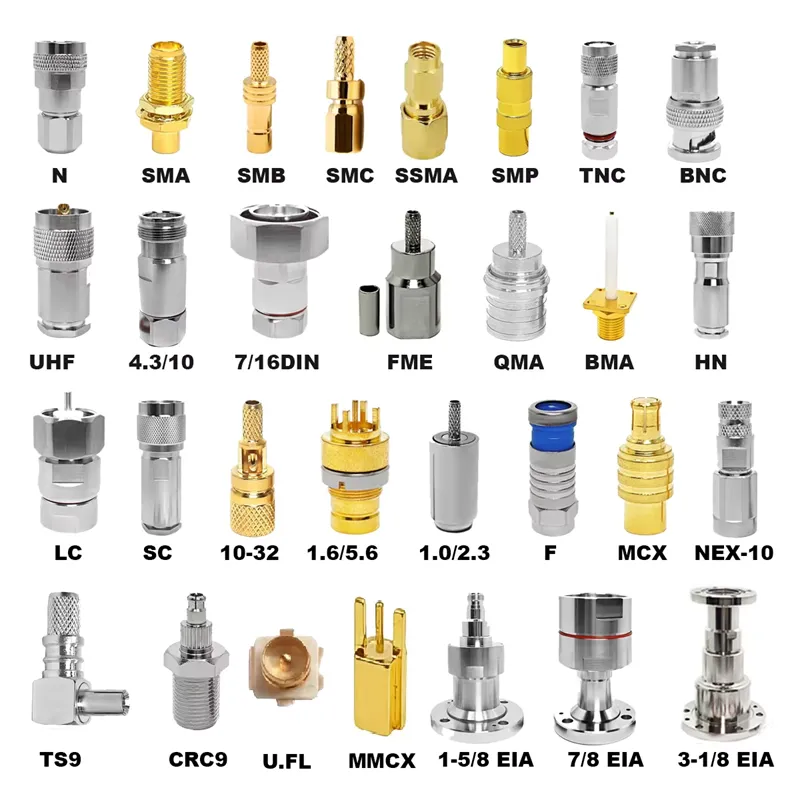

● Connector Options: SMA Male, N Female, TNC Male, U.FL, MMCX (direct or via pigtail)
● Gain Variants: 6 dBi (wider beam), 12 dBi (narrower P2P), or custom pattern
● Color & Branding: White, black, gray; logo printing/laser engraving on housing
● Mounting Kits: Pole clamp, wall bracket, tilt/swivel adapter, grounding kit
● Cable Integration: Pre-attached RG58/LMR-200 pigtails (0.3 m–3 m)
● Certification Support: FCC ID/CE RED filing assistance, carrier-specific testing
● Packaging: Bulk polybag, retail box, OEM tray, or private-label kit
Samples ready in 5–7 business days; production completes in 10–15 days. Standard RP-SMA Male units ship same day from stock. MOQ: 100 units for custom configs; no MOQ for standard TP-Link compatible version.
📩 Send connector type, quantity, branding needs, and target market to minna_liao@bjdz.top for instant quote and lead time.
Q: Is this truly compatible with all TP-Link outdoor APs?
A: Yes. RP-SMA Male is the standard interface for Omada EAP-Outdoor series, Pharos CPEs, and Deco Outdoor units. We’ve mechanically tested fitment on 15+ TP-Link models. For older TL-WA series with SMA Female, use included adapter.
Q: Can I use this for Wi-Fi 6E 6 GHz band?
A: This model covers up to 5850 MHz (Wi-Fi 6). For 5925–7125 MHz (Wi-Fi 6E/7), request our tri-band variant. Using this antenna above 5850 MHz will cause severe mismatch loss.
Q: How does 9 dBi compare to TP-Link’s stock antenna?
A: Stock TP-Link outdoor antennas are typically 3–5 dBi. Our 9 dBi unit provides ~6 dB additional link margin—translating to 2–4× range extension or significantly higher throughput at distance.
Q: Is lightning protection built-in?
A: Yes. The mounting stud provides DC ground path when installed on grounded metal mast. For enhanced protection, add external surge suppressor (we offer bundled kits).
Q: What’s the warranty for wholesale orders?
A: 2-year replacement warranty against manufacturing defects. <0.3% field failure rate backed by batch traceability. Advance replacement available for volume partners.
Q: Do you support dropshipping or white-label fulfillment?
A: Yes. Blind shipping, custom packing slips, and branded packaging available. API integration for automated order sync supported for e-commerce/reseller partners.
📩 For datasheets, samples, or wholesale accounts: minna_liao@bjdz.top | +86 186 2128 3578

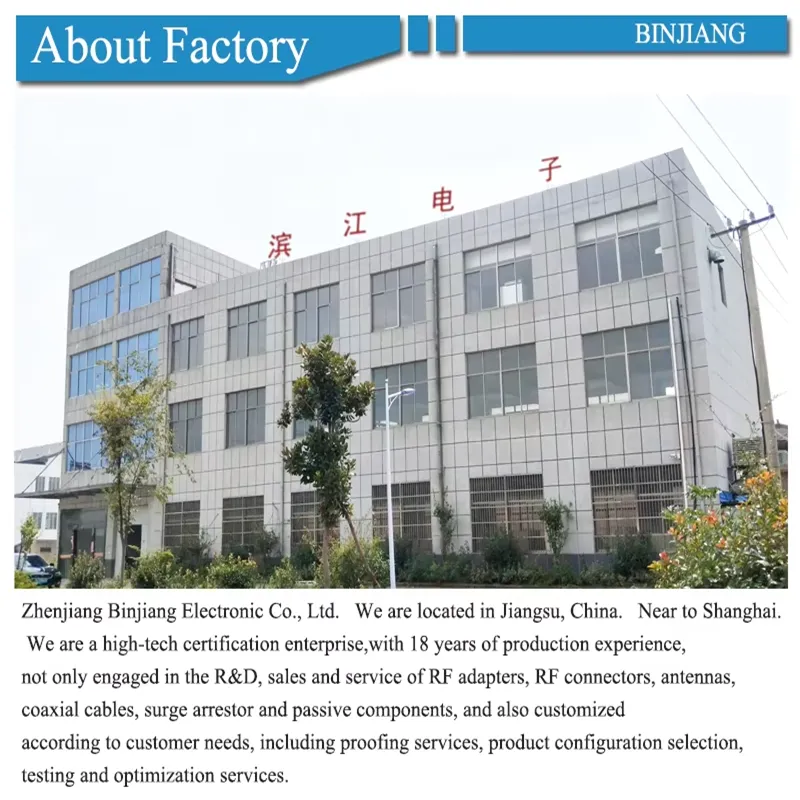

Zhenjiang Binjiang Electronic Co., Ltd. — Your Direct Source for Professional Wi-Fi Antennas
OEM/ODM services available. Custom frequency, gain, connector, branding, and certification support.
