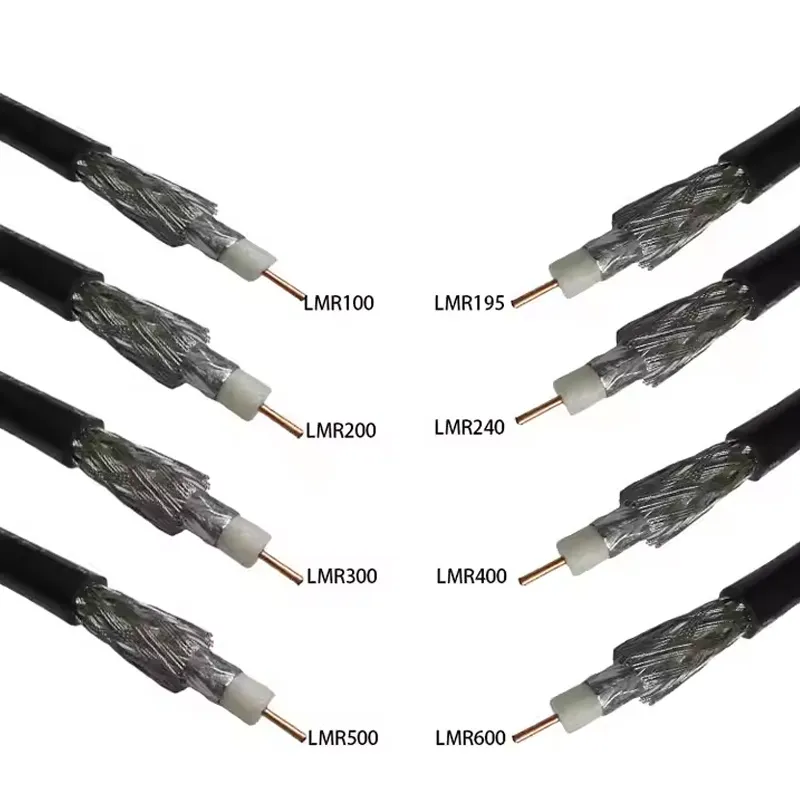

LMR200 coaxial cable is a flexible, low-loss communication cable with a 50 ohm impedance. It features metal braided shielding and foamed PE insulation, with an outer diameter of approximately 4.95-7.0mm. Its transmission frequency covers DC-3GHz to 6GHz, making it suitable for short-distance antenna feed lines, wireless communication, and other scenarios. Its core advantages include: low loss: high-frequency signal transmission efficiency superior to traditional RG series cables; high flexibility: minimum bending radius of 24.8mm, suitable for complex wiring environments; strong shielding: dual shielding layer design (aluminum foil + tinned copper wire) provides >90dB anti-interference capability
| Structure parameters | ||
| Item | Material | Diamenter (mm) |
| Inner Conductor | Bare copper wire | 1.12 |
| Dielectric | EPE | 2.95 |
| Outer Conductor | Tin plated copper wire weaving | 3.66 |
| Sheath | PE | 4.95 |
| Performance parameters | ||
| Capacitor | 80.4pF/m | |
| Impedance | 50ohm | |
| Transmission rate | 83% | |
| Internal conductor DC resistance | 18.38 ohm/m | |
| Outer conductor DC resistance | 16.88 OHM/m | |
| Maximum operating voltage | 3000Vrms | |
| Maximum operating frequency | 25000MHz | |
| Working temperature range | -40～+80℃ | |
| Bending radius | 25mm | |
| ROHS/CE/FCC | YES | |
| Frequency | 30MHz | 5.8dB/m |
| 50MHz | 7.5dB/m | |
| 150MHz | 13.1dB/m | |
Application areas, communication infrastructure: cellular base station antenna jumper, roof feeder, optimizing 5G/6G network signal coverage.
Industry and military: oil monitoring, airborne communication, radar system, adapting to complex electromagnetic environment.
Internet of Things and broadcasting and television: WisGate gateway, radio and television transmission, enhancing signal stability. The company's products have passed CE, FCC, ROHS, UL testing and other tests
