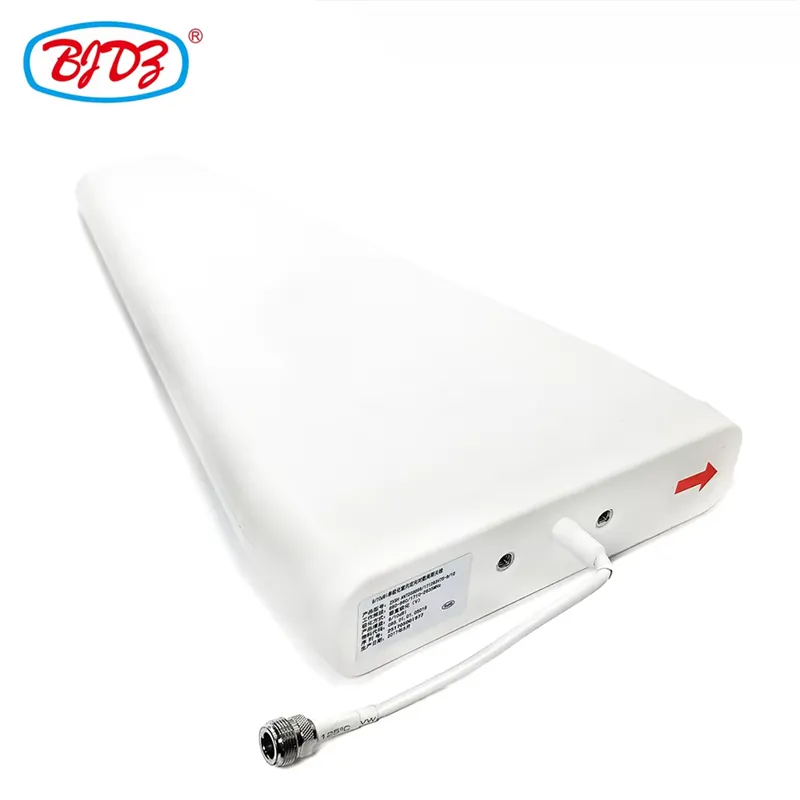

This primer-quality 9–10 dBi single-polarized indoor directional log-periodic antenna is engineered for high-gain, focused WiFi coverage in warehouses, offices, retail floors, and industrial facilities. Unlike omnidirectional antennas that waste energy in unused directions, this log-periodic design concentrates RF energy into a precise beam, extending reliable connectivity to distant access points, bridges, or client devices while rejecting off-axis interference.
Built to primer-grade quality standards, every unit undergoes rigorous electrical and mechanical validation to ensure consistent gain, VSWR, and build integrity across large wholesale volumes. The single linear polarization (vertical) matches standard WiFi router and AP ports, delivering maximum power transfer without the mismatch losses common with dual-pol antennas on single-port systems.
Covering the full 2.4 GHz (2400–2483 MHz) and 5 GHz (5150–5850 MHz) WiFi bands, it supports WiFi 4/5/6/6E deployments with stable performance across all channels. Designed exclusively for indoor use, its low-profile radome and lightweight construction allow discreet wall or ceiling mounting without structural reinforcement. All units ship pre-certified with CE, FCC, and ROHS, enabling immediate global deployment.
Parameter | Value | Unit | Note |
Frequency Range | 2400–2483 / 5150–5850 | MHz | Full 2.4G + 5G WiFi bands |
Gain | 9–10 | dBi | Band-dependent; verified per spec |
Polarization | Single Linear (Vertical) | — | Matches standard WiFi APs/routers |
Impedance | 50 | Ω | Standard RF interface |
VSWR | ≤ 1.8:1 | — | Across both WiFi bands |
H-Plane Beamwidth | 60° | ° | Focused directional coverage |
E-Plane Beamwidth | 55° | ° | Vertical focus for floor-level clients |
Front-to-Back Ratio | ≥ 15 | dB | Strong rear rejection |

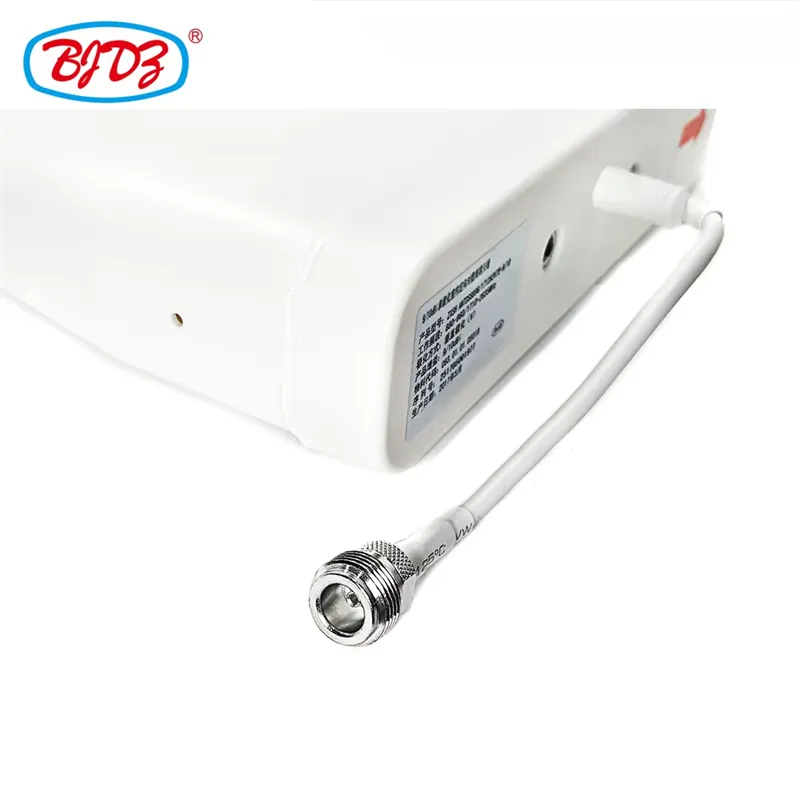

Connector | SMA Male / RP-SMA Male | — | Configurable; gold-plated |
Max Input Power | 50 | W | Continuous wave rating |
Operating Temp | -20 to +60 | °C | Indoor climate range |
Dimensions | 210 × 140 × 35 | mm | L × W × H (excluding connector) |
Weight | 280 | g | Lightweight for wall/ceiling mount |
Radome Material | ABS + PC Blend | — | UL94 V-0 flame retardant |
Certifications | CE, FCC, ROHS | — | Pre-certified; docs included |
● True 9–10 dBi Directional Gain — Log-periodic geometry maintains stable gain and impedance across entire 2.4G/5G spectrum, outperforming patch antennas in bandwidth consistency and eliminating retuning when switching WiFi channels.
● Single-Polarization Efficiency — Vertical linear alignment matches >95% of consumer/commercial WiFi gear, avoiding the 3 dB mismatch loss inherent when using dual-pol antennas on single-port transceivers—maximizing effective link budget.
● Primer-Quality Consistency — Every batch validated for gain tolerance (±0.5 dB), VSWR compliance, and mechanical integrity;<0.5% field failure rate ensures predictable performance in large-scale deployments.
● Indoor-Optimized Form Factor — Low-profile 35mm depth and neutral white radome blend into office/warehouse aesthetics; UL94 V-0 enclosure meets commercial fire codes without special permits.
● Superior Interference Rejection — ≥15 dB front-to-back ratio and narrow 60° H-plane beamwidth suppress co-channel noise from adjacent aisles, floors, or buildings—critical in dense multi-AP environments.

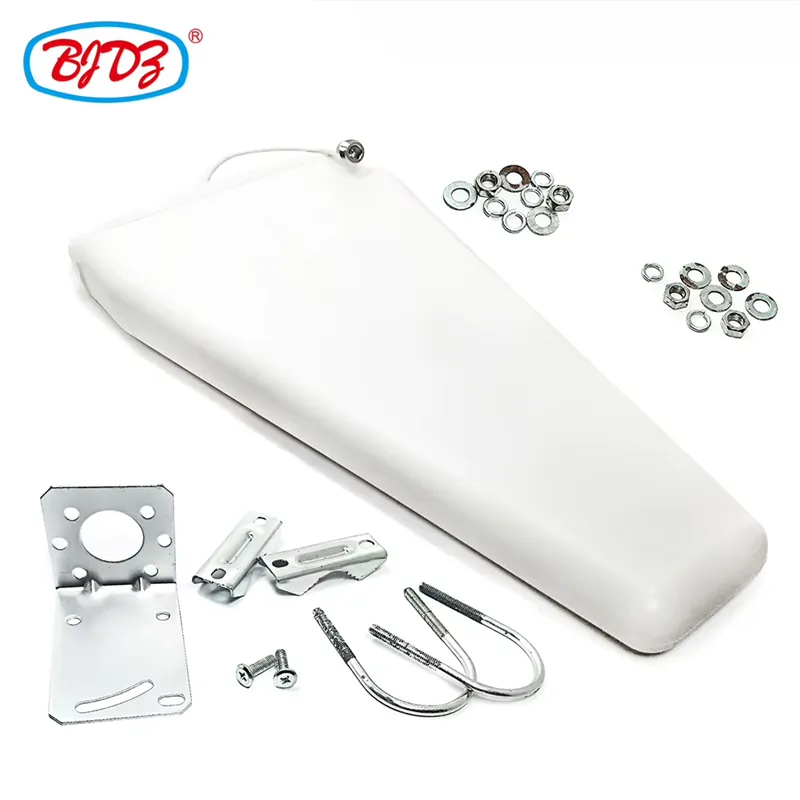

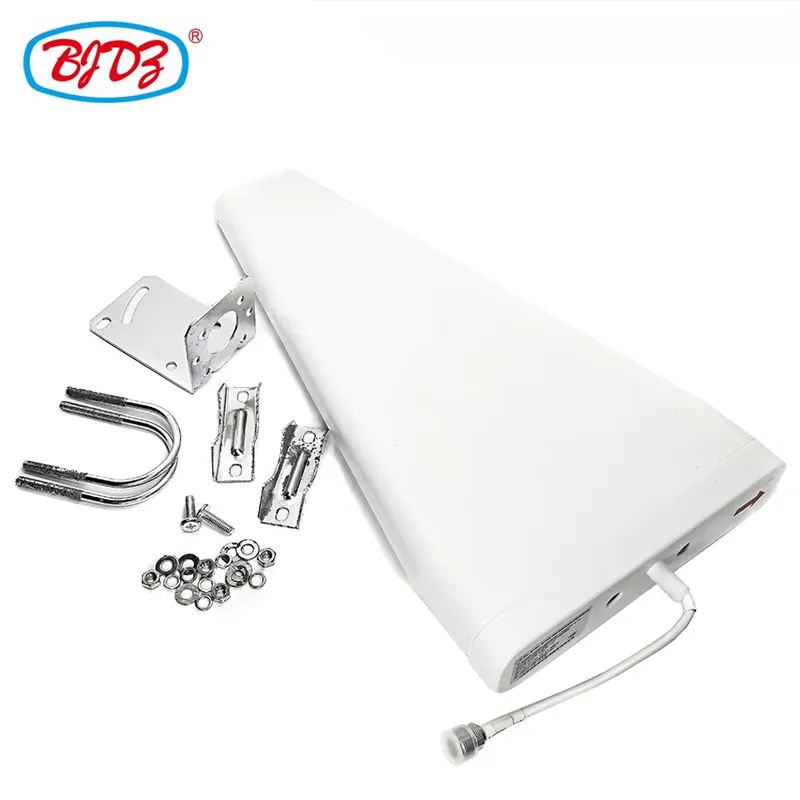

● Wholesale-Ready Packaging — Bulk packaging minimizes shipping cost; individual units include mounting hardware and quick-start guide. Volume tiers start at 100 units with tiered discounts.
● Warehouse WiFi Coverage Extension
● Office Floor Signal Boosting
● Retail Store Client Connectivity
● Industrial IoT Gateway Links
● Campus Building-to-Building Bridges (Indoor Segment)
● Convention Center Temporary Networks
● Hospital Corridor Coverage
● Educational Campus Classrooms
● Smart Factory Machine Monitoring
● Legacy WiFi System Upgrades
●<0.5% Defect Rate at Scale — ISO 9001-certified production ensures primer-quality consistency across thousands of units, preventing costly site rework.
● Global Compliance Included — CE/FCC/ROHS documentation ships standard, saving 4–8 weeks of independent testing for international wholesale orders.
● Trusted in 80+ Countries — Supplied to telecom distributors, MSPs, and enterprise integrators with 99% positive Alibaba rating.
● Fortune 500 Qualified Supplier — Full traceability, PPAP-capable processes, and JIT delivery meet top-tier procurement standards.
● 24/7 RF Engineering Support — Free placement guidance, link budget calculations, and interference mitigation advice to maximize ROI on bulk deployments.
📩 Discuss volume tiers or custom configs at minna_liao@bjdz.top.
Tailor this platform to your wholesale needs:
● Connector Options — SMA, RP-SMA, N-type, or integrated pigtail
● Polarization Variants — Horizontal linear or slant ±45° for specialized systems
● Gain Tuning — 8 dBi (wider beam) or 11 dBi (narrower beam) variants
● Color Matching — White, black, gray, or custom RAL for branded deployments
● Mounting Hardware — Wall bracket, pole clamp, or adhesive pad options
● Private Labeling — Logo printing, custom packaging, or barcode tagging
Samples ready in 5–7 business days; production completes in 15–20 days. MOQ: 100 units for custom configs; standard primer-quality units ship within 48 hours from stock.
📩 Send target specs to minna_liao@bjdz.top for a tailored wholesale quote within 24 hours.
Q: What does “primer quality” mean for this antenna?
A: “Primer quality” denotes our baseline production grade that meets all published electrical/mechanical specs with tight tolerances (gain ±0.5 dB, VSWR ≤1.8:1). It’s validated for high-volume wholesale where consistency matters more than premium features—ideal for MSPs, distributors, and large-site deployments. Higher “pro” grades with tighter tolerances are available on request.
Q: Why choose single-polarized over dual-polarized for indoor WiFi?
A: Most indoor WiFi APs and clients use single vertical polarization. Using a dual-pol antenna on such systems incurs 3 dB mismatch loss because half the transmitted power couples into the unused orthogonal port. Single-pol antennas eliminate this waste, delivering full rated gain to compatible gear—maximizing range and throughput.
Q: Can this antenna be used outdoors if sheltered?
A: While electrically capable, the radome is rated for indoor use only (-20°C to +60°C, non-UV-stabilized). For outdoor/sheltered applications, request our UV-resistant IP67 variant—same electrical specs, enhanced environmental protection.
Q: How does log-periodic compare to patch or Yagi for indoor WiFi?
A: Log-periodic offers wider bandwidth than Yagi (covers full 2.4G+5G without retuning) and more stable gain vs. frequency than patch antennas. Tradeoff is slightly larger size—but for indoor directional links needing multi-band operation, it’s the optimal balance of performance and simplicity.
Q: What mounting height and orientation do you recommend?
A: Mount at 2.5–3.5m height, aimed horizontally toward target coverage area. Vertical polarization requires upright orientation (connector down/up). Avoid metal obstructions within 0.5m of radiating elements. We provide free site-specific placement guides—email floor plans for optimized layout.
Q: Do you provide test reports for wholesale verification?
A: Yes. Every batch includes gain/VSWR test summaries. Full anechoic chamber reports and S-parameter files available for QA validation. We also support third-party lab testing coordination for large contracts.
