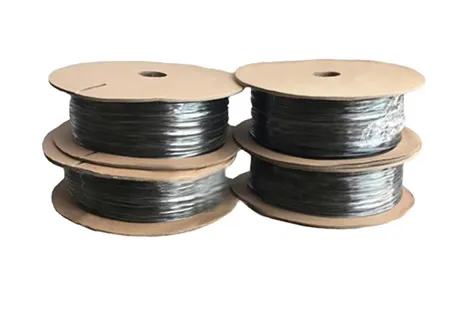

Micro coaxial cables, as an important signal transmission medium, play a crucial role in various fields such as communication, monitoring, broadcasting, and data centers. Its excellent electrical performance and flexible application characteristics make it an indispensable component of modern technology.

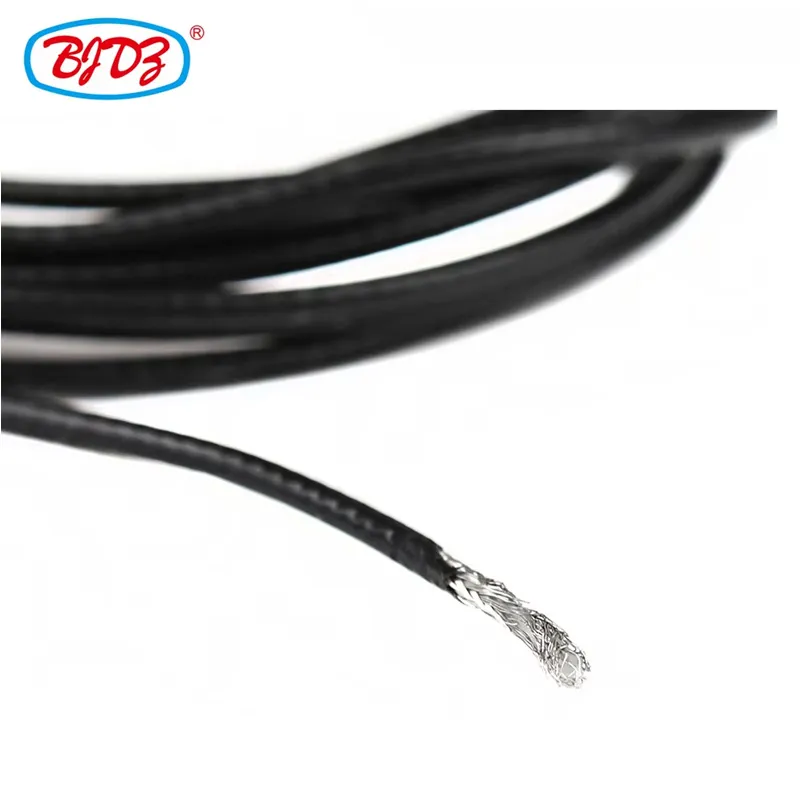

| Structure parameters | ||
| Item | Material | Diamenter (mm) |
| Inner Conductor | Bare copper wire | 0.08 |
| Dielectric | EPE | 0.68 |
| Outer Conductor | Tin plated copper wire weaving | 0.88 |
| Sheath | PE | 1.13 |
| Performance parameters | ||
| Capacitor | 95.6pF/m | |
| Impedance | 50ohm | |
| Transmission rate | 70% | |
| Operating Frequency | 6Ghz | |
| Maximum working voltage | 1000Vrms | |
| Working temperature range | -55～+200℃ | |
| Bending radius | 4mm | |
| ROHS/CE/FCC | YES | |
| Decay | 1GHz | 2.3dB/m |
| 2GHz | 3.1dB/m | |
| 3GHz | 3.9dB/m | |
Team R&D Strength: The company integrates independent product technology development and application, attaches importance to independent intellectual property rights, always adheres to independent R&D and continuous innovation, continuously strengthens its own technology investment, and provides professional and reliable products and supporting services for the RF communication industry.
Our company has a group of high-precision and advanced professional RF technology developers, and a deep understanding of RF technology theory and application is the core part of current technology.
