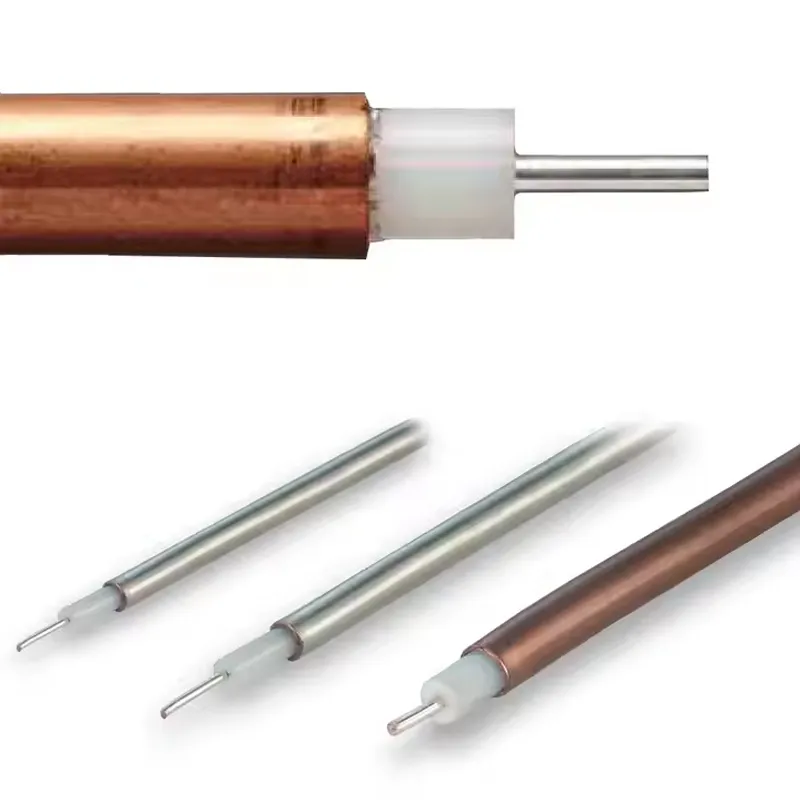

This is a 047 Semi-rigid coax cable that is formable,50 Ohm and has a PTFE dielectric.has a shield count of 1 and the maximum frequency for this cable is 20 GHz,attenuation at 1 GHz of 36 dB and a maximum power of 32 watts at 1 GHz.047 Semi-rigid coax cables are part of over 40,000 RF, microwave and millimeter wave components.
| Structure parameters | ||
| Item | Material | Diamenter (mm) |
| Inner Conductor | Silvered Copper | 1.78 |
| Dielectric | PTFE | 5.33 |
| Outer Conductor | Ternary Alloy Plated Seamless Annealed Bare Copper Tube | 6.35 |
| Performance parameters | ||
| Cable Impedance | 50Ω | |
| Velocity | 76% | |
| Shielding Effectiveness | >165 dB | |
| Voltage Withstanding | 2200V/DC | |
| Operating Frequency | DC-18GHz | |
| Working temperature range | -55～+250℃ | |
| Bending radius | 10mm | |
| ROHS/CE/FCC | YES | |
| Attenuation | 300MHz | 0.1dB/100m |
| 1000MHz | 0.18dB/100m | |
| 3000MHz | 0.32dB/100m | |
