We have strict requirements for product materials, performance, and design. We use advanced computer simulation algorithms and structural optimization to improve RF solutions, and have accumulated years of structural solutions and unique manufacturing processes to further optimize RF indicators. We often conduct pre design manufacturing and cost analysis, and customize corresponding products according to different customer needs, demanding the strictest standards for our own product quality.

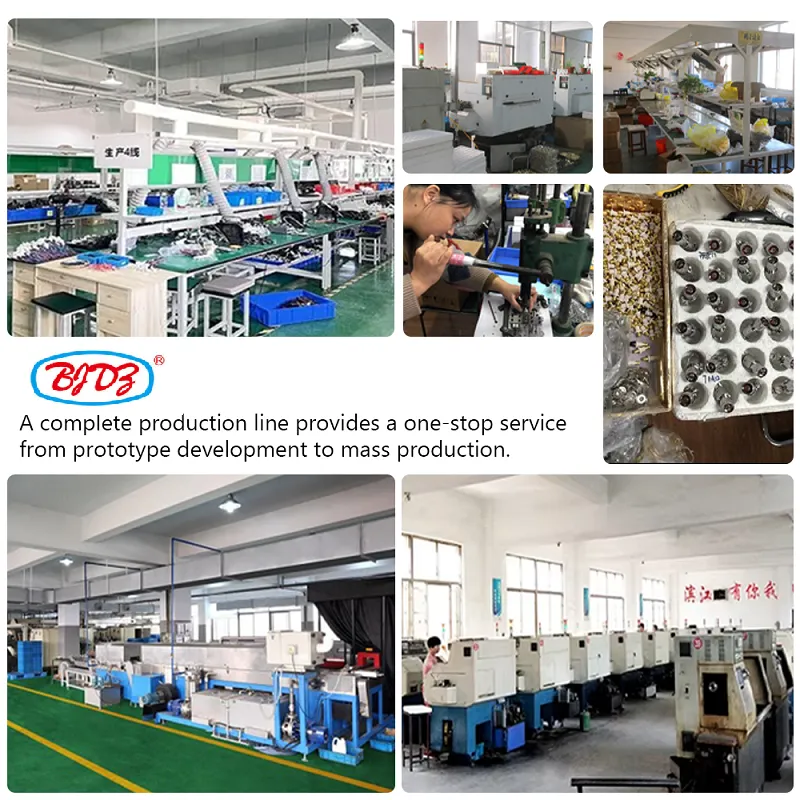

Assembly line: We have a professional assembly OEM production base that can provide you with high-quality RF and microwave component processing services.
Key attributes
| Conductor Material | Copper |
| Insulation Material | PTFE |
| Jacket | PVC |
| Number of Conductors | 1 |

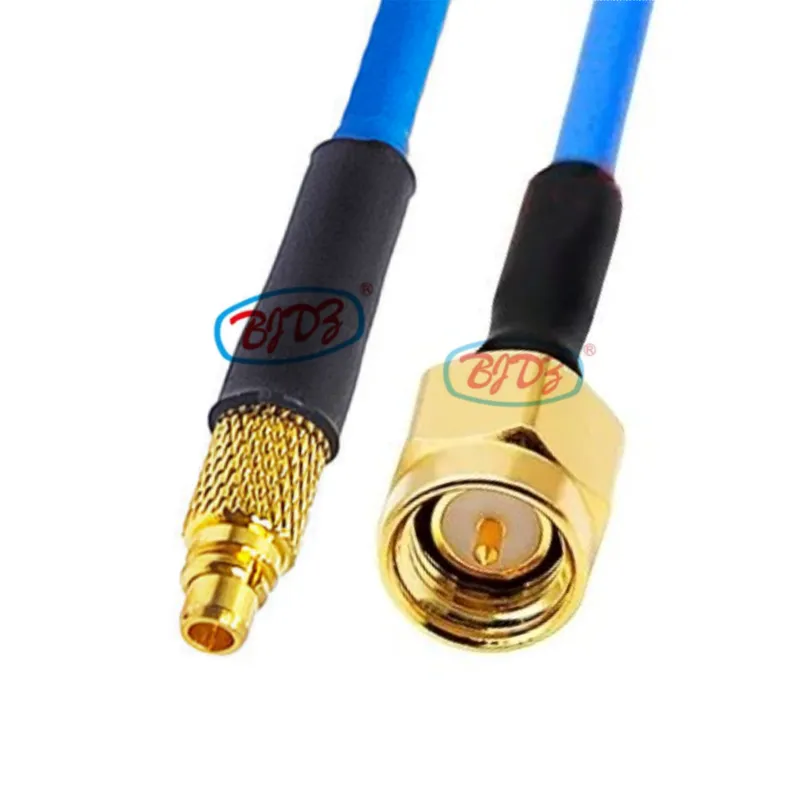

| Model Number | MMCX Male to SMA Male for SS405 Cable Assembly |
| Cable Type | Customized |
| Brand Name | BJDZ |
| Place of Origin | Jiangsu, China |
| Application | RF |
| Plating | Nickel |
| Material | Copper |
| Length | 7cm |
| Insulator | PTFE/Plastic |
| Certificate | CE/FCC/ROHS/ISO9001:2015 |
| Frequency Range (MHz) | 12.5GHz |
| Max Voltage | 335V max |
| Temperature range | -55~+155°C (PE Cable -40~+85°C) |
| Input Impendence (ohm) | 50 |
| V.S.W.R | 1.15+0.02f |
| Vibration | 100m/s2 (10~500Hz) |
| Withstand Voltage | 2500V r.m.s at sea level |
| Working Voltage | 1000Vr.m.s at sea level |
| Insertion Loss | ≤ 0.24dB/6GHz |
| Insulation resistance | ≥5000mΩ |
| Max Input Power (w) | 50 |
| Contact resistance | Center Contact ≤3mΩ |
| Center conductor retention force | 450N |
| Durability | ≥ 500(cycles) |
| Contact resistance | CenterContact ≤1mΩ Outer Contact ≤1mΩ |
| Voltage Standing Wave Ratio | Straight ≤ 1.15/6GHz Right angle ≤ 1.25/6GHz |
Packaging and delivery
| Selling Units | Single item |
| Selling Units | 3X3X3 cm |
| Selling Units | 0.030 kg |
Lead time
| Quantity (pieces) | Lead time (days) |
| 1 - 1000 | 10 |
| 1001 - 5000 | 15 |
| 5001 - 10000 | 25 |
| > 10000 | To be negotiated |
Price
| 5 - 999 pieces | US$1.52 |
| 1000 - 4999 pieces | US$1.33 |
| 5000 - 9999 pieces | US$1.28 |
| >= 10000 pieces | US$1.25 |
Quality Assurance: Strict adherence to ISO/IEC international standards ensures that products achieve industry-leading levels in weather resistance, signal stability, and other key indicators;
Global Service Network: Experienced engineers provide 24/7 technical support, real-time consultation, and troubleshooting. Our products are widely used in cutting-edge applications including 5G base stations, satellite communications, and smart IoT, with customers worldwide, covering 30 countries and regions in Europe, the Americas, Asia Pacific, and other regions.
