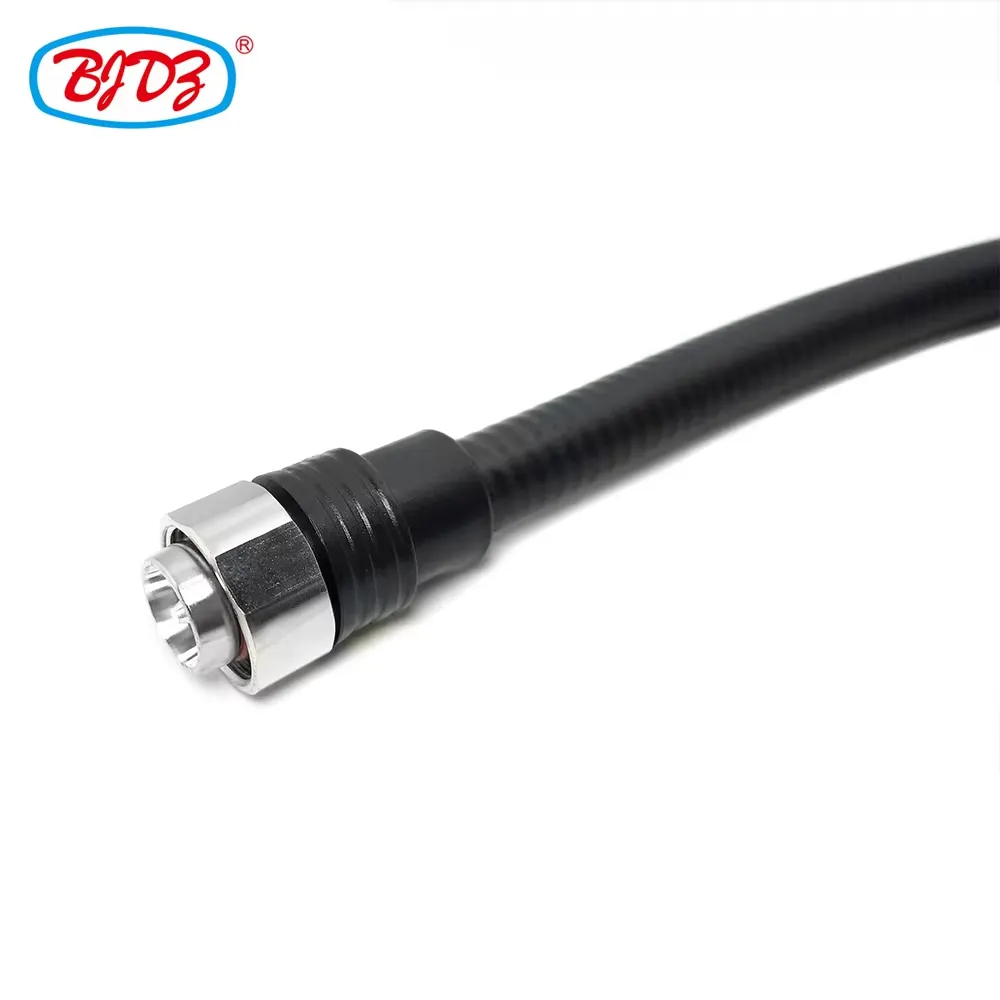

Premium 4.3-10 RF Jumper Cable Assembly for High-Frequency Connectivity
Engineered for reliability in demanding environments, this 4.3-10 Male to 4.3-10 Male RF jumper cable is the ideal solution for seamless signal transmission in 5G, DAS (Distributed Antenna Systems), and base station applications. Manufactured by Zhenjiang Binjiang Electronic Co., Ltd., a verified high-tech enterprise with strict quality control systems, this assembly combines the robust 4.3-10 connector with a 1/2" Super Flexible (Superflex) low-loss coaxial cable.
The 4.3-10 connector standard is renowned for its small size, low PIM (Passive Intermodulation), and superior performance in high-frequency bands. Paired with our high-conductivity copper-clad aluminum (CCS/CCA) center conductor and foam PE dielectric, this 2.5-meter pigtail ensures minimal signal attenuation and maximum power handling efficiency.
Key attributes
| Conductor Material | Copper |
| Insulation Material | PTFE |
| Jacket | PVC |
| Number of Conductors | 1 |
| Model Number | 4.3-10 male to 4.3-10 male for 1/2 super flexible cable |
| Cable Type | 1/2 super flexible cable |
| Brand Name | BJDZ |
| Place of Origin | Jiangsu, China |
| Application | RF |
| Plating | Nickel or Tri-Metal plated |
| Material | Copper |
| Insulator | PTFE/Plastic |
| Certificate | CE/FCC/ROHS/ISO9001:2015 |
| VSWR | 1.15+0.02f |
| Vibration | 98m/S2 (10~2000Hz), 10g |
| Frequency Range (MHz) | DC-12.4GHz(semi-rigid cable DC-18 GHz) |
| Max Voltage | 335V max |
| Temperature range | -55~+155°C (PE Cable -40~+85°C) |
| Input Impendence (ohm) | 50 |
| V.S.W.R | 1.15+0.02f |
| Vibration | 98m/S2 (10~2000Hz), 10g |
| Insertion Loss | ≤ 0.15dB/6GHz |
| Withstand Voltage | 1000V rms |
| Working Voltage | 335Vr.m.s at sea level |
| Insulation resistance | ≥5000mΩ |
| Max Input Power (w) | 50 |
| Contact resistance | Center Contact ≤3mΩ |
| Center conductor retention force | 450N |
| Durability | ≥ 500(cycles) |
| Contact resistance | CenterContact ≤3mΩ Outer Contact ≤2.5mΩ |
| Voltage Standing Wave Ratio | Straight ≤ 1.15/6GHz Right angle ≤ 1.25/6GHz |
Packaging and delivery
| Selling Units | Single item |
| Single package size | 111X10X10 cm |
| Single gross weight | 1.00kg |
Lead time
| Quantity (pieces) | Lead time (days) |
| 1 - 1000 | 10 |
| 1001 - 5000 | 15 |
| 5001 - 10000 | 25 |
| > 10000 | To be negotiated |
price
| 50 - 1999 pieces | $6.00 |
| 2000 - 4999 pieces | $5.50 |
| >= 5000 pieces | $4.50 |
Attribute | Specification |
Product Name | 4.3-10 Male to 4.3-10 Male RF Jumper Cable |
Cable Type | 1/2" Super Flexible Low Loss Coaxial Cable (Superflex) |
Cable Length | 2.5 meters (Custom lengths available) |
Connectors | 4.3-10 Male (Plug) on both ends |
Impedance | 50 Ohm |
Frequency Range | DC to 6 GHz (Typical) |
VSWR | ≤ 1.15 (Typical) |
Center Conductor | Copper Clad Aluminum / Copper Clad Steel |
Outer Jacket | UV Resistant Black Polyethylene (PE) |
Operating Temp | -40°C to +85°C |
Certifications | RoHS, CE, ISO9001 |

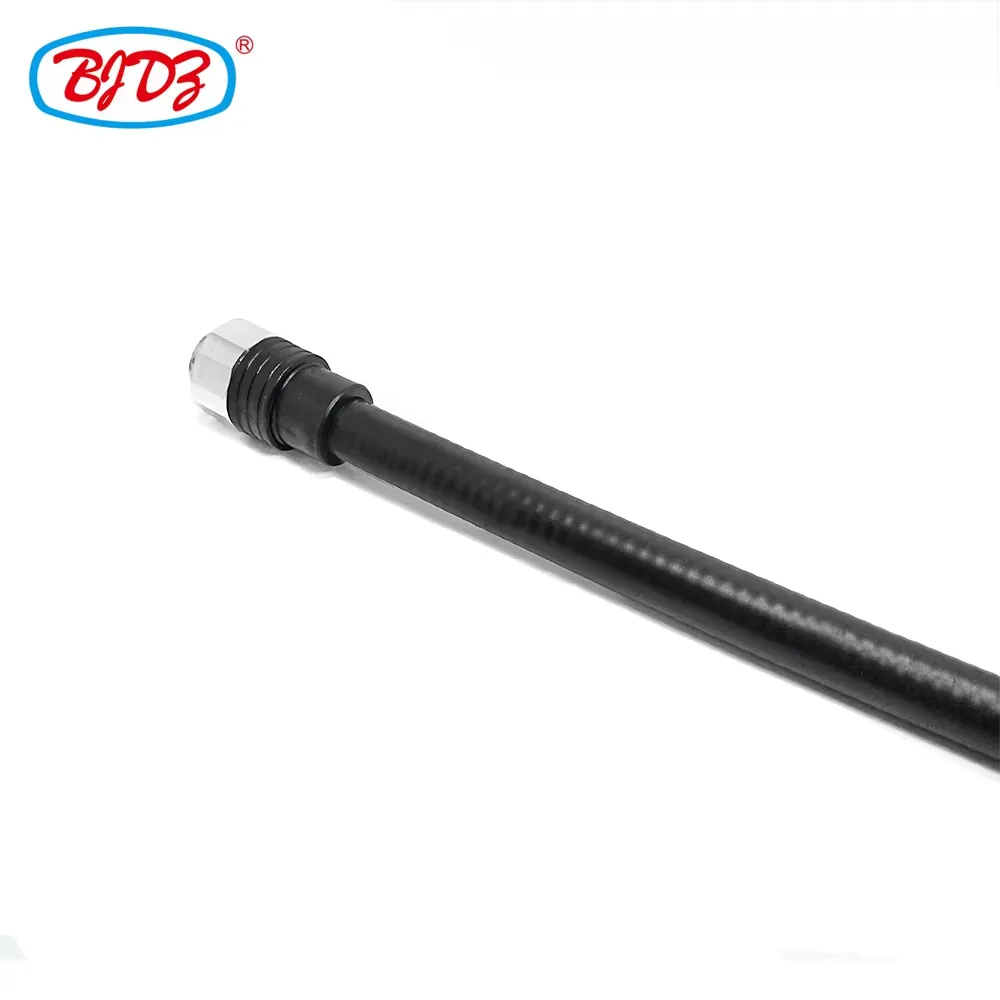

Image 1 (Main): High-resolution shot of the entire 2.5m cable laid out straight, highlighting the texture of the 1/2" Superflex jacket.

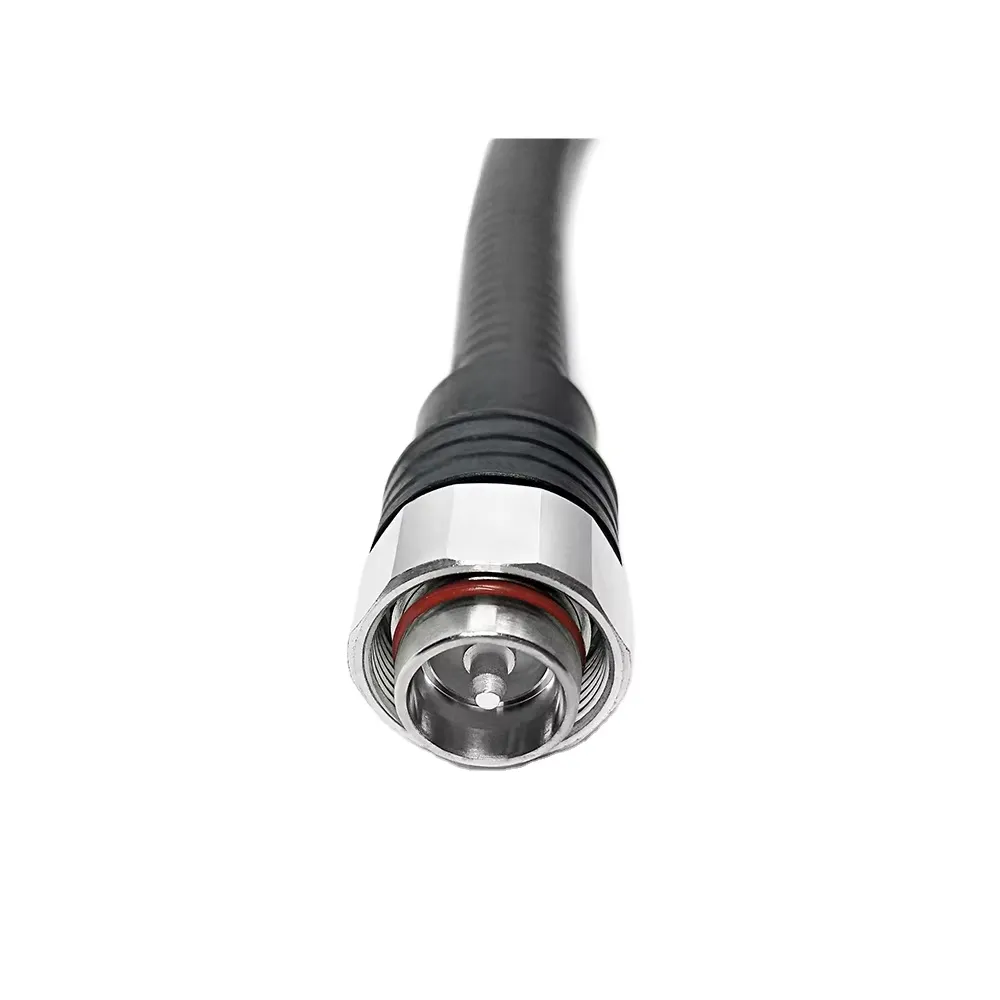

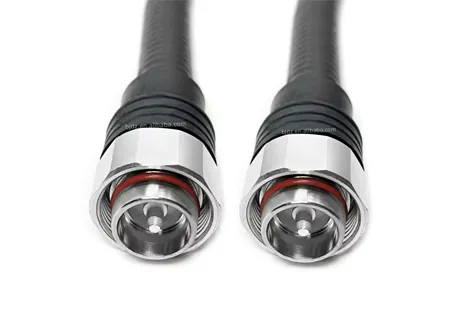

Image 2 (Close-up): Macro shot of the 4.3-10 Male connector, clearly showing the threading and the "4.3-10" laser marking to verify authenticity.
Image 3 (Detail): Cross-section diagram of the cable showing the layers: Foam Dielectric, Copper Clad Aluminum Center, and Braid Shielding.
Image 4 (Usage): The cable installed on a telecom antenna or cabinet to demonstrate real-world application.
This RF jumper cable is specifically designed for modern wireless communication infrastructure:
5G Base Stations: Connecting Remote Radio Units (RRUs) to antennas.
DAS Systems: Indoor signal distribution for large venues.
Broadcast & Microwave Links: High-frequency transmission lines.
Test & Measurement: Laboratory jumpering for high-frequency equipment.
Zhenjiang Binjiang Electronic Co., Ltd. is a leading manufacturer and supplier of microwave devices based in Jiangsu, China. With over 8 years of experience on the global market (Alibaba Gold Supplier), we specialize in R&D, production, and sales of high-quality RF components.
Core Competence: OEM/ODM services, drawing-based customization.
Quality Assurance: TÜV Rheinland inspected, ISO9001 certified factory.
Global Reach: Trusted by partners in North America, Europe, and Eastern markets.
Production Capacity: Advanced CNC machining centers and comprehensive testing labs ensure 100% product pass rates.
Call to Action (CTA)
While this 2.5m 4.3-10 jumper is a standard bestseller, we understand that every project has unique requirements. Whether you need a different length, a specific connector type (like N-Type or 7/16 DIN), or a custom packaging solution, our engineering team is ready to assist.
Contact us today for a free quote and sample!
(Note: This product is available for bulk purchase. MOQ may apply.)
