Assembly line: We have a professional assembly OEM production base that can provide you with high-quality RF and microwave component processing services.
Precision CNC machining: Using 4-axis and 5-axis CNC machine tools, precision machining can be carried out according to the requirements of different structures, ensuring the dual guarantee of mechanical and electrical performance of the product.

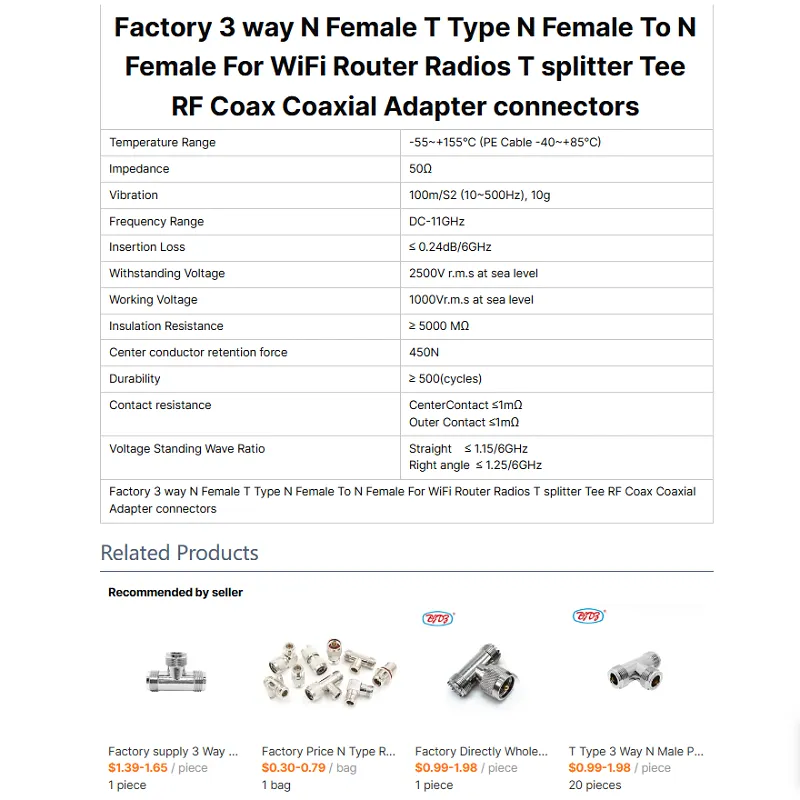

| Temperature Range | -55~+155°C (PE Cable -40~+85°C) |
| Impedance | 50Ω |
| Vibration | 100m/S2 (10~500Hz), 10g |
| Frequency Range | DC-11GHz |
| Insertion Loss | ≤ 0.24dB/6GHz |
| Withstanding Voltage | 2500V r.m.s at sea level |
| Working Voltage | 1000Vr.m.s at sea level |
| Insulation Resistance | ≥ 5000 MΩ |
| Center conductor retention force | 450N |
| Durability | ≥ 500(cycles) |
| Contact resistance | CenterContact ≤1mΩ Outer Contact ≤1mΩ |
| Voltage Standing Wave Ratio | Straight ≤ 1.15/6GHz Right angle ≤ 1.25/6GHz |

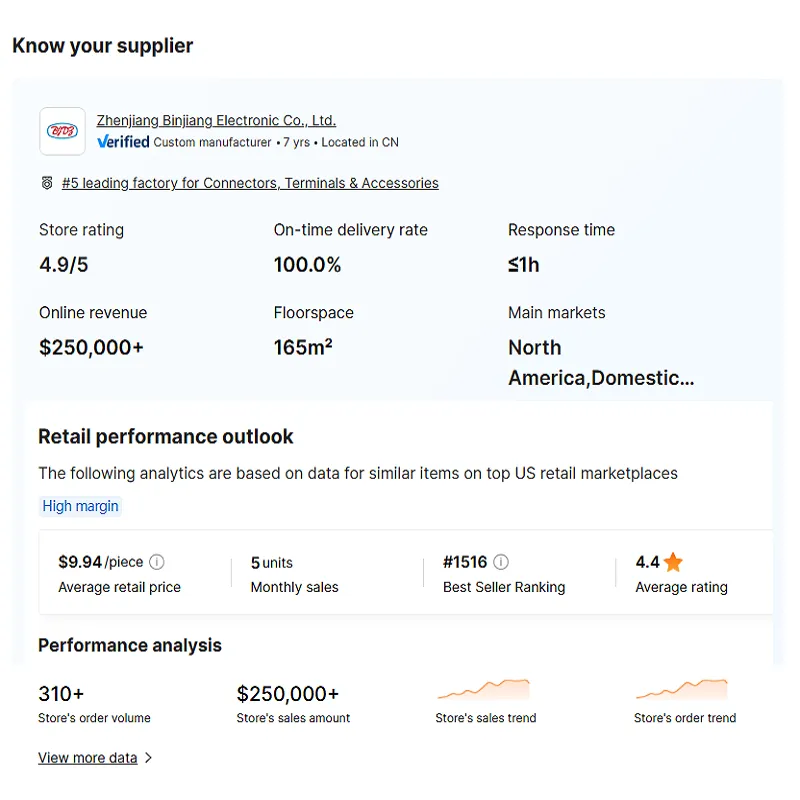

Zhenjiang Binjiang Electronic Co., Ltd.-RF technology expert,core business full range of RF products:adapter/connector/antenna/coaxial cable,customized services:OEM/ODM support,including fast sampling,testing optimization Top 500 enterprise suppliers with technological advantages,certified internationally,24-hour technical response,focusing on 5G/satellite communication fields,global services,product coverage in over 30 countries,and aerospace grade quality assurance Corporate vision:To drive the development of wireless communication technology through innovation.
