Modular Connectivity Platform
Engineered for next-gen RF systems, our configurable connector ecosystem bridges 6 industry-standard interfaces (SMA/SMB/BNC/TNC/MMCX/Fakra) with ultra-compact 1.13mm coaxial cable. Featuring gold-plated contacts and military-grade crimping, it delivers ≤0.2dB insertion loss across DC-12GHz for 5G microcells, drone avionics, and automated test equipment.
Key attributes
| Conductor Material | Copper |
| Insulation Material | PTFE |
| Jacket | PVC |
| Number of Conductors | 1 |
| Model Number | Custom |
| Cable Type | Custom |
| Brand Name | BJDZ |
| Place of Origin | Jiangsu, China |
| Application | RF |
| Plating | Nickel |
| Material | Copper |
| Insulator | PTFE/Plastic |
| Certificate | CE/FCC/ROHS/ISO9001:2015 |
| Length | Custom |
| Frequency Range (MHz) | DC-12.4GHz |
| Max Voltage | 335V max |
| Temperature range | -55~+155°C (PE Cable -40~+85°C) |
| Input Impendence (ohm) | 50 |
| V.S.W.R | 1.15+0.02f |
| Vibration | 100m/s2 (10~500Hz) |
| Withstand Voltage | 2500V r.m.s at sea level |
| Working Voltage | 1000Vr.m.s at sea level |
| Insertion Loss | ≤ 0.24dB/6GHz |
| Insulation resistance | ≥5000mΩ |
| Max Input Power (w) | 50 |
| Contact resistance | Center Contact ≤3mΩ |
| Center conductor retention force | 450N |
| Durability | ≥ 500(cycles) |
| Contact resistance | CenterContact ≤1mΩ Outer Contact ≤1mΩ |
| Voltage Standing Wave Ratio | Straight ≤ 1.15/6GHz Right angle ≤ 1.25/6GHz |
Lead time
| Quantity (pieces) | Lead time (days) |
| 1 - 1000 | 10 |
| 1001 - 5000 | 15 |
| 5001 - 10000 | 25 |
| > 10000 | To be negotiated |
Price
Custom
Any-Interface Adaptability
Mix/match SMA (6GHz), SMB (4GHz), BNC (4GHz), TNC (11GHz), MMCX (6GHz), Fakra (6GHz) terminations
Micro-Cable Performance
1.13mm OD cable with silver-plated Cu clad steel center conductor (0.4mm)
Vibration-Proof Security
Triple-lock mechanisms: Snap-on (MMCX), Threaded (TNC/SMA), Bayonet (BNC)
Corrosion Resistance
Nickel-plated brass bodies | Salt spray tested per MIL-STD-202G
Instant Deployment
Pre-assembled with strain relief | RoHS/REACH compliant
Parameter | Specification |
Cable Type | 1.13mm Mini Coaxial (PE insulated) |
Impedance | 50Ω ±1.5% |
Frequency Range | DC - 12 GHz |
VSWR | ≤1.20 @ 6GHz |
Operating Temp | -65°C to +165°C |
Dielectric | Gas-injected PTFE foam |
Shielding | 95% coverage braid + Al-Mylar tape |
Mating Cycles | 500+ (per IEC 60512) |
Interface | Gender Options | Max Freq | Key Application |

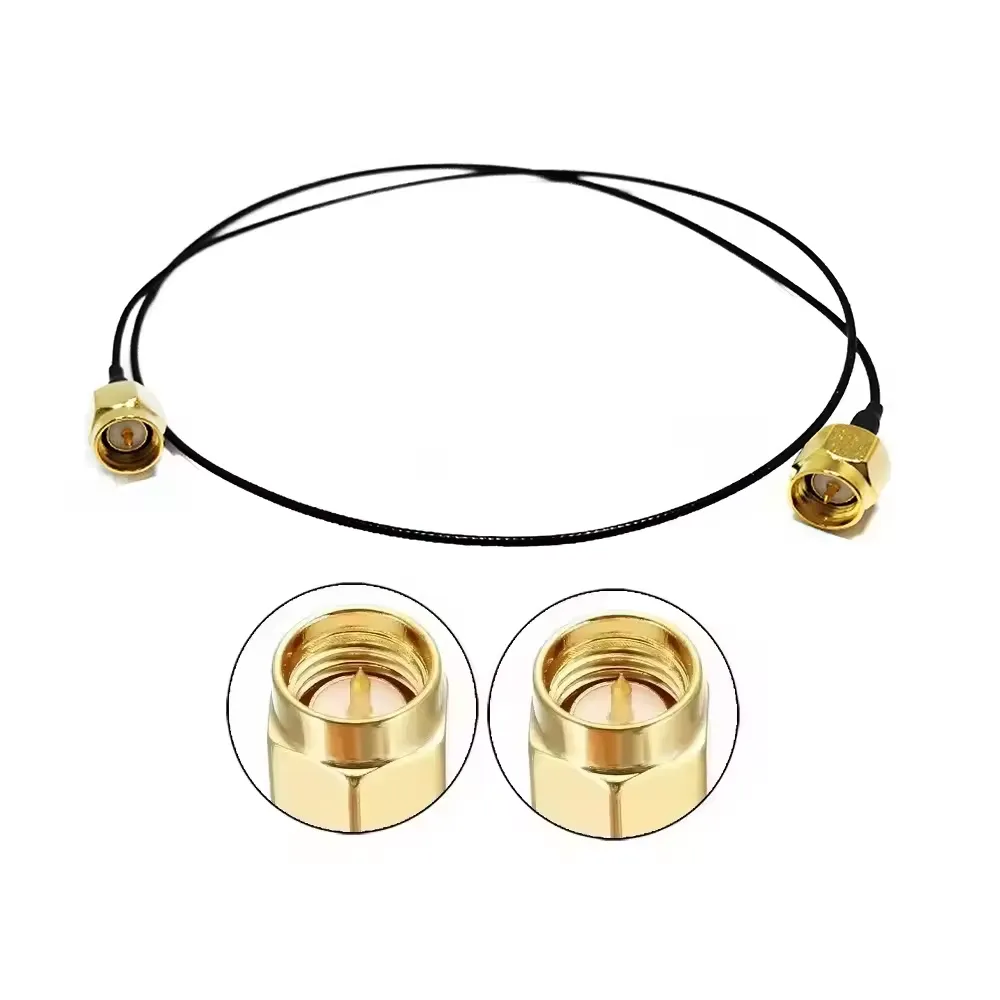

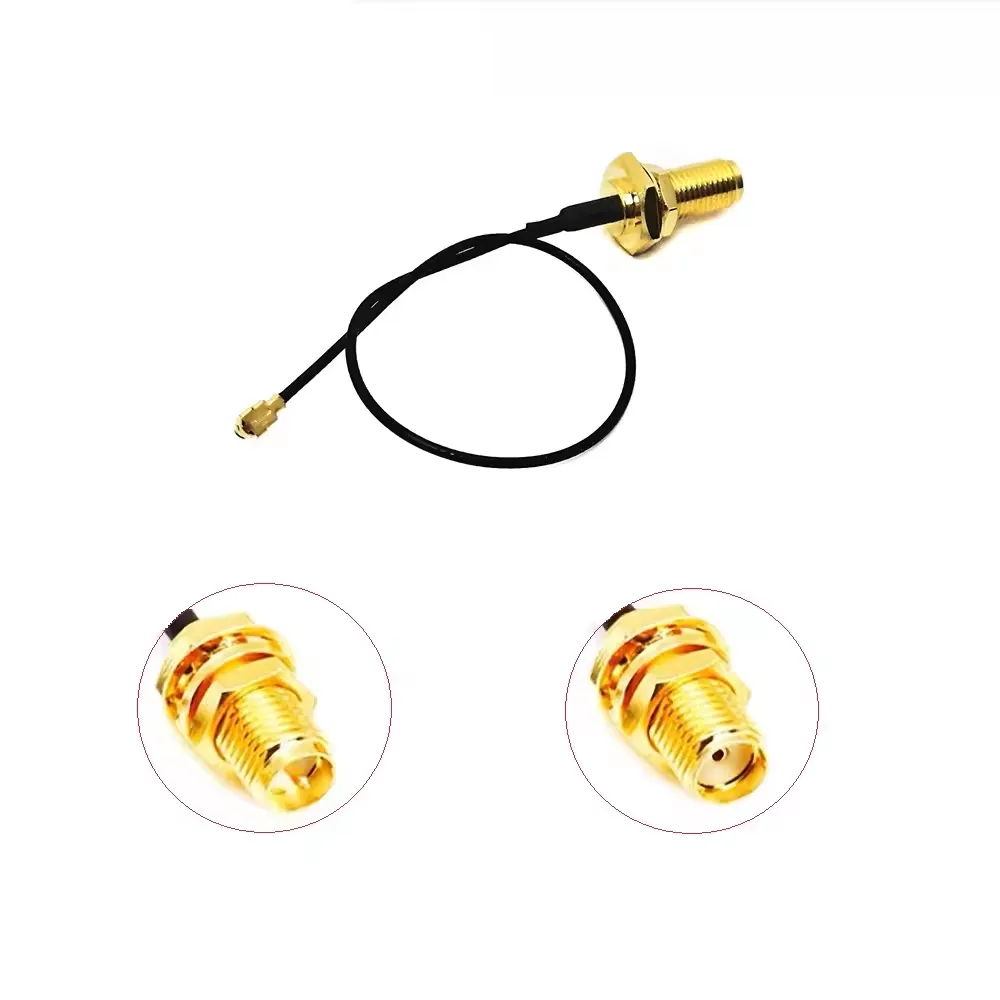

SMA | Male/Female | 6 GHz | RF test equipment |

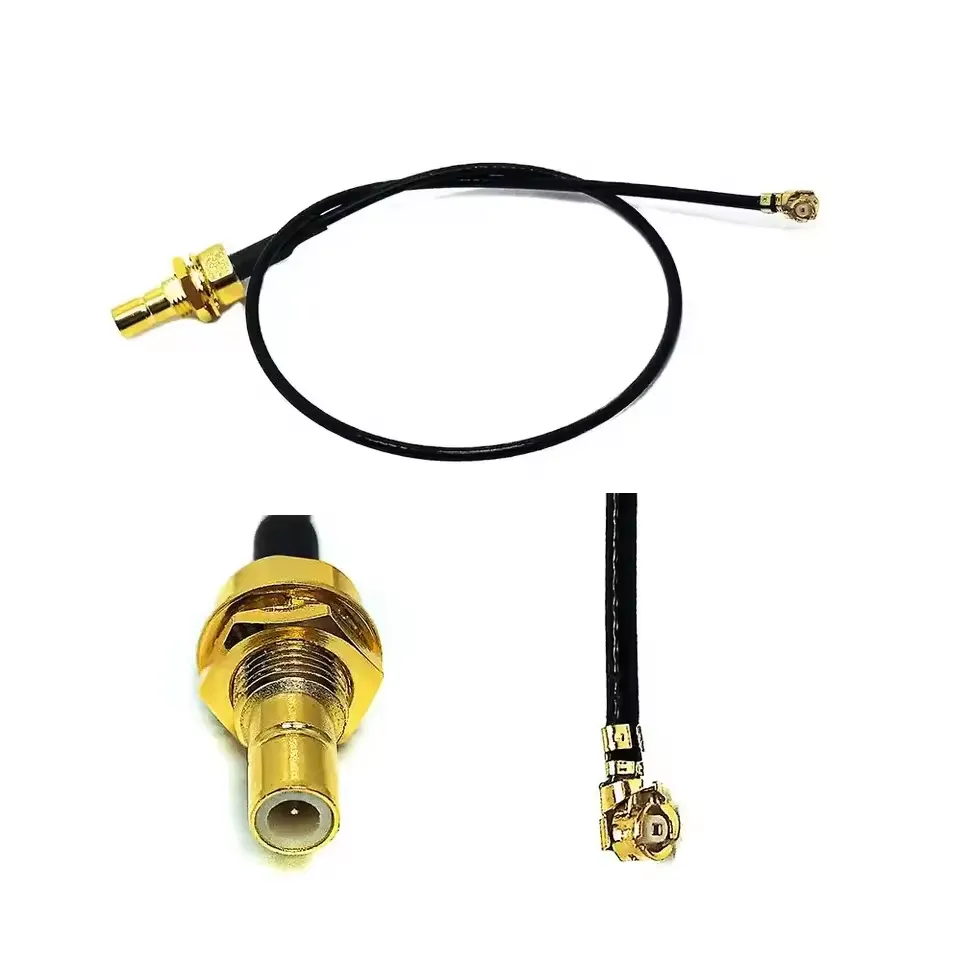

SMB | Male/Jack | 4 GHz | Telecom base stations |
BNC | Male/Female | 4 GHz | Broadcast video systems |
TNC | Male/Female | 11 GHz | Aerospace radar |

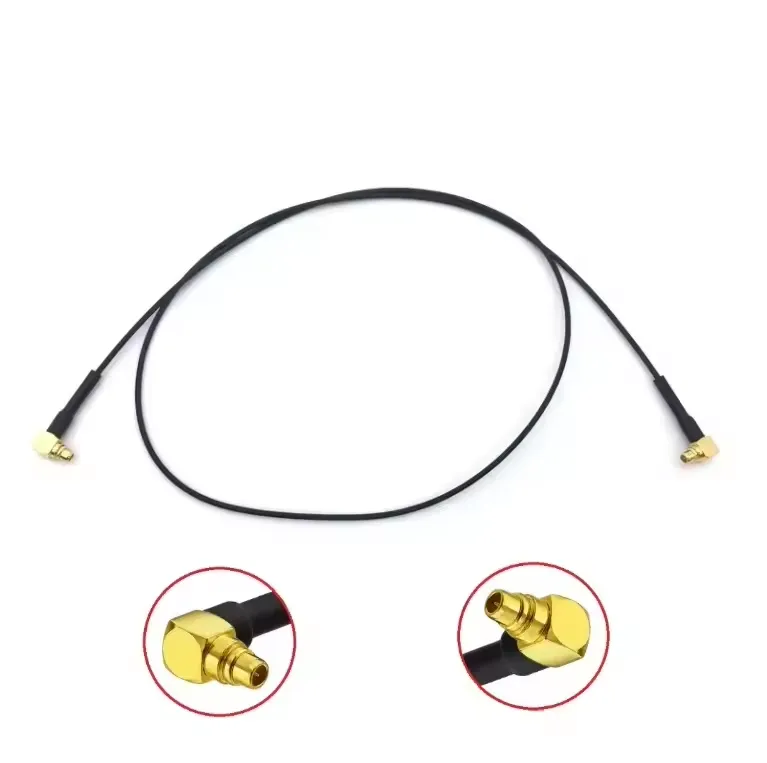

MMCX | Male/Jack | 6 GHz | IoT modules |

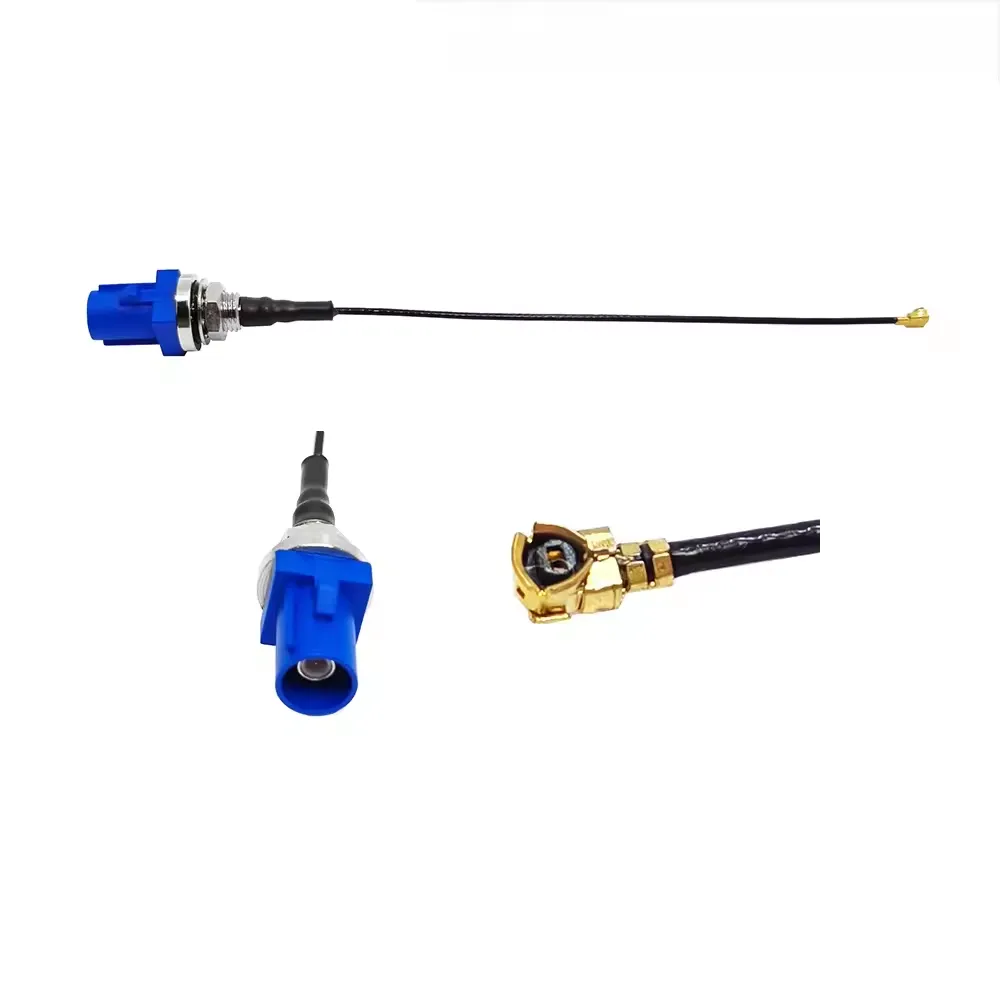

Fakra | Male/Z-type | 6 GHz | Automotive infotainment |
Telecom:
5G mmWave antennas | Small cell backhaul | Fiber optic converters
Defense:
UAV communication links | Electronic warfare systems
Automotive:
ADAS sensors | V2X modules | Battery management systems
Medical:
MRI coil interfaces | Wireless patient monitors
Industrial:
Robot arm control | Smart factory sensors
Signal Integrity Tests:
TDR impedance profiling (0.5ns resolution)
Phase stability ≤0.5°@6GHz
Environmental Tests:
Thermal cycling (-65°C ↔ +165°C, 100 cycles)
96hr humidity exposure (85°C/85% RH)
Mechanical Tests:
25N cable pull force (IEC 61169)
360° torsion endurance (200+ rotations)
Cable Lengths: 10cm to 5m (standard tolerance ±1mm)
Impedance Options: 50Ω/75Ω
Special Configurations:
IP67-rated versions
Right-angle connectors
Custom pin depths (±0.1mm control)
Contact engineering team for OEM drawings
