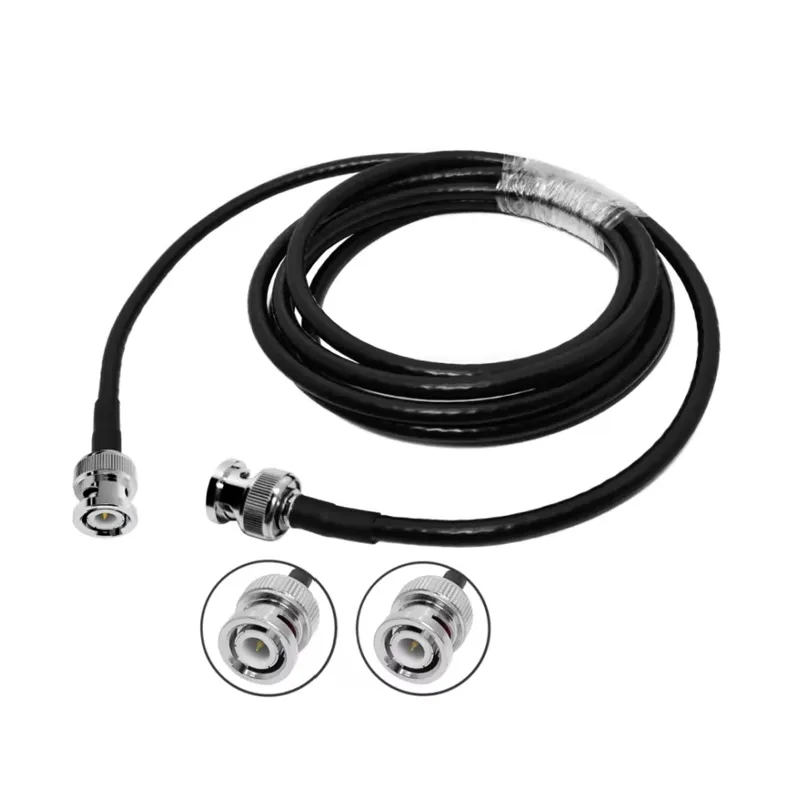

Designed for precision RF signal transmission, this factory-supplied RG223 RF pigtail jumper cable features robust construction with BNC Male connectors on both ends. Utilizing high-purity copper conductors and PTFE insulation, it ensures exceptional signal integrity, low loss, and durability across high-frequency applications. Ideal for critical systems in telecommunications, testing & measurement, aerospace, and industrial environments, this cable assembly combines reliability with flexible installation options. Available in standard and fully customizable configurations directly from the manufacturer.
Direct Factory Supply: Manufactured in-house for quality control and competitive pricing.
BNC Male to BNC Male Connectors: Gold-plated contacts for corrosion resistance and ≥500 mating cycles.
Solid Copper Conductor: Optimized for conductivity and signal stability.
PTFE (Polytetrafluoroethylene) Insulation: Low dielectric constant, high-temperature resistance, and excellent electrical stability.
Low-Loss Performance: Minimal signal attenuation across DC to 6 GHz frequencies.
50Ω Impedance Matching: Ensures compatibility with standard RF systems.
EMI/RFI Shielding: Braided shielding for interference immunity.
Flexible Cable Design: Easily routable in tight spaces without compromising performance.
Customizable Options: Lengths, connectors, labeling, and certifications available.
Physical & Electrical Specs
Parameter | Value |
Cable Type | RG223 |
Impedance | 50Ω ± 2Ω |
Connectors | BNC Male (Gold-Plated Contacts) |
Conductor | Solid Copper (Tinned) |
Dielectric | PTFE |
Jacket | PVC (Flame-Retardant) / Optional LSZH |
Frequency Range | DC - 6 GHz (Typical) |
Insertion Loss (1 GHz) | ≤ 0.3 dB/m (Subject to Length) |
VSWR | ≤ 1.25:1 (DC - 3 GHz) |
Operating Temperature | -40°C to +85°C (Continuous) |
Environmental & Mechanical Specs
Property | Specification |
Flexibility | High (≥ 10x OD Bend Radius) |
Durability | ≥ 500 Mating Cycles |
Shielding Efficiency | ≥ 90 dB |
Protection Rating | IP67 (Optional, Waterproof) |
RoHS/REACH Compliance | Yes |
Certifications | MIL-C-17, ISO 9001 (Factory) |
Telecommunications: Base Station Feeds, Antenna Connections, RF Distribution Systems.
Test & Measurement: Signal Generators, Network Analyzers, Spectrum Analyzers.
Aerospace & Defense: Radar Systems, Avionics, Satellite Communications.
Industrial Automation: PLCs, Robotics, High-Speed Data Transmission.
Broadcasting & Media: Audio/Video RF Links, Studio Equipment.
Superior Signal Integrity: PTFE insulation reduces attenuation and phase shift.
Corrosion-Resistant: Gold-plated connectors for harsh environments.
Cost-Effective: Factory-direct supply eliminates intermediaries.
Rapid Customization: Flexible MOQs and fast lead times for prototypes/mass production.
Full Traceability: ISO-certified manufacturing with material certifications.
Q1: Can the cable be customized for outdoor use?
Yes. Options include UV-resistant jackets, IP67 connectors, and extended temperature ranges (-55°C to +105°C).
Q2: What is the minimum order quantity (MOQ)?
Standard products: 1 unit. Custom orders: MOQ negotiable based on requirements.
Q3: Are samples available?
Yes. Contact us for sample requests with detailed application specs.
Q4: Can connectors be changed (e.g., SMA, N-Type)?

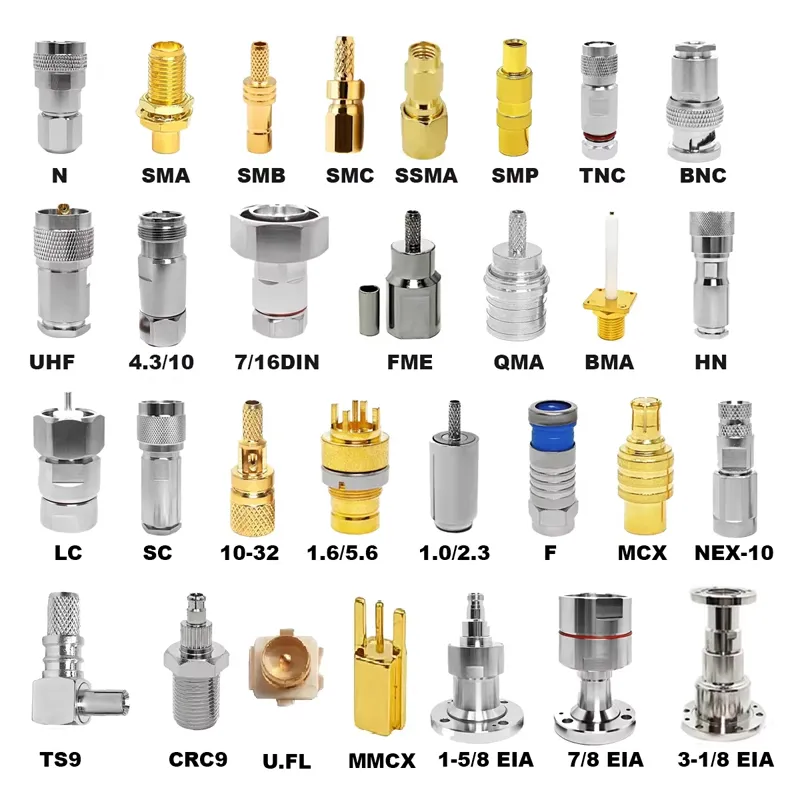

Absolutely. We support all major RF connector types and hybrid assemblies.
Q5: What is the typical lead time?
Stock items: 1-3 days. Custom orders: 5-7 days (negotiable for urgent needs).
Design & Engineering Support: Impedance matching, shielding optimization.
Material Customization: Conductor types (solid/stranded), jacket materials.
Testing & Validation: VSWR, insertion loss, environmental stress testing.
Branding & Packaging: Private labeling, custom boxes, and logistics solutions.
Provide the following for a tailored proposal:
Desired length(s)
Connector configurations
Environmental requirements
Quantity
Special certifications (e.g., MIL-SPEC)
Contact our engineering team for instant assistance.
Specifications subject to verification for custom requests.
Images and diagrams not included as requested. Contact us for technical drawings.
