Organization: Cable components help achieve clean and orderly wiring, simplify maintenance and troubleshooting work, and save time and resources.
Team R&D Strength: The company integrates independent product technology development and application, attaches importance to independent intellectual property rights, always adheres to independent R&D and continuous innovation, continuously strengthens its own technology investment, and provides professional and reliable products and supporting services for the RF communication industry.
| Key attributes | |
| Conductor Material | Copper |
| Insulation Material | PTFE |
| Jacket | PVC |
| Number of Conductors | 1 |

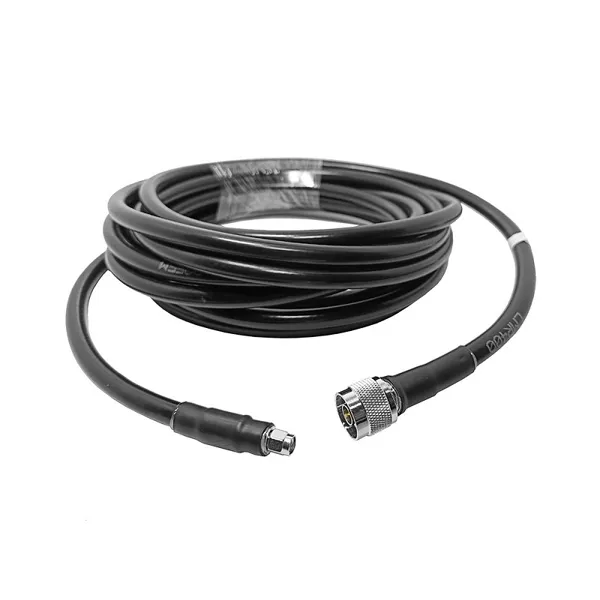

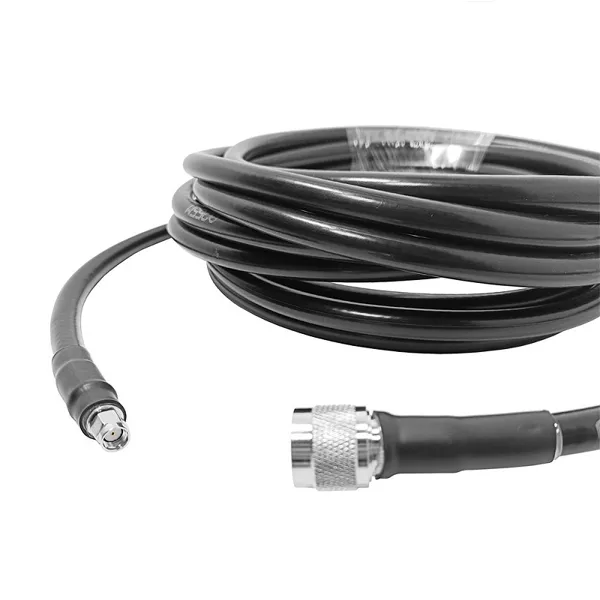

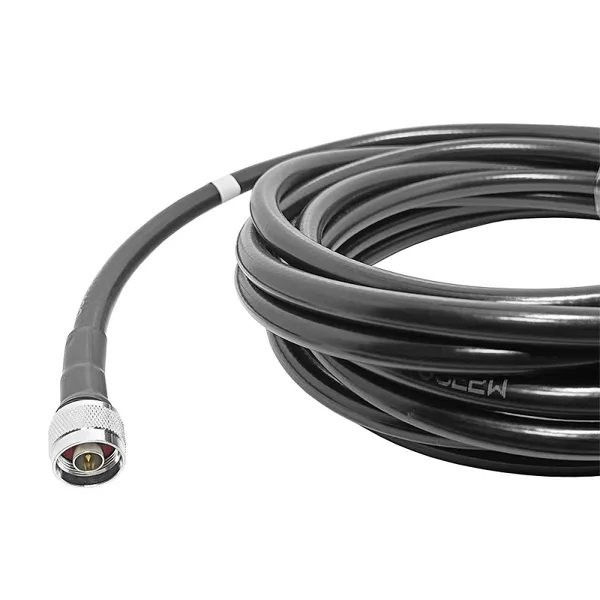

| Model Number | RP SMA Male to N male for LMR400 Cable Assembly |
| Cable Type | 1/4" Superflex Cable |
| Brand Name | BJDZ |
| Place of Origin | Jiangsu, China |
| Application | RF |
| Plating | Gold or Nickel |
| Material | Copper |
| Insulator | PTFE/Plastic |
| Capacitance (Pf/M) | 96.45 |
| Impedance (Ohm) | 50 |
| Insertion Loss | ≤ 0.24dB/6GHz |
| Vibration | 100m/S2 (10~500Hz), 10g |
| Velocity(%) | 70 |
| Shielding | 13 |
| Max. Oper. Voltage (VMS) | 1200 |
| Operating Temp. (℃) | -55 to 200 |
| Connector 1 | SMA |
| Connector 2 | N |
| Certificate | CE/FCC/ROHS/ISO9001:2000 |
| Frequency Range (MHz) | DC~11GHz |
| V.S.W.R | ≤1.20+0.003f |
| Withstand Voltage | 1000V rms |
| Insulation resistance | ≥5000mΩ |
| Contact resistance | Center Contact ≤3mΩ |
| Center conductor retention force | 450N |
| Durability | ≥ 500(cycles) |
| Contact resistance | Center Contact ≤1mΩ Outer Contact ≤1mΩ |
| Voltage Standing Wave Ratio | Straight ≤ 1.15/6GHz Right angle ≤ 1.25/6GHz |
| Packaging and delivery | |
| Selling Units | Single item |
| Single package size | 35X35X5 cm |
| Single gross weight | 1.00kg |
| Lead time | |
| Quantity (pieces) | Lead time (days) |
| 1 - 1000 | 10 |
| 1001 - 5000 | 15 |
| 5001 - 10000 | 25 |
| > 10000 | To be negotiated |
| Price | |
| 5 - 499 pieces | $5.68 |
| 500 - 4999 pieces | $5.58 |
| 5000 - 9999 pieces | $5.28 |
| >= 10000 pieces | $5.00 |
1. Our company has a group of high-precision and advanced professional RF technology developers, and a deep understanding of RF technology theory and application is the core part of current technology.
2. Binjiang Electronics is a high-tech private company that integrates research and development, production, and sales. By continuously innovating core technologies and leading advantages in segmented fields, we focus on providing a full range of signal interconnection products, solutions, and services to core customers in multiple industries and fields worldwide.
