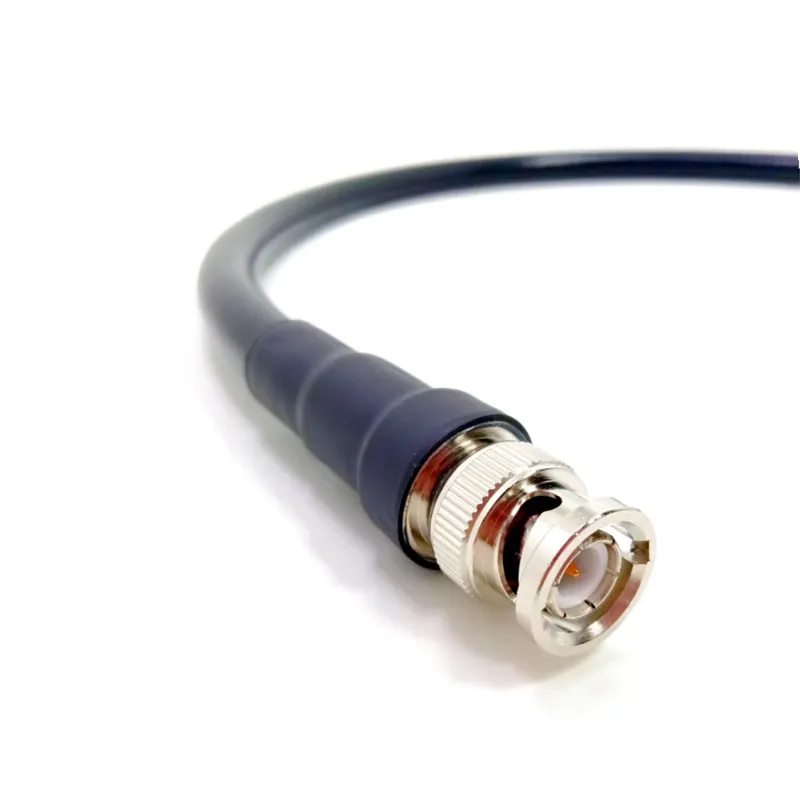

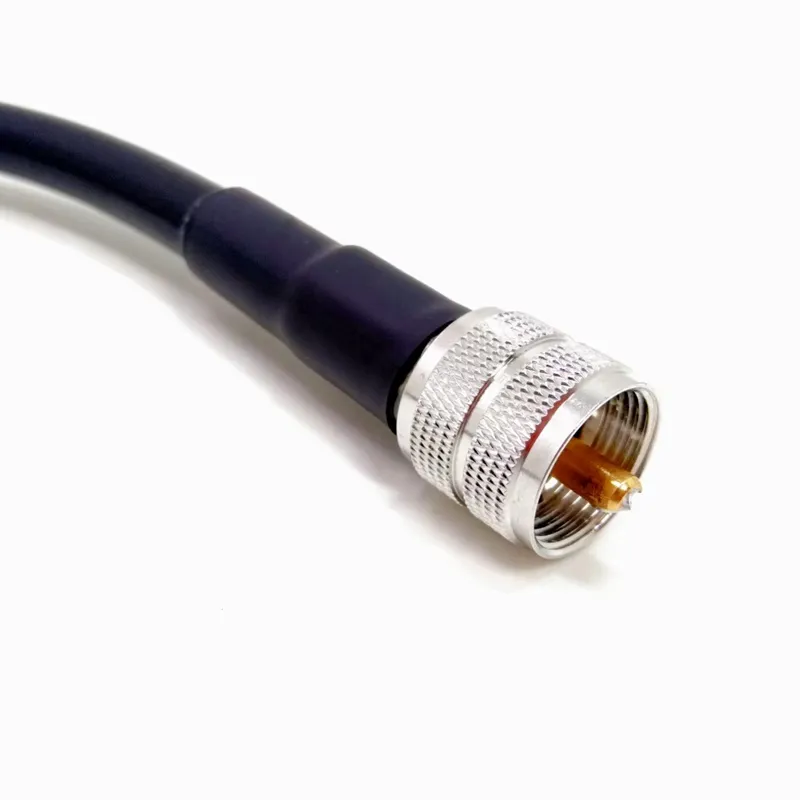

Designed for robust RF signal transmission in critical applications, this LMR400-based RF jumper cable assembly combines the low-loss performance of LMR400 coaxial cable with industry-standard BNC Male and UHF PL-259 (PL259) Male connectors. Ideal for bridging RF equipment in broadcast antennas, base stations, test & measurement systems, and industrial automation, this assembly offers exceptional flexibility and durability. The solid copper center conductor ensures superior conductivity and power handling, while the LMR400 cable’s flexible foam polyethylene (FPE) dielectric maintains signal integrity across a wide frequency range.
Parameter | Specification |
Impedance | 50 Ω |
Connectors | BNC Male (Body: Brass/Gold-Plated) + UHF PL-259 Male (Brass/Gold-Plated) |
Cable Type | LMR400 (FPE Foam Dielectric, Solid Copper Construction) |
Center Conductor | Solid Copper (0.405" Diameter) |
Dielectric | Foam Polyethylene (FPE) - Low Loss, High Flexibility |
Shielding | Double Shield: Copper Braid (95%) + Aluminum Foil |
Outer Diameter (OD) | 8.13 mm (0.320 inches) |
Frequency Range | DC to 4.3 GHz |
VSWR | ≤ 1.15:1 (Typical) |
Insertion Loss | ≤ 0.34 dB/ft @ 1 GHz |
Power Handling | 3.2 kW @ 1 GHz (Continuous Wave) |
Temperature Range | -40°C to +85°C |
Bend Radius | Dynamic: 25x OD |
High-Power Capability: Solid copper conductor and LMR400’s low-loss dielectric support high-power RF transmission with minimal attenuation.
Industry-Standard Connectors: BNC Male and UHF PL-259 ensure compatibility with legacy and modern RF equipment.
Superior Flexibility: LMR400’s FPE dielectric allows tight bends without sacrificing performance, ideal for congested installations.
Robust Shielding: Dual-layer shielding (copper braid + aluminum foil) provides >95% coverage, minimizing EMI/RFI interference.
Gold-Plated Contacts: Corrosion-resistant connectors with low contact resistance for reliable mating cycles.
Customizable Lengths: Available in standard lengths or fully customizable per request (MOQ applies).
Broadcast & Telecom: Antenna feeds, transmitter links, and satellite systems.
Test & Measurement: Connecting RF generators, analyzers, and attenuators.
Industrial Control: Radar systems, telemetry, and process monitoring equipment.
Military & Defense: Field communications, tactical radios, and aerospace avionics.
Marine & Maritime: Ship-to-shore radios and navigation systems.
100% VNA Testing: Each cable is validated for insertion loss, VSWR, and impedance continuity.
MIL-STD Compliance: Connectors meet military-grade durability standards for shock and vibration.
Environmental Testing: Verified for temperature extremes (-40°C to +85°C) and humidity resistance.
Crimp Integrity: Automated crimping ensures consistent mechanical strength exceeding 100 lbs pull force.
Traceability: Serialized labels track cable specs and test data for quality control.
Standard Lengths: 1ft, 3ft, 6ft, 10ft, 20ft (others available upon request).
Customization: Accepts mixed-connector configurations, labels, and protective boots.
Packaging: Reel-wound (bulk) or individually bagged with static shielding.
Lead Time: 1–3 days for stock items; 5–7 days for custom orders.
MOQ: 10 units for custom lengths, 1 unit for stock items.
Q1: Can this cable replace RG8 cables?
A: Yes. LMR400 offers similar specs to RG8 but with better flexibility and lower loss at higher frequencies.
Q2: Is outdoor exposure possible?
A: Yes, with weatherproof jackets (optional) or connector sealing. LMR400’s jacket resists UV and moisture.
Q3: What’s the maximum bend radius?
A: Avoid < 25x OD (dynamic) or < 50x OD (static) bends to prevent damage.
Q4: Are female connectors available?
A: Yes. Request custom assemblies with BNC Female/UHF Female connectors.
Avoid Over-Tightening: Use recommended torque for threaded connectors (BNC: 0.5–0.7 N·m).
Grounding: Connect shields to chassis ground to prevent EMI loops.
Route Protection: Use cable ties or conduit to prevent abrasion.
Store Coiled: Keep unused cables loosely coiled to maintain flexibility.
Note: Specifications subject to change. Always refer to product datasheet for critical applications.
