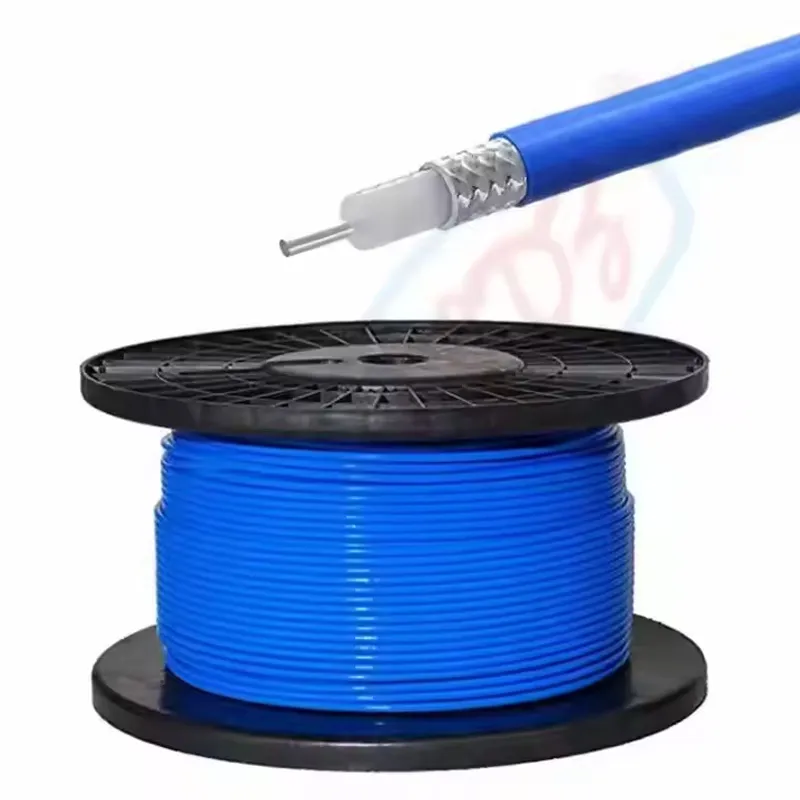

This is a 047 Semi-rigid coax cable that is formable,50 Ohm and has a PTFE dielectric.has a shield count of 1 and the maximum frequency for this cable is 20 GHz,attenuation at 1 GHz of 36 dB and a maximum power of 32 watts at 1 GHz.047 Semi-rigid coax cables are part of over 40,000 RF, microwave and millimeter wave components.
| Structure parameters | ||
| Item | Material | Diamenter (mm) |
| Inner Conductor | Copper clad steel | 0.28 |
| Dielectric | PE | 0.86 |
| Outer Conductor | Tin plated copper wire weaving | 0 |
| Jacket | PVC | 1.2 |
| Performance parameters | ||
| Capacitor | 104.99pF/m | |
| Impedance | 50ohm | |
| Transmission rate | 70% | |
| Cut-off frequency | 20GHz | |
| Inner Conductor DC Resistance | 207 Ohm | |
| Working temperature range | -40～+100℃ | |
| Bending radius | 40mm | |
| ROHS/CE/FCC | YES | |
| Frequency | 0.5GHz | 82.02dB/100m |
| 1GHz | 118.11dB/100m | |
| 3GHz | 213.25dB/100m | |
When choosing a suitable flexible coaxial cable, several key factors need to be considered. Firstly, the frequency range of the cable should be ensured to meet the specific application requirements. Next is the flexibility of the cable. For applications that require frequent bending or movement, models with better flexibility should be selected. Shielding performance is also an important consideration, especially in environments with strong electromagnetic interference. Good shielding can effectively protect signal quality.
