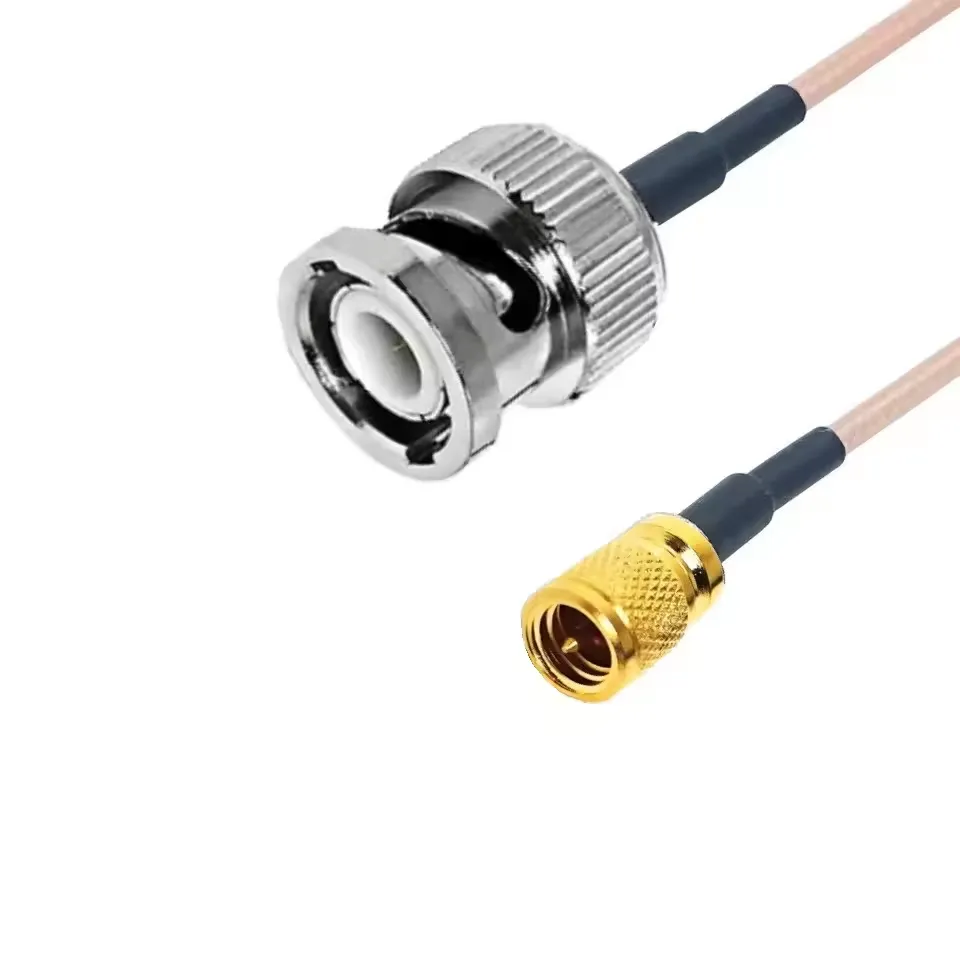

Ensure precise and reliable signal transmission for your non-destructive testing equipment with our BNC Male to 10-32 Microdot M5 Cable Assembly. Specifically engineered for Ultrasonic NDT flaw detectors and TOFD systems, this pigtail cable utilizes high-frequency RG178 coaxial cable to deliver exceptional signal integrity. As a direct factory supplier with automated production lines, we guarantee strict quality control, fast lead times, and fully customizable solutions for your testing needs.
Cable Type: RG178 Coaxial Cable (High-Frequency, Flexible)

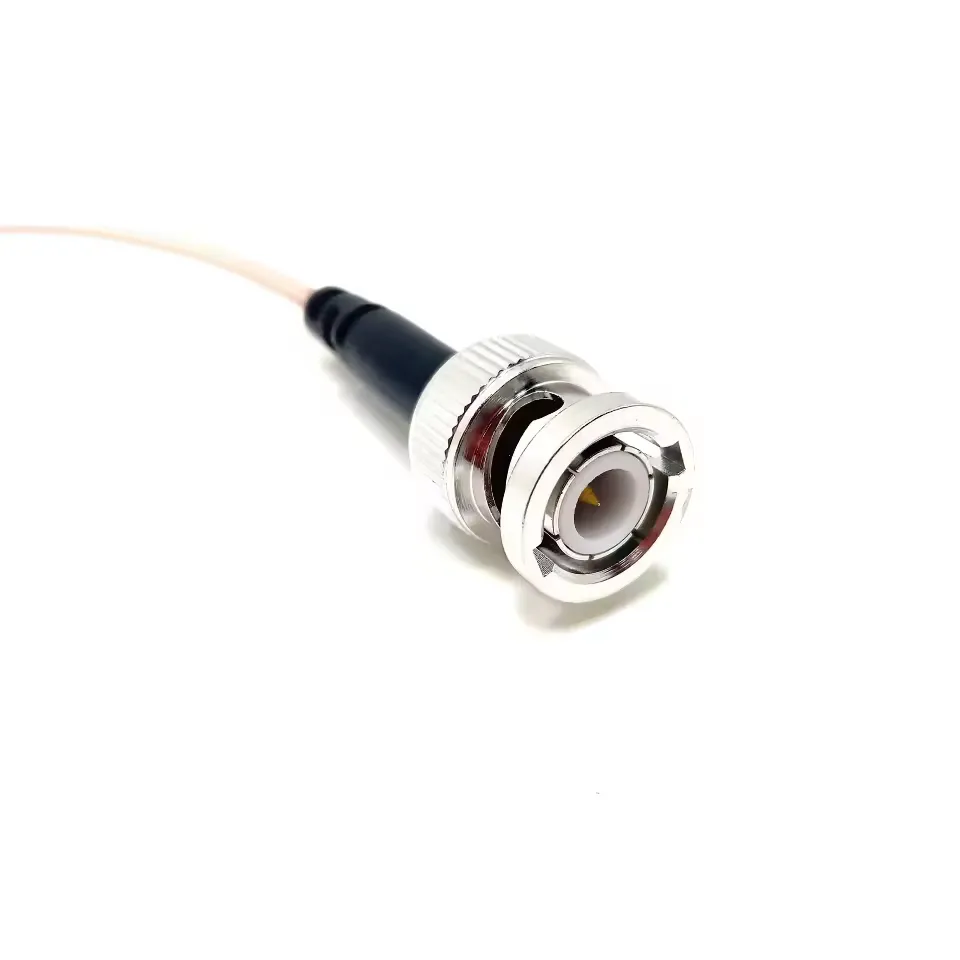

Connector A: BNC Male Plug (Standard Interface for NDT Instruments)
Connector B: 10-32 Microdot M5 Plug (Precision Interface for Ultrasonic Probes)
Impedance: 50 Ohm
Frequency Range: DC to 3 GHz (Typical for RG178)
VSWR: ≤ 1.25 (Typical)
Shielding: High-density Braided Shielding (Excellent EMI Protection)
Jacket: High-Temperature Fluorine-based Polymer (Durable & Flexible)
Customization: Fully supports OEM/ODM (Custom Lengths, Angles & Colors)
Precision Engineered for Ultrasonic NDT
Our BNC to 10-32 Microdot M5 Cable Assembly is purpose-built for the demanding environment of Non-Destructive Testing (NDT). The 10-32 Microdot connector is the industry-standard interface for high-precision ultrasonic probes, while the BNC male plug seamlessly connects to most flaw detectors and TOFD instruments. This cable ensures accurate signal translation, helping you detect hidden cracks, voids, and structural discontinuities with confidence.
High-Frequency Performance with RG178 Coax
Built with premium RG178 coaxial cable, this pigtail assembly excels in high-frequency signal transmission. The fluorine-based polymer jacket not only provides excellent temperature resistance but also ensures the cable remains highly flexible, making it easy to route in tight or complex testing setups. The robust braided shielding significantly reduces electromagnetic interference (EMI), maintaining a clean and stable signal for precise flaw detection.
Factory-Direct Quality & Automation
Located in Zhenjiang, Jiangsu, our factory operates 4 fully automated production lines and utilizes professional ERP systems to ensure every cable meets rigorous standards. With 5 dedicated QC inspectors, every single assembly undergoes 100% RF continuity and VSWR testing before shipment. Trusted by Fortune 500 partners like Honeywell and Amphenol, we deliver industrial-grade reliability for your critical testing equipment.
Rapid Lead Times: Leverage our "Small Batch, Fast Delivery" model. Stock items ship the same day; bulk orders are ready in just 15 days.
Free Samples for Evaluation: We provide free samples and detailed datasheets so you can test the signal stability and connector fitment risk-free.
24-Hour CAD Drawings: Need a custom length or specific wiring configuration? Our R&D engineers provide precise CAD drawings within 24 hours.
Price Protection: Lock in your pricing with advance payment—completely immune to raw material price fluctuations.
Ultrasonic Flaw Detection: Connecting portable UT flaw detectors to contact and dual-element probes
TOFD Systems: Time-of-Flight Diffraction testing for weld inspection
Thickness Gauging: Precision measurement of structural components
Industrial Automation: Signal transmission for ultrasonic sensors in complex machinery
Standard Packaging: Individual PE bags with anti-static protection, packed in sturdy export cartons.
Custom Packaging: Available upon request (Branding, Logo, Retail Box).
Lead Time: 1-3 days for samples; 7-15 days for bulk orders.
Shipping: Optimized logistics paths with professional customs clearance. DHL/FedEx/UPS/TNT available.
Q1: Can I get a sample of this BNC to Microdot cable for my flaw detector?
A: Yes! We offer free samples for technical evaluation. We want you to verify the signal quality and connector compatibility with your specific NDT equipment before placing a bulk order.
Q2: Do you support custom lengths and OEM services?
A: Absolutely. We specialize in "Small Batch, Multi-style" orders. Whether you need a specific pigtail length or custom branding, our automated lines can handle it efficiently.
Q3: Is this cable compatible with Olympus or other major NDT brands?
A: Yes, the BNC to 10-32 Microdot configuration is a universal standard widely used by major ultrasonic testing equipment manufacturers, including Olympus, for connecting probes to flaw detectors.
Q4: Are your products tested before shipment?
A: Yes, we have 5 dedicated QC inspectors. All cable assemblies undergo 100% RF continuity and VSWR testing using professional detection equipment to ensure zero defects.
Zhenjiang Binjiang Electronic Co., Ltd.
Located in Zhenjiang, Jiangsu (near Shanghai Port), we are a Gold Supplier on Alibaba with a strong presence in North American and Eastern European markets. With a 465㎡ facility, 20+ professional production devices, and TÜV Rheinland certification, we are your reliable partner for high-performance RF and ultrasonic coaxial cable assemblies.
Need a reliable cable supplier for your NDT equipment?
Contact us today for a competitive quote. March Promotion: Enjoy storewide discounts!
