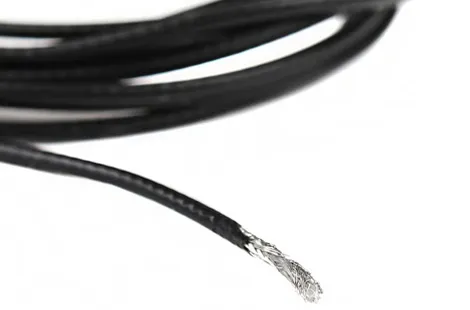

Micro coaxial cables, as an important signal transmission medium, play a crucial role in various fields such as communication, monitoring, broadcasting, and data centers. Its excellent electrical performance and flexible application characteristics make it an indispensable component of modern technology.
| Structure parameters | ||
| Item | Material | Diamenter (mm) |
| Inner Conductor | Silver plated copper wire | 0.102 |
| Dielectric | FEP | 0.88 |
| Outer Conductor | Silver plated copper wire weaving | 1.1 |
| Sheath | FEP | 1.37 |
| Performance parameters | ||
| Capacitor | 96pF/m | |
| Impedance | 50ohm | |
| Transmission rate | 70% | |
| Operating Frequency | 6Ghz | |
| Maximum working voltage | 1000Vrms | |
| Working temperature range | -55～+200℃ | |
| Bending radius | 4mm | |
| ROHS/CE/FCC | YES | |
| Decay | 1GHz | 1.6dB/m |
| 2GHz | 2.3dB/m | |
| 3GHz | 2.9dB/m | |
Zhenjiang Binjiang Electronic Co., Ltd.-RF technology expert, core business full range of RF products:adapter/connector/antenna/coaxial cable, customized services: OEM/ODM support, including fast sampling, testing optimization Top 500 enterprise suppliers with technological advantages, certified internationally, 24-hour technical response, focusing on 5G/satellite communication fields, global services, product coverage in over 30 countries, and aerospace grade quality assurance Corporate vision: To drive the development of wireless communication technology through innovation.
