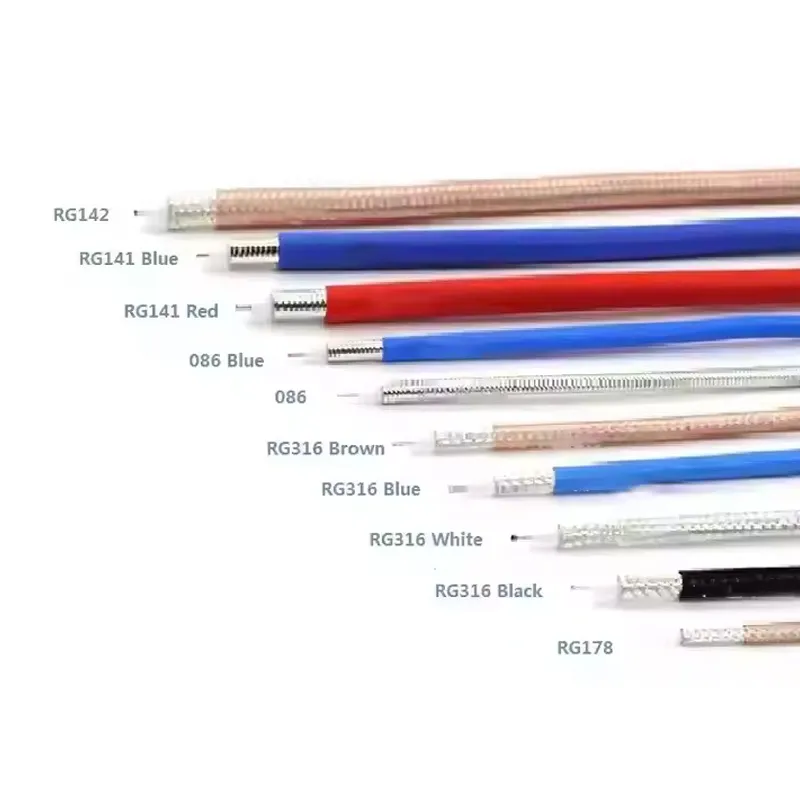

RG-316 is a 50 ohm coaxial cable that performs excellently in high-frequency, miniaturized, and high flexibility demand scenarios. It is used for testing and measurement, microwave interconnection, internal wiring of equipment GPS、 RF connections that require high temperatures or frequent bending are very popular. When choosing it, it is necessary to weigh its advantages in small size/flexibility/high-frequency performance against the limitations of higher losses (not suitable for long distances) and lower power capacity.
| Structure parameters | ||
| Item | Material | Diamenter (mm) |
| Inner Conductor | copper wire | 7*0.175 |
| Dielectric | PE | 1.52 |
| Outer Conductor | Single layer bare copper wire weaving | Nom.1.95 |
| Jacket | PVC | 2.5 |
| Performance parameters | ||
| Capacitor | 96.4pF/m | |
| Impedance | 50ohm | |
| Transmission rate | 70% | |
| Maximum operating voltage | 1.2KVrms | |
| Maximum operating frequency | 3000MHz | |
| Working temperature range | -55～+200℃ | |
| Bending radius | 13mm | |
| ROHS/CE/FCC | YES | |
| Frequency | 100MHz | 0.262dB/m |
| 400MHz | 0.531dB/m | |
| 1000MHz | 0.856dB/m | |
| 3000MHz | 1.532dB/m | |
